HNK NT 10/12F CNC 2 AXIS VERTICAL BORING MILL
Have one to sell?
ConditionUsed
1 available

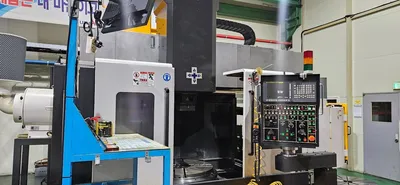

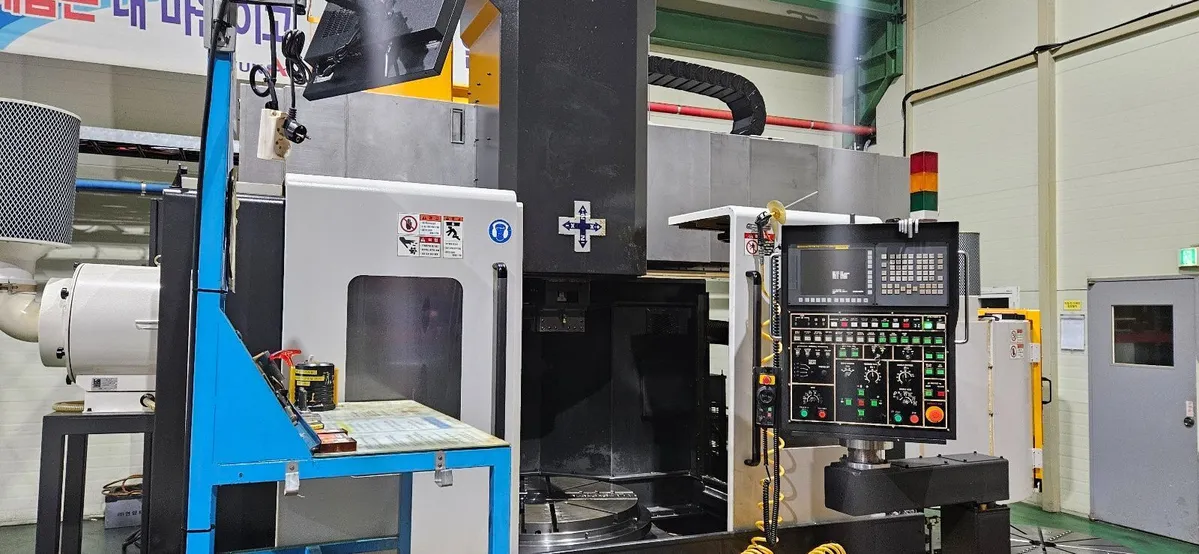

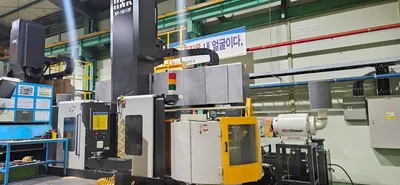

2016 HANKOOK NT-10/12F CNC 2-Axis Vertical Boring Mill. Ideal for precision boring and turning of large diameter parts, this used machine offers scale feedback on X & Z axis for reliable performance in industrial settings. Perfect for enhancing productivity in your manufacturing process.

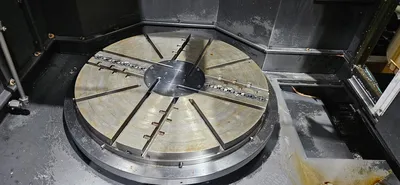

Table Diameter: 50"
Swing Diameter: 63"
Turning Height: 49.2"
Spindle Nose : 0
Table Speed: 360 RPM
Main Motor: 60 HP
Number Of Ranges: 2
X - Axis Travel: -7.87"~66.92"
Z - Axis Travel: 35.4"
W - Axis Travel : 29.5"
W - Axis Positions: 0
C - Axis Indexing: 0
Ram Size: 7.9" X 7.9"
Rotary Spindle Speed: 0
Rotary Spindle Horsepower: 0
Turret Configuration: 0
Automatic Tool Changer: 12
Rapid Traverse X, Z: 472, 394 IPM
Machine Weight: 53,000 Lbs.

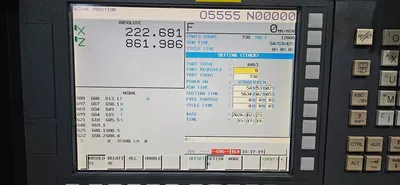

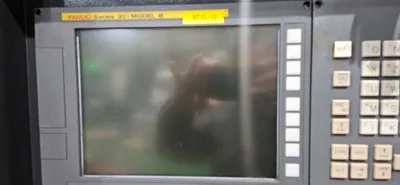

FANUC 31I-B CNC COLOR CONTROL
CHIP CONVEYOR
SCALE FEED BACK X, & Z AXIS
HIGH PRESSURE 1000 PSI COOLANT THRU TOOL
TABLE BEARING COOLING CHILLER UNIT
MIST COLLECT SSYTEM
12 AUTO TOOL CHANGER
4 JAW INDEPENDENT MANUAL CHUCK
PATROL LIGHT 3 TIER
EXTERNAL COOLANT SYSTEM
FULL GAURDING
