MORI SEIKI NT 4250 DCG/1500SZM CNC MULTITASKING TURNING CENTER

MORI SEIKI NT 4250 DCG/1500SZM CNC MULTITASKING TURNING CENTER

Have one to sell?
(847) 669 9781
mike@usedcncllc.com
ConditionUsed
1 available
Have one to sell?

Overview

Type:
Lathes CNC, Y-Axis / Multi Axis
Manufacturer:
MORI SEIKI
Model:
NT 4250 DCG / SZM
Year:
2006
Stock #:
10140
Status:
For Sale

Description

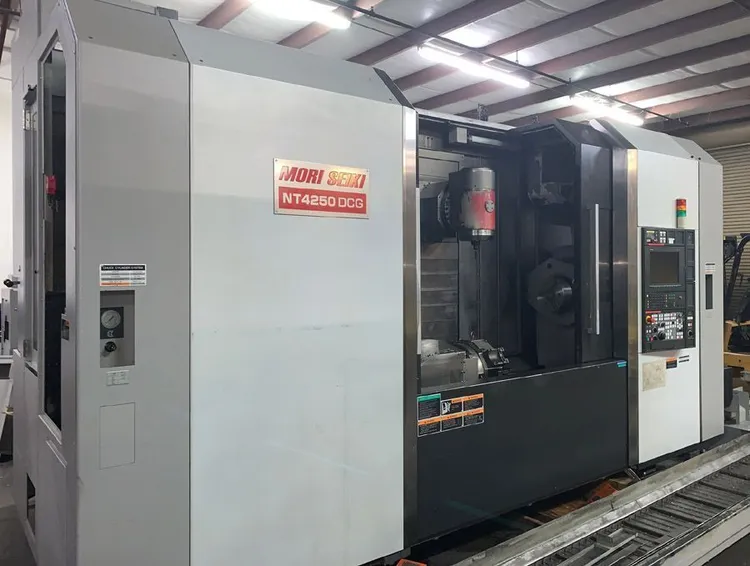

2006 MORI SEIKI NT 4250 DCG/1500SZM CNC multitasking turning center, featuring Y-Axis, 5-axis control, 28.7" swing, 60.7" turning length, dual 30 hp spindles at 4,000 RPM. Equipped with MSX-711 III control, MAPPS III conversational programming, and Renishaw probing system.

Swing Over Bed28.7"728.98 mm
Turning Length60.7"1,541.8 mm
Distance Between Spindles73.3"1,861.8 mm
Chuck Size 110"254 mm
Spindle Nose 1A2 - 8A2 - 8
Spindle Bore Diameter 13.6"91.44 mm
Bar Capacity 13.1"78.74 mm
Spindle Speeds 14,000 RPM4,000 RPM
Spindle Horsepower 130 hp22.4 kW
Chuck Size 210"254 mm
Spindle Nose 2A2 - 8A2 - 8
Spindle Bore Diameter 23.6"91.44 mm
Bar Capacity 23.1"78.74 mm
Spindle Speeds 24,000 RPM4,000 RPM
Spindle Horsepower 230 hp22.4 kW

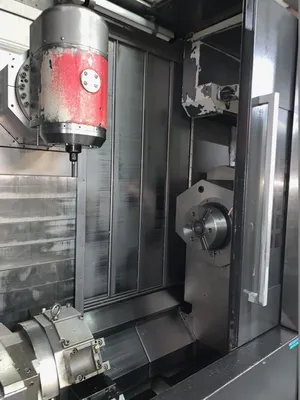

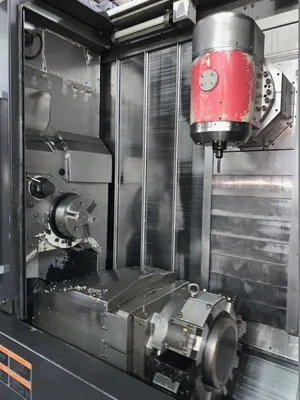

B - Axis Head Travel= _ 120 DEGREES= _ 120 DEGREES
B - Axis Head Indexing0.00010.0001
B - Axis Milling Spindle TaperCAPTO C6CAPTO C6
B - Axis Milling Spindle Speed12,000 RPM12,000 RPM
B - Axis Milling Spindle Horse Power25 hp18.6 kW
ATC For Milling Spindle4040
Tool Diameter2.7", 5.5"2.7", 5.5"
Tool Length15.7"398.78 mm
Tool Weight17.6 lb8 kg
X1 - Axis Travel29.5"749.3 mm
X2 - Axis Travel7.7"195.58 mm
Z1 - Axis Travel68.3"1,734.8 mm
Z2 - Axis Travel60"1,524 mm
Y1 - Axis Travel16.6"421.64 mm
C - Axis Indexing 10.00010.0001
C - Axis Indexing 20.00010.0001
Rapid Traverse Rate - X11968 ipm
Rapid Traverse Rate - X21181 ipm
Rapid Traverse Rate - Z11968 ipm
Rapid Traverse Rate - Z21181 ipm
Rapid Traverse Rate - Y11181 ipm
Turret Tool Positions 112 station12 station
Turret Rotary Tool Speeds 16,000 RPM6,000 RPM
Turret Rotary Tool Horse Power 17.5 hp5.6 kW
Machine Weight56,320 lb25,546.4 kg
ControlCNC (MORI SEIKI MSX - 711 III CNC COLOR CONTROL)CNC (MORI SEIKI MSX - 711 III CNC COLOR CONTROL)
Weight35000.0035000.00

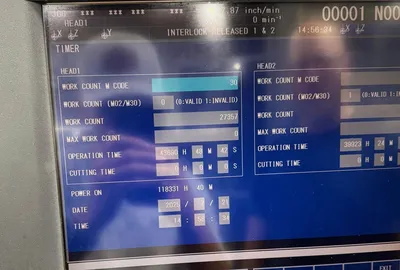

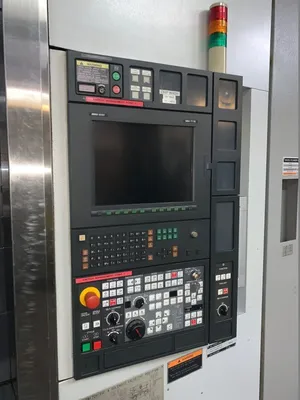

MORI MSX-711 III CNC COLOR CONTROL CONTROL
MAPPS III CONVERSATIONAL PROGRAMMING
MANUAL PULSE GENERATOR
TOOL PRE SETTER
RENISHAW WORKPIECE MEASURING SYSTEM
ROYAL MIST COLLECTOR
COOL JET HIGH PRESSURE COOLANT THROUGH SPINDLE
4 EXTERNAL M-CODES
COORDINATE SYSTEM ROTATION
SUB TURRET WITH MILLING SPINDLE
5-AXIS SIMULTANEOUS CONTROL
B-AXIS .0001 DEGREE POSITONING / FULL CONTOURING
(2) 10 3 JAW HYDRAULIC CHUCKS
(2) NEW 12" CHUCK 3 JAW HYDRAULIC CHUCKS
