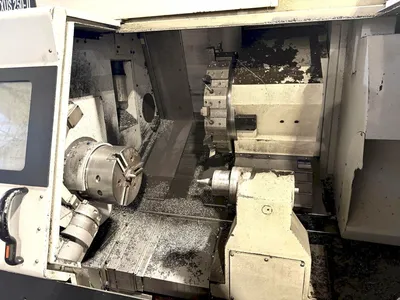

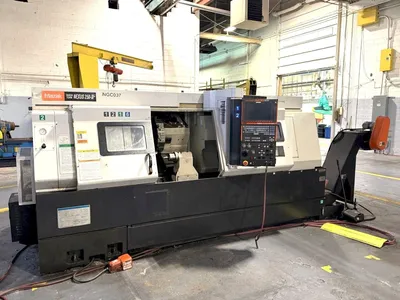

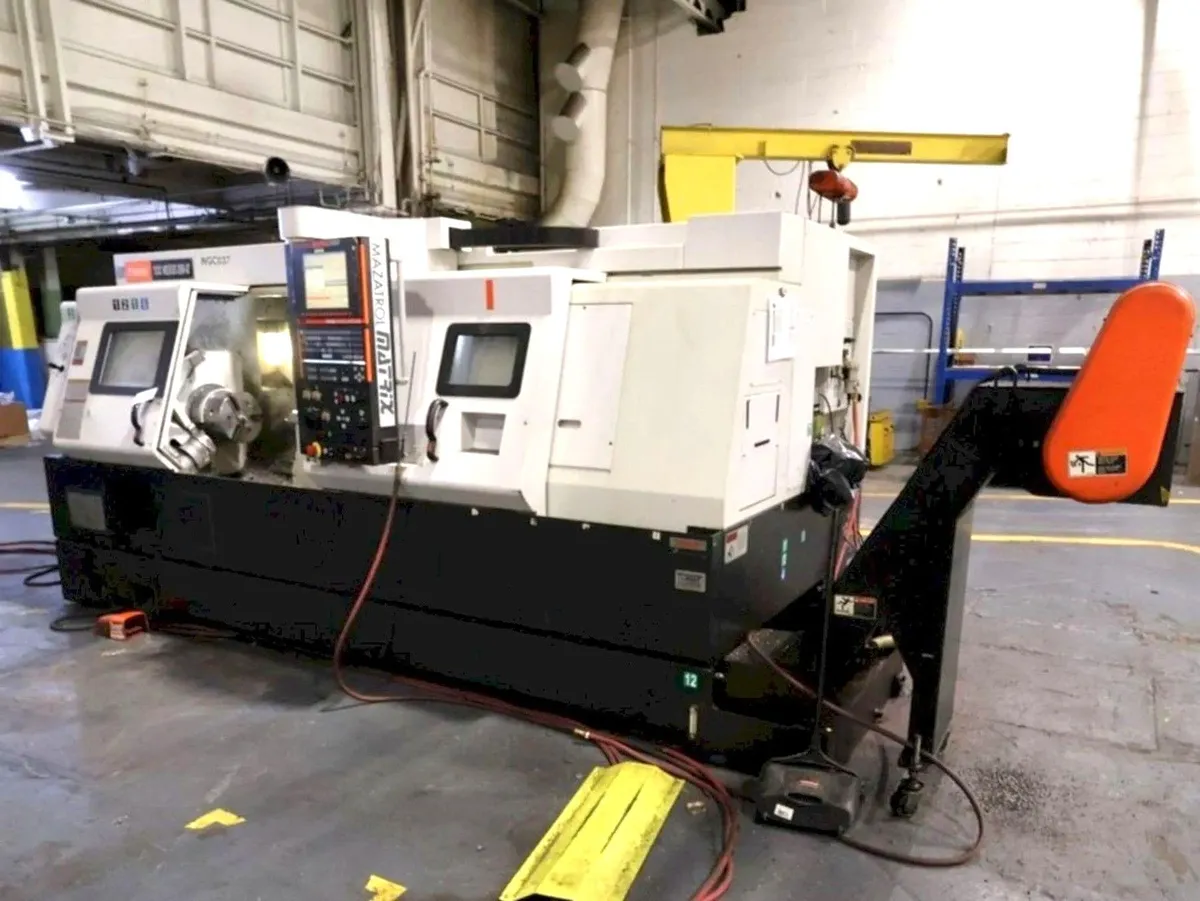

MAZAK NEXUS QTN 250II / 1500 CNC UNIVERSAL TURNING CENTER

MAZAK NEXUS QTN 250II / 1500 CNC UNIVERSAL TURNING CENTER

Have one to sell?
(847) 669 9781
mike@usedcncllc.com
ConditionUsed
1 available
Have one to sell?

Overview

Type:
Lathes CNC, 2-Axis & 3-Axis
Manufacturer:
MAZAK
Model:
MAZAK QTN 250II/1500
Year:
2009
Stock #:
10141
Status:
For Sale

Description

2009 MAZAK NEXUS QTN 250II/1500 CNC Turning Center available. Features 26.5" swing over bed, 14.7" max machining diameter, 10" hydraulic chuck, 35 HP motor, and 12 turret positions. Equipped with EIA/ISO, MATRIX control, and 12,023 lbs.

Swing Over Bed26.5"673.1 mm
Machining Length59"1,498.6 mm
Distance Between Centers60.2"1,529.1 mm
Chuck Size 110"254 mm
Spindle Nose 1A2 - 8A2 - 8
Spindle Bar Capacity 13"76.2 mm
Turning Diameter, Shaft Diameter14.75"374.65 mm
Spindle Speeds 14,000 RPM4,000 RPM
Spindle Horsepower 135 hp26.1 kW
Spindle Bore Diameter 13.6"91.44 mm
X1 - Axis Travel9"228.6 mm
Z1 - Axis Travel61"1,549.4 mm
Rapid Traverse Rate - X11,181 in/min.500 mm/sec.
Rapid Traverse Rate - Z11,299 in/min.549.9 mm/sec.
Turret Configuration 11212
Tailstock TaperMT 4MT 4
Tailstock Quill Travel59.2"1,503.7 mm
ControlCNC (MAZAK MAZATROL MATRIX CNC COLOR CONTROL)CNC (MAZAK MAZATROL MATRIX CNC COLOR CONTROL)
Weight12000.0012000.00

EIA/ISO INPUT PROGRAMMING

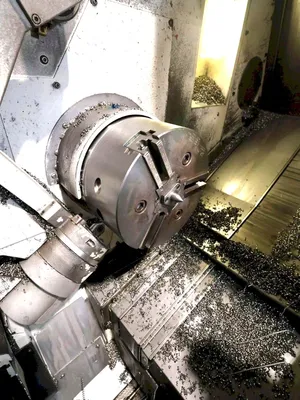

10'' 3 JAW HYDRAULIC CHUCK
CHIP CONVEYOR RIGHT SIDE DISCHARGE
AUTO TOOL EYE
USB 2 PORT
USER MACRO
600 PAIRS
SEQUENCE NUMBER COMPARISON STOP
ABSOLUTE POSITIONING SYSTEM
CHUCK OPEN/CLOSE
TOOL LIFE MONITORING
TRANSFORMER
ALL AVAILABLE STANDARD TOOL HOLDERS
ALL AVAILABLE MANUALS
HYDRAULIC PROGRAMMABLE TAILSTOCK AUTOMATIC
MATRIX CNC CONTROL
