MAKINO A 51NX CNC 4 AXIS HORIZONTAL MACHINING CENTER

MAKINO A 51NX CNC 4 AXIS HORIZONTAL MACHINING CENTER

Have one to sell?
(847) 669 9781
mike@usedcncllc.com
ConditionUsed
1 available
Have one to sell?

Overview

Type:
Horizontal Machining Centers
Manufacturer:
MAKINO
Model:
A51NX
Year:
2012
Stock #:
10142
Status:
For Sale

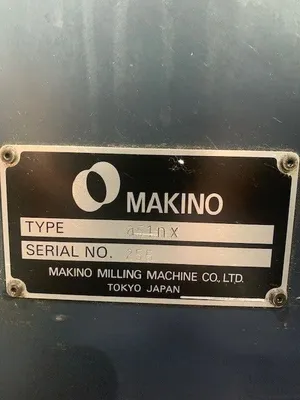

Serial #:
255

Description

Explore precision with the 2012 MAKINO A51NX CNC 4 Axis Horizontal Machining Center, offering 2360 IPM rapid traverse, 14,000 RPM spindle, and 60-tool auto changer. Fully equipped with FANUC 31i CNC control, helical interpolation, and a 2-pallet changer, cool thru spindle.

Pallet Size - L15.7"398.78 mm
Pallet Size - W15.7"398.78 mm
Number of Pallets22
Pallet Weight Capacity880 lb399.2 kg
Pallet Surface to Spindle Center3.1" ~ 28.3"3.1" ~ 28.3"
Pallet Center To Spindle Gage Line3.9" ~ 29.1"3.9" ~ 29.1"
X - AxisTravel22"558.8 mm
Y - Axis Travel25.2"640.08 mm
Z - Axis Travel25.2"640.08 mm
B - Axis Travel.0001.0001
Rapid Traverse Rate - X2,360 in/min.59.9 m/min.
Rapid Traverse Rate - Y2360 ipm
Rapid Traverse Rate - Z2360 ipm
Cutting Feed Rate1,968 in/sec.2,999.2 m/min.
Spindle Speed14,000 RPM14,000 RPM
Spindle Taper4040
Main Motor30 hp22.4 kW
Automatic Tool Changer6060
Tool Diameter3.7, 6.7"3.7, 6.7"
Tool Length16.9"429.26 mm
Tool Weight26.4 lb12 kg
Tool Change Time0.9 sec.0.9 sec.
Machine Weight19,620 lb8,899.5 kg
ControlCNC (FANUC 31 IB CNC CONTROL WITH PRO 5)CNC (FANUC 31 IB CNC CONTROL WITH PRO 5)
Weight0.000.00

FANUC 31I CNC CONTROL WITH PRO 5
12.1 COLOR LCD / 320 METERS
200 PROGRAMS
DATA CENTER 4MB
FULL 4TH AXIS N/C ROTARY TABLE
BALL SCREW CORE COOLING
200 TOOL OFFSETS
TOOL OFFSET MEMORY C
HELICAL INTERPOLATION
HIGH SPEED SKIP FUCTIONS
CUSTOM MACRO 100 VARIABLES
PORTABLE HAND HELD MPG
EXTERNAL SETTING ORIENTATION
2-PALLET CHANGER
CHIP REMOVAL SYSTEM
ALL AVAILABLE MANUALS

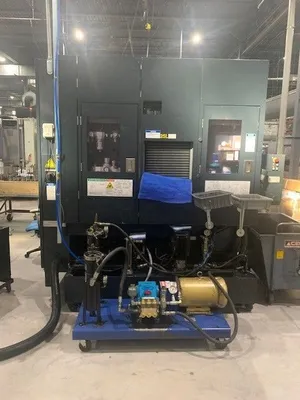

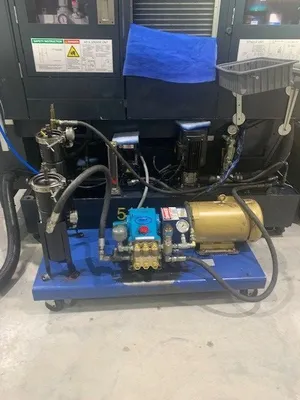

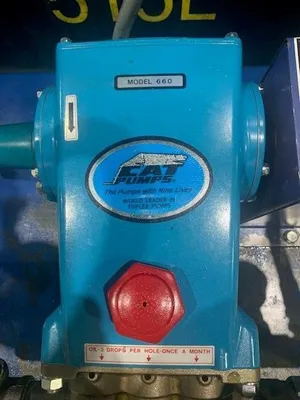

COOLANT THRU SPINDLE 1000 PSI
RENISHAW PART PROBE

Overview

Type:
Horizontal Machining Centers
Manufacturer:
MAKINO
Model:
A51NX
Year:
2012
Stock #:
10142
Status:
For Sale
Serial #:
255

Description

Explore precision with the 2012 MAKINO A51NX CNC 4 Axis Horizontal Machining Center, offering 2360 IPM rapid traverse, 14,000 RPM spindle, and 60-tool auto changer. Fully equipped with FANUC 31i CNC control, helical interpolation, and a 2-pallet changer, cool thru spindle.

Specifications

Imperial

Pallet Size - L15.7"
Pallet Size - W15.7"
Number of Pallets2
Pallet Weight Capacity880 lb
Pallet Surface to Spindle Center3.1" ~ 28.3"
Pallet Center To Spindle Gage Line3.9" ~ 29.1"
X - AxisTravel22"
Y - Axis Travel25.2"
Z - Axis Travel25.2"
B - Axis Travel.0001
Rapid Traverse Rate - X2,360 in/min.
Rapid Traverse Rate - Y2360 ipm
Rapid Traverse Rate - Z2360 ipm
Cutting Feed Rate1,968 in/sec.
Spindle Speed14,000 RPM
Spindle Taper40
Main Motor30 hp
Automatic Tool Changer60
Tool Diameter3.7, 6.7"
Tool Length16.9"
Tool Weight26.4 lb
Tool Change Time0.9 sec.
Machine Weight19,620 lb
ControlCNC (FANUC 31 IB CNC CONTROL WITH PRO 5)
Weight0.00

Equipped With

FANUC 31I CNC CONTROL WITH PRO 5
12.1 COLOR LCD / 320 METERS
200 PROGRAMS
DATA CENTER 4MB
FULL 4TH AXIS N/C ROTARY TABLE
BALL SCREW CORE COOLING
200 TOOL OFFSETS
TOOL OFFSET MEMORY C
HELICAL INTERPOLATION
HIGH SPEED SKIP FUCTIONS
CUSTOM MACRO 100 VARIABLES
PORTABLE HAND HELD MPG
EXTERNAL SETTING ORIENTATION
2-PALLET CHANGER
CHIP REMOVAL SYSTEM
ALL AVAILABLE MANUALS
COOLANT THRU SPINDLE 1000 PSI
RENISHAW PART PROBE
