| Swing Over Bed | 1.2402" | 31.5 mm |
| Turning Diameter | 0.4961" | 12.6 mm |
| Turning Length | 10.2" | 259.08 mm |
| Distance Between Spindles | 44.5" | 1,130.3 mm |
| Spindle Nose 1 | A2 - 6 | A2 - 6 |
| Spindle Bore Diameter 1 | 2.9" | 73.66 mm |
| Bar Capacity 1 | 0.0984" | 2.5 mm |
| Spindle Speeds 1 | 5,000 RPM | 5,000 RPM |
| Spindle Horsepower 1 | 44.7 hp | 33.3 kW |
| Spindle Nose 2 | A2 - 6 | A2 - 6 |
| Spindle Bore Diameter 2 | 2.9" | 73.66 mm |
| Spindle Speeds 2 | 5,000 RPM | 5,000 RPM |
| Spindle Horsepower 2 | 33.3 hp | 24.8 kW |
| X1 - Axis Travel | 8.3" | 210.82 mm |
| X2 - Axis Travel | 8.3" | 210.82 mm |
| X3 - Axis Travel | 8.3" | 210.82 mm |
| Z1 - Axis Travel | 11.8" | 299.72 mm |
| Z2 - Axis Travel | 31.9" | 810.26 mm |
| Z3 - Axis Travel | 3.9" | 99.06 mm |
| Y1 - Axis Travel | 4.3" | 109.22 mm |
| Y2 - Axis Travel | 4.3" | 109.22 mm |
| Y3 - Axis Travel | 4.3" | 109.22 mm |
| C - Axis Indexing 1 | 0.001 | 0.001 |
| C - Axis Indexing 2 | 0.001 | 0.001 |
| W - Axis Travel Sub Spindle | 36.2" | 919.48 mm |
| Rapid Traverse Rate - X1 | 1181 ipm | |
| Rapid Traverse Rate - X2 | 1181 ipm | |
| Rapid Traverse Rate - X3 | 1181 ipm | |
| Rapid Traverse Rate - Z1 | 1968 ipm | |
| Rapid Traverse Rate - Z2 | 1968 ipm | |
| Rapid Traverse Rate - Z3 | 1968 ipm | |
| Rapid Traverse Rate - Y1 | 787 ipm | |
| Rapid Traverse Rate - Y2 | 629 in/min. | 16 m/min. |
| Rapid Traverse Rate - Y3 | 787 in/min. | 20 m/min. |
| Turret Tool Positions 1 | 16 station | 16 station |
| Turret Rotary Tool Speeds 1 | 6,000 RPM | 6,000 RPM |
| Turret Rotary Tool Horse Power 1 | 10 hp | 7.5 kW |
| Turret Tool Positions 2 | 16 | 16 |
| Turret Rotary Tool Speeds 2 | 6,000 RPM | 6,000 RPM |
| Turret Rotary Tool Horse Power 2 | 10 hp | 7.5 kW |
| Turret Tool Positions 3 | 16 | 16 |
| Turret Rotary Tool Speeds 3 | 6,000 RPM | 6,000 RPM |
| Turret Rotary Tool Horse Power 3 | 10 hp | 7.5 kW |
| Control | CNC (FANUC 31 IB CNC COLOR CONTROL) | CNC (FANUC 31 IB CNC COLOR CONTROL) |
| Weight | 0.00 | 0.00 |
PROGRAM RESTART / INVERSE TIME FEED
AUTO POWER OFF

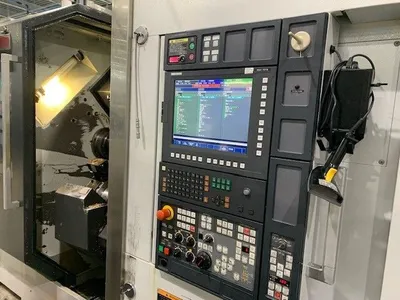

MSX 701III / FANUC 31IB CNC CONTROL WITH MAPPS III

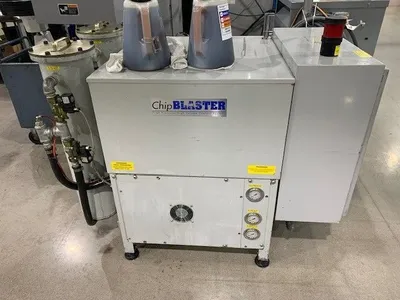

COOLANT THRU SPINDLES CHIP BLASTER 1000 PSI

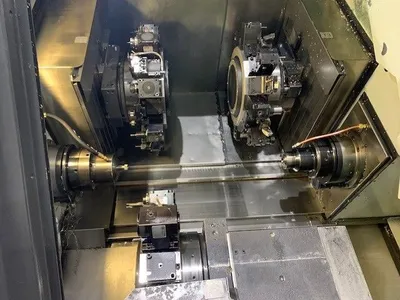

BMT TYPE ROTARY TURRETS
3 TURRETS 3 Y-AXIS

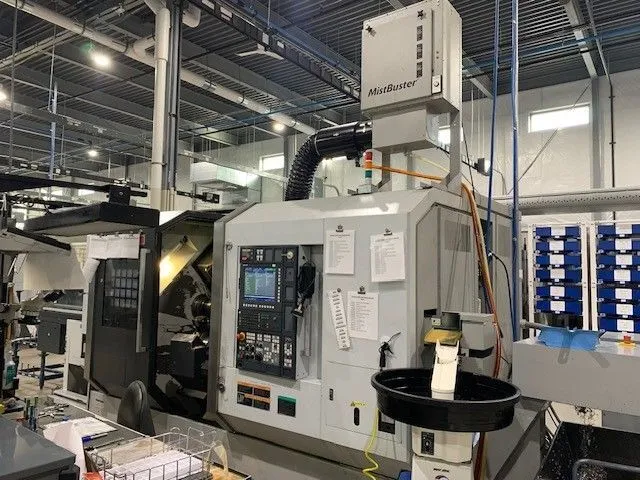

MIST COLLECT SYSTEM
CHIP CONVEYOR
TOOL PRESETTERS (L/R)

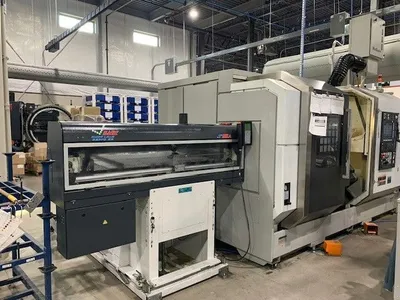

LNS QUICK LOAD SERVO S3 SHORT MAGAZINE BARFEED
This equipment has been sold. Similar equipment available now is shown below.
