| Number Of Tables / Pallets | 1 | 1 |
| Table Size - L | 15.7" | 398.78 mm |
| Table Size - W | 15.7" | 398.78 mm |
| Weight On Table | 440 lb | 199.6 kg |
| Main Spindle Horse Power | 20 hp | 14.9 kW |
| Spindle Nose To Table | 5.9" - 25.6" | 5.9" - 25.6" |
| Main Spindle Speeds | 15,000 RPM | 15,000 RPM |
| Max Workpiece Diameter and Height | 21.7" x 15.7" | 21.7" x 15.7" |
| Main Spindle Taper | #40 CT | #40 CT |
| X - Axis Travel | 24" | 609.6 mm |
| Y - Axis Travel | 24" | 609.6 mm |
| Z - Axis Travel | 19.7" | 500.38 mm |
| A - Axis Travel | -120 to +30 DEGREES | -120 to +30 DEGREES |

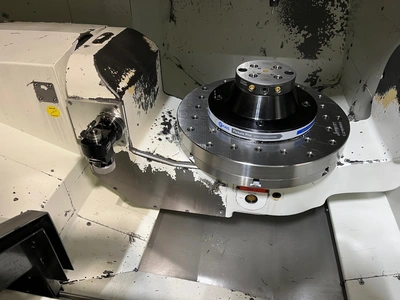

| C - Axis Travel Table Indexing | 360 DEGREES | 360 DEGREES |
| Rapid Traverse Rate - X | 1,969 in/min. | 50 m/min. |
| Rapid Traverse Rate - Y | 1,969 in/min. | 50 m/min. |
| Rapid Traverse Rate - Z | 1,181 in/min. | 30 m/min. |
| Cutting Feed Rate | 944 in/min. | 24 m/min. |

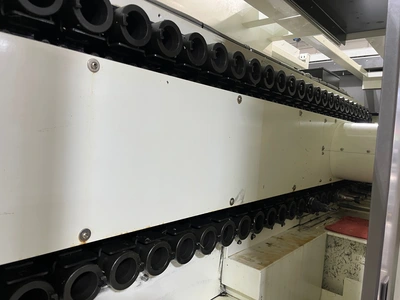

| Automatic Tool Changer | 60 | 60 |
| Tool Diameter | 2.59" / 5.9" | 2.59" / 5.9" |
| Tool Length | 11.8" | 299.72 mm |
| Tool Weight | 22 lb | 10 kg |
| Machine Weight | 20,020 lb | 9,080.9 kg |
| Weight | 21000.00 | 21000.00 |

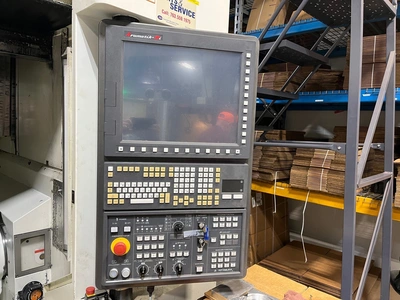

ARUMATIK-MI CNC CONTROL
LARGE 19" COLOR ICON OPERATION TOUCH SCREEN
AUTOMATIC WORK COMPENSATION - RENISHAW OMP60
TOOL PRESETTER PACKAGE C - RENISHAW TS-27R
COOLANT THRU SPINDLE

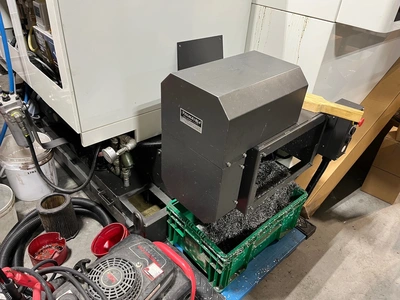

CHIP CONVEYOR
This equipment is currently unavailable. Similar equipment available now is shown below.
