| Number Of Tables / Pallets | 2 | 2 |
| Table-L | 31.5" | 800.1 mm |
| Table-W | 15.7" | 398.78 mm |
| Weight on Table | 441 lb | 200 kg |
| Spindle Nose to Table Top | 13.8" ~ 25.8" | 13.8" ~ 25.8" |
| X - Axis Travel | 25.6" | 650.24 mm |
| Y - Axis Travel | 16.7" | 424.18 mm |
| Z - Axis Travel | 17.7" | 449.58 mm |
| Rapid Traverse Rate - X | 1,696 in/min. | 43.1 m/min. |
| Rapid Traverse Rate - Y | 1,696 in/min. | 43.1 m/min. |
| Rapid Traverse Rate - Z | 1,696 in/min. | 43.1 m/min. |
| Cutting Feed Rate | 1,181 in/min. | 30 m/min. |
| Spindle Speed | 16,000 RPM | 16,000 RPM |
| Spindle Taper | 30 BBT | 30 BBT |
| Main Motor | 9.8 hp | 7.3 kW |
| Tool Diameter | 3.1 | 3.1 |
| Tool Length | 7.9" | 200.66 mm |
| Tool Weight | 6.6 lb | 3 kg |
| Machine Weight | 7,826 lb | 3,549.8 kg |
| Automatic Tool Changer | 40 | 40 |
| Control | CNC | CNC |
| Weight | 0.00 | 0.00 |
BROTHER CNC-C00 CNC COLOR CONTROL

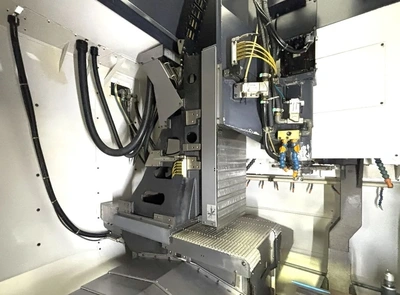

Servo Quick Dual Table
16000 RPM
Spindle Override
40 Position Automatic Tool Changer

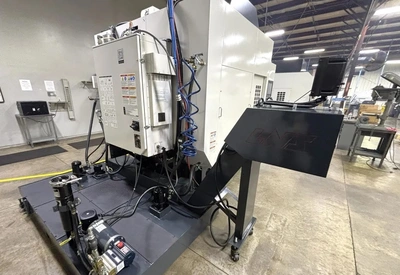

LNS Turbo MH 250 / 250 Micron Filtration Chip Conveyor
Manual pulse generator
Work light kit with brackets
Spindle override
1000 PSI Coolant Thru Spindle
Renshaw OMP 40 Spindle Probe
Renishaw Tool Length Measurement TS27R
Amano Air Filtration Unit

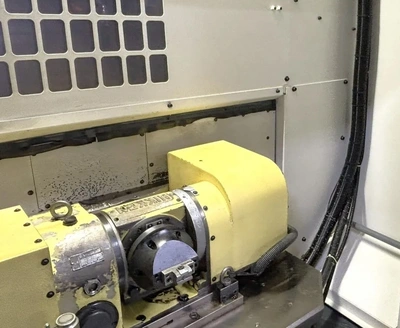

Nikken 5AX-130BASA-B42 5th Axis Rotary Table
This equipment is currently unavailable. Similar equipment available now is shown below.
