| Number Of Tables / Pallets | 1 | 1 |
| Table-L | 82.7" | 2,100.6 mm |
| Table-W | 33.9" | 861.06 mm |
| Weight on Table | 4,850 lb | 2,199.9 kg |
| Spindle Nose to Table Top | 9.25" - 40.74" | 9.25" - 40.74" |
| X - Axis Travel | 74.8" | 1,899.9 mm |
| Y - Axis Travel | 33.85" | 859.79 mm |
| Z - Axis Travel | 31.5" | 800.1 mm |
| C - Axis Travel Table Indexing | .001 Degrees | .001 Degrees |
| Rapid Traverse Rate - X | 590 in/min. | 15 m/min. |
| Rapid Traverse Rate - Y | 590 in/min. | 15 m/min. |
| Rapid Traverse Rate - Z | 472 in/min. | 12 m/min. |
| Spindle Speed | 6,000 RPM | 6,000 RPM |
| Spindle Taper | #50 Big Plus | #50 Big Plus |
| Main Motor | 30 hp | 22.4 kW |
| Tool Diameter | 3.94" / 7.87" | 3.94" / 7.87" |
| Tool Length | 11.81" | 299.97 mm |
| Tool Weight | 33 lb | 15 kg |
| Machine Weight | 41,888 lb | 19,000.1 kg |
| Automatic Tool Changer | 40 | 40 |
| Dimensions | 192" x 155" x 138" | 192" x 155" x 138" |

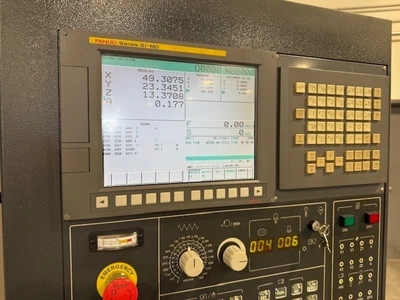

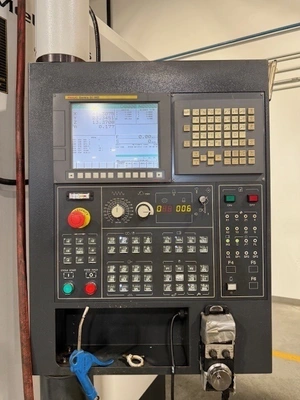

FANUC OI-MF CNC 4TH AXIS CONTROL

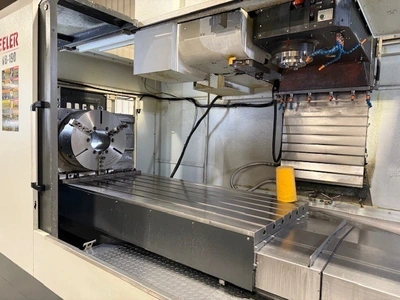

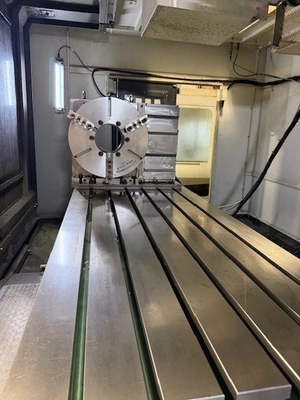

22" CHUCK ROTARY TABLE W/ 7.75" BORE

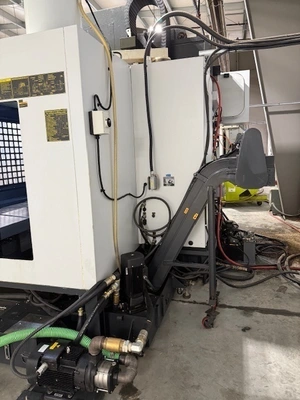

CHIP CONVEYOR
This equipment is currently unavailable. Similar equipment available now is shown below.
