| Swing Over Bed | 26.5" | 673.1 mm |
| Machining Length | 22.7" | 576.58 mm |
| Distance Between Centers | 22" | 558.8 mm |
| Turning Diameter, Shaft Diameter | 14.75" | 374.65 mm |
| Chuck Size 1 | 10" | 254 mm |
| Spindle Nose 1 | A2 - 8 | A2 - 8 |
| Spindle Bore Diameter 1 | 3.6" | 91.44 mm |
| Spindle Bar Capacity 1 | 3" | 76.2 mm |
| Spindle Speeds 1 | 4,000 RPM | 4,000 RPM |
| Spindle Horsepower 1 | 35 hp | 26.1 kW |
| X1 - Axis Travel | 9" | 228.6 mm |
| Z1 - Axis Travel | 22" | 558.8 mm |
| Rapid Traverse Rate - X1 | 1,181 in/min. | 500 mm/sec. |
| Rapid Traverse Rate - Z1 | 1,299 in/min. | 549.9 mm/sec. |

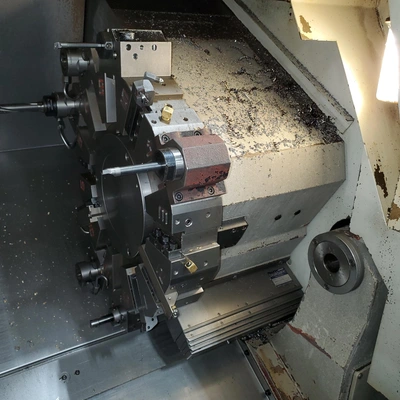

| Turret Configuration 1 | 12 | 12 |
| Tailstock Taper | MT 4 | MT 4 |
| Programmable Tailstock | YES | YES |
| Tailstock Travel | 17.6" | 447.04 mm |
| Bar Capacity | 3" | 76.2 mm |
| Tailstock | 'Yes' | 'Yes' |
| Live Tooling | 'No' | 'No' |
| Control | CNC | CNC |
| Weight | 12000.00 | 12000.00 |
EIA/ISO INPUT PROGRAMMING
10'' 3 JAW HYDRAULIC CHUCK

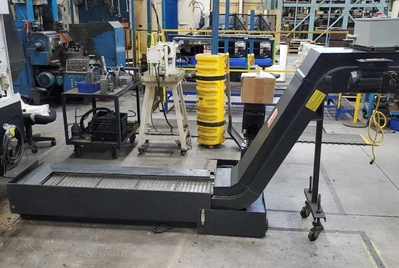

CHIP CONVEYOR RIGHT SIDE DISCHARGE

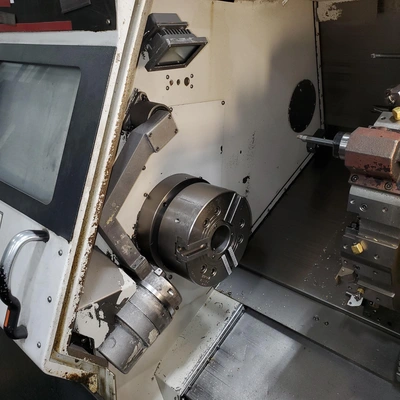

AUTO TOOL EYE
USB 2 PORT
USER MACRO
600 PAIRS
SEQUENCE NUMBER COMPARISON STOP
ABSOLUTE POSITIONING SYSTEM
CHUCK OPEN/CLOSE
TOOL LIFE MONITORING
TRANSFORMER
ALL AVAILABLE STANDARD TOOL HOLDERS
ALL AVAILABLE MANUALS
HYDRAULIC PROGRAMMABLE TAILSTOCK AUTOMATIC

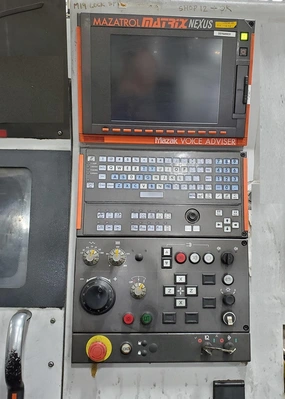

MATRIX CNC CONTROL
This equipment is currently unavailable. Similar equipment available now is shown below.
