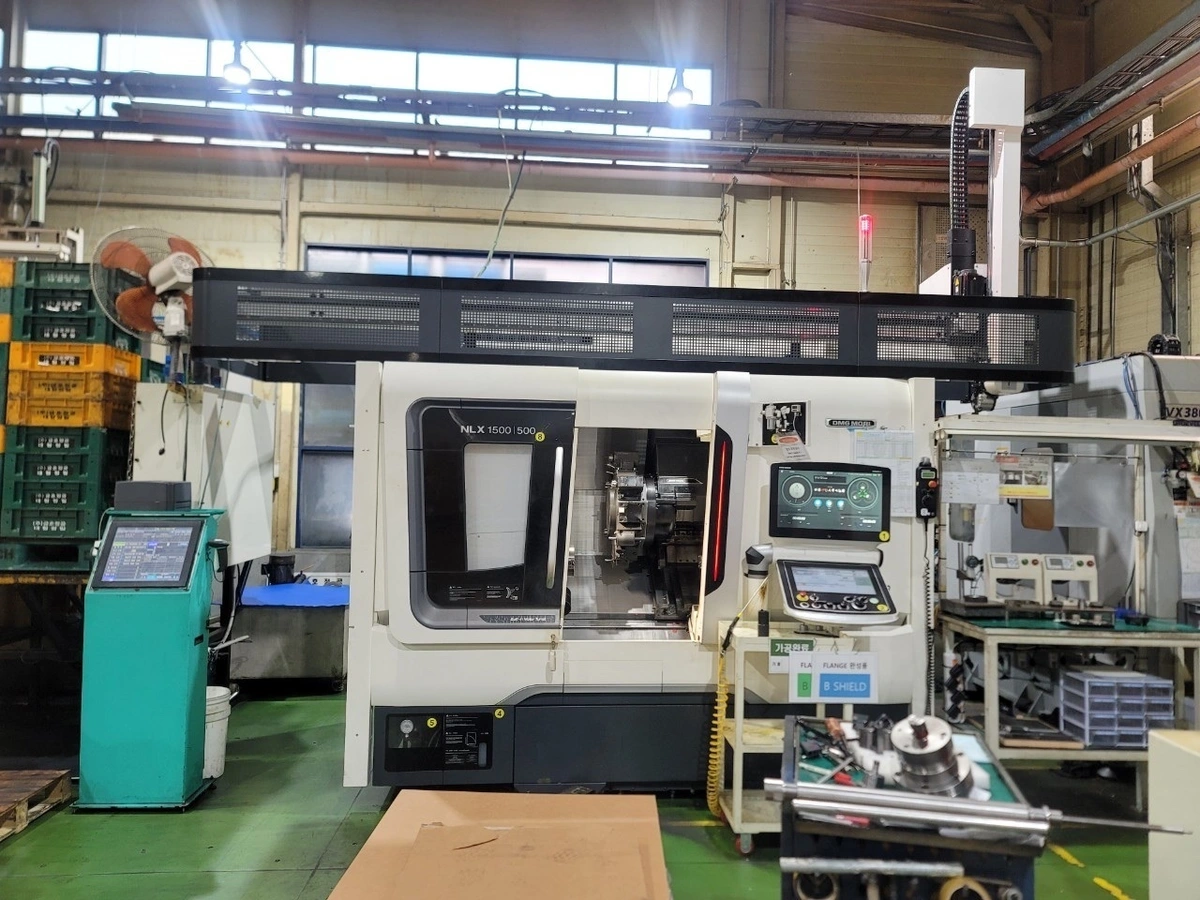

Used 2022 DMG MORI NLX 1500Y 500 W/ GANTRY | Lathes CNC, Y-Axis / Multi Axis

Have one to sell?
(847) 669 9781
mike@usedcncllc.com
ConditionUsed
1 available
Have one to sell?

Overview

Type:
Lathes CNC, Y-Axis / Multi Axis
Manufacturer:
DMG MORI
Model:
NLX 1500Y 500 W/ GANTRY
Year:
2022
Stock #:
10153
Status:
For Sale
Country:
Korea, Republic of
Swing Over Bed36.4"924.56 mm
Turning Diameter15.1"383.54 mm
Turning Length20.2"513.08 mm
Chuck Size 16"152.4 mm
Spindle Nose 1A2-5A2-5
Spindle Bore Diameter 12.4"60.96 mm
Bar Capacity 12"50.8 mm
Spindle Speeds 16,000 RPM6,000 RPM
Spindle Horsepower 120 hp14.9 kW
X1 - Axis Travel10.2"259.08 mm
Z1 - Axis Travel23.2"589.28 mm
Y1 - Axis Travel3.9"99.06 mm
C - Axis Indexing 10.00010.0001
Rapid Traverse Rate - X11181 ipm
Rapid Traverse Rate - Z11181 ipm
Rapid Traverse Rate - Y1393 ipm

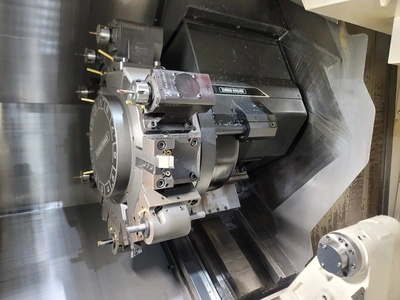

Turret Tool Positions 112 station12 station
Turret Rotary Tool Speeds 110,000 RPM10,000 RPM
Turret Rotary Tool Horse Power 17.5 hp5.6 kW
Tailstock TaperMT #4MT #4
Programmable Tailstock'Yes''Yes'
Tailstock Travel22.222.2
Machine Weight11,000 lb4,989.5 kg

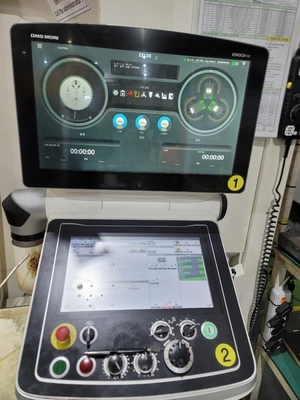

CELOS M730UM CNC CONTROL

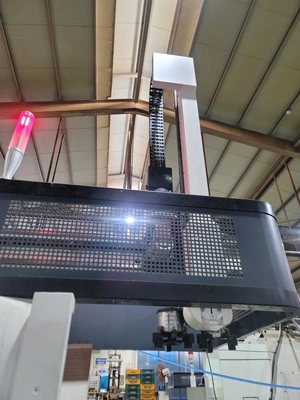

GX-05 AIV GANTRY LOADER
THROUGH SPINDLE COOLANT
TOOL SETTER
Z AXIS SCALE
MILLING HOLDERS
CHIP CONVEYOR
