HYUNDAI WIA F500 CNC VERTICAL MACHINING CENTER WITH AUTO PALLET CHANGER

HYUNDAI WIA F500 CNC VERTICAL MACHINING CENTER WITH AUTO PALLET CHANGER

Have one to sell?
(847) 669 9781
mike@usedcncllc.com
ConditionUsed
1 available
Have one to sell?

Overview

Type:
Vertical Machining Centers
Manufacturer:
HYUNDAI WIA
Model:
F500
Year:
2010
Stock #:
10155
Status:
For Sale

Description

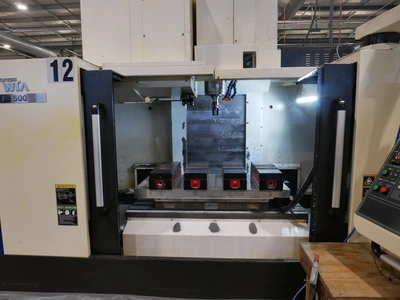

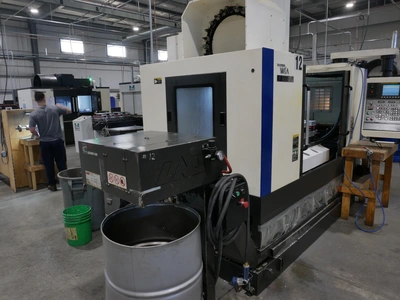

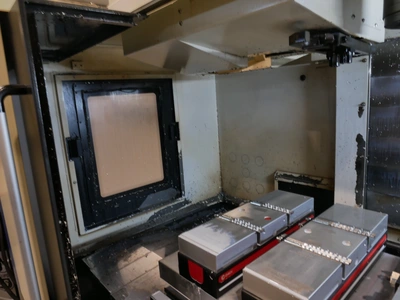

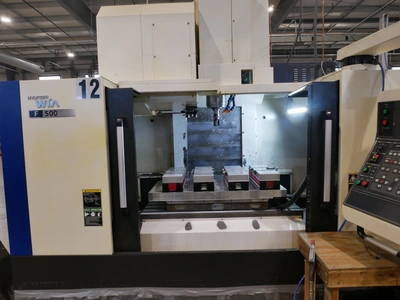

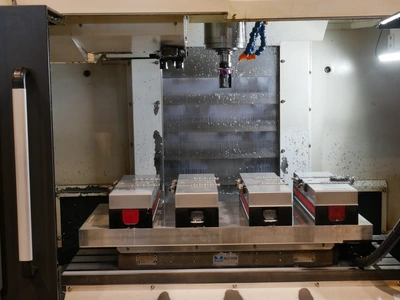

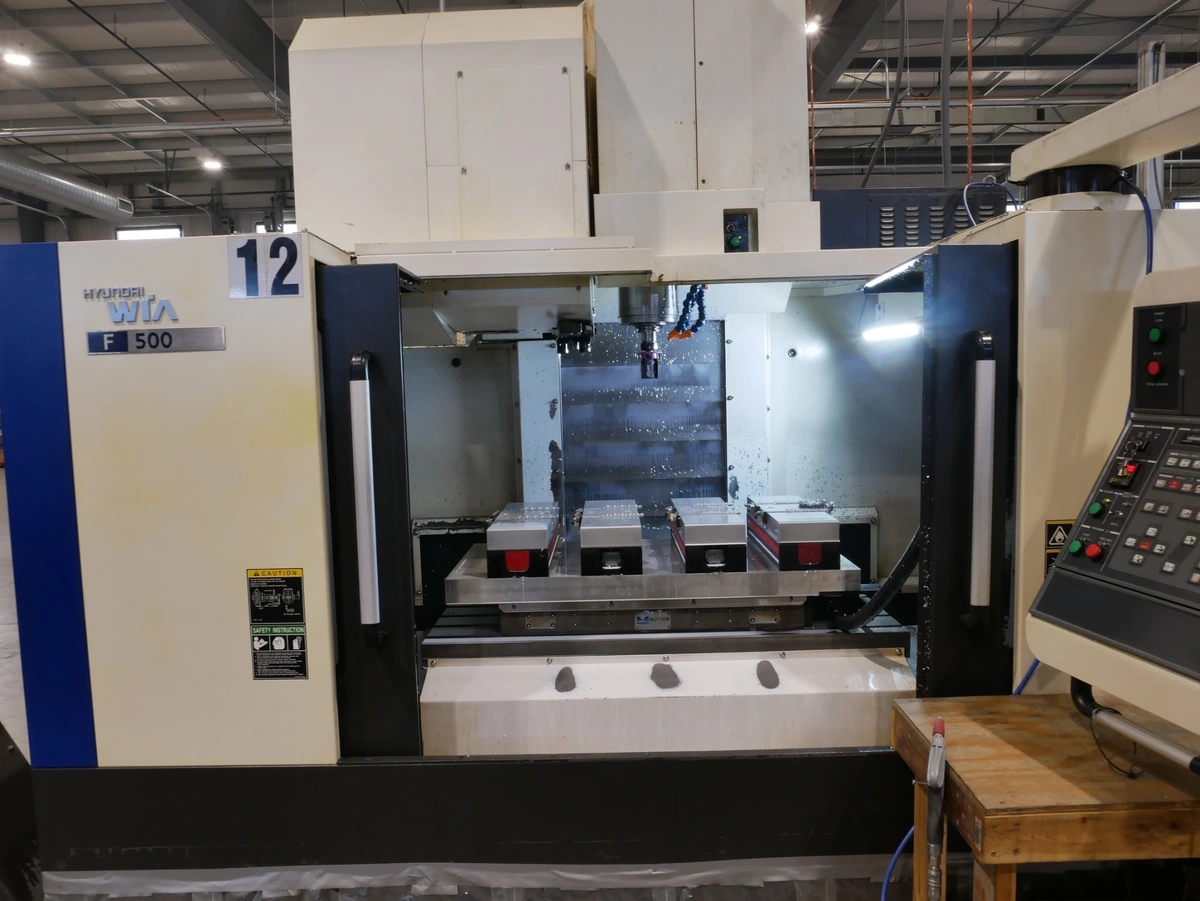

HYUNDAI WIA F500 CNC Vertical Machining Center, 2010 model with auto pallet changer. Features include: 2 tables, spindle 10,000 RPM, 30 ATC, FANUC series I CNC control, MIDACO pallet changer, and chip conveyor. Used condition.

Number Of Tables / Pallets22
Spindle Nose to Table Top5.9" - 30.9"5.9" - 30.9"
X - Axis Travel41.7"1,059.2 mm
Y - Axis Travel20.1"510.54 mm
Z - Axis Travel25"635 mm
Rapid Traverse Rate - X1,417 in/min.36 m/min.
Rapid Traverse Rate - Y1,417 in/min.36 m/min.
Rapid Traverse Rate - Z1,181 in/min.30 m/min.
Spindle Speed10,000 RPM10,000 RPM
Spindle Taper#40 CT#40 CT
Main Motor25 kW33.5 hp
Automatic Tool Changer3030
Tool Diameter3.5" / 5.9"3.5" / 5.9"
Tool Length11.8"299.72 mm
Tool Weight17.6 lb8 kg
Machine Weight16,976 lb7,700.2 kg
Dimensions146" x 105.9" x 110.8"146" x 105.9" x 110.8"

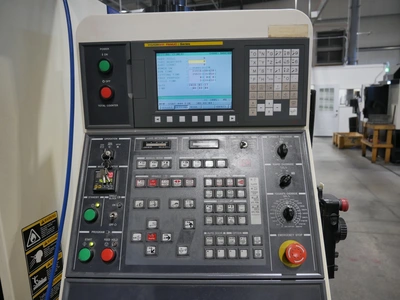

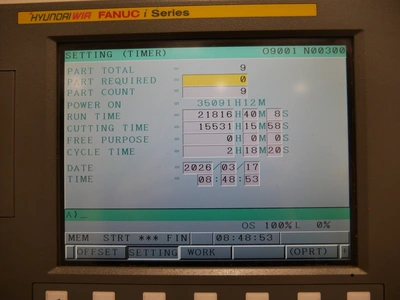

HYUNDAI WIA FANUC SERIES I CNC CONTROL

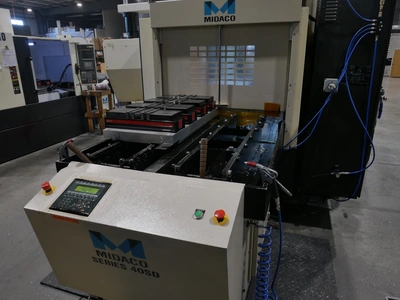

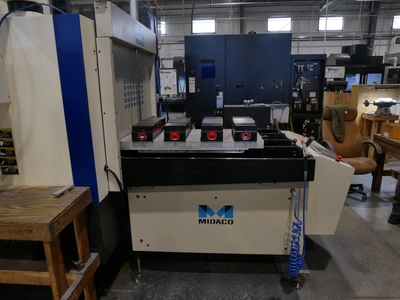

MIDACO PALLET CHANGER
COOLANT THRU SPINDLE
CHIP CONVEYOR
