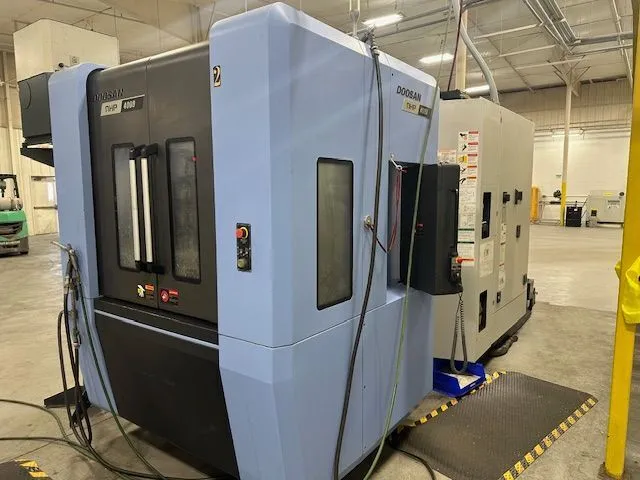

DOOSAN NHP 4000 4 AXIS HORIZONTAL MACHINING CENTER

DOOSAN NHP 4000 4 AXIS HORIZONTAL MACHINING CENTER

Have one to sell?
(847) 669 9781
mike@usedcncllc.com
ConditionUsed
1 available
Have one to sell?

Overview

Type:
Horizontal Machining Centers
Manufacturer:
DOOSAN
Model:
NHP 4000
Year:
2021
Stock #:
10160
Status:
For Sale
Serial #:
MH0028-000368

Description

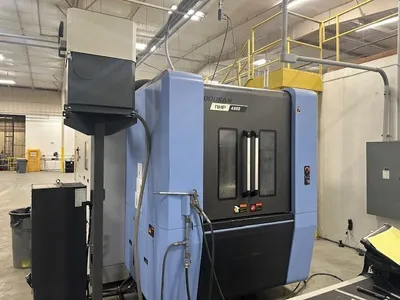

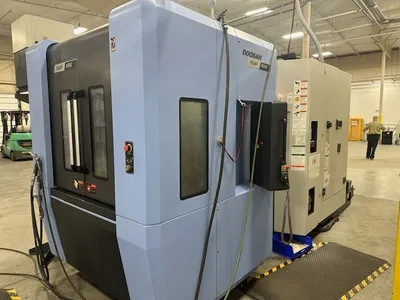

DOOSAN NHP 4000 4-axis Horizontal Machining Center, 2021 model, used. Offers 15.7" pallet size, 15,000 RPM spindle speed, 40 hp motor, and a 60-slot automatic tool changer. Features a FANUC 31I-B CNC control, Renishaw probes, and high-speed capabilities.

Pallet Size - L15.7"398.78 mm
Pallet Size - W15.7"398.78 mm
Number of Pallets22
Pallet Surface to Spindle Center3.1" ~ 29.1"3.1" ~ 29.1"
Pallet Center To Spindle Gage Line3.1 ~ 28.33.1 ~ 28.3
Workpiece Dimensions24.8" x 35.54 HT24.8" x 35.54 HT
X - AxisTravel22"558.8 mm
Y - Axis Travel25.2"640.08 mm
Z - Axis Travel26"660.4 mm
B - Axis Travel.001 NC Rotary.001 NC Rotary
Rapid Traverse Rate - X2,362 in/min.60 m/min.
Rapid Traverse Rate - Y2362 ipm
Rapid Traverse Rate - Z2362 ipm
Spindle Speed15,000 RPM15,000 RPM
Spindle TaperCT 40CT 40
Main Motor40 hp29.8 kW
Automatic Tool Changer6060
Tool Diameter3.0", 6.7"3.0", 6.7"
Tool Length17.7"449.58 mm
Tool Weight26.5 lb12 kg
Tool Change Time0.9 sec.0.9 sec.
Machine Weight21,384 lb9,699.6 kg
ControlCNC (FANUC 31I B CNC COLOR CONVERSATIONAL CONTROL)CNC (FANUC 31I B CNC COLOR CONVERSATIONAL CONTROL)
Weight21000.0021000.00

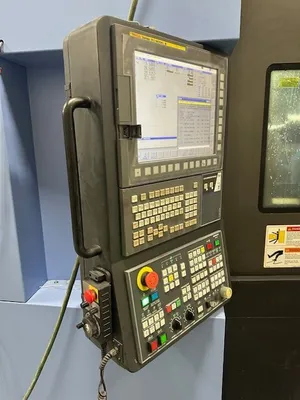

FANUC 31I-B CNC COLOR CONTROL
EZ GUIED I CONVERSATION PROGRAMMING
GRAPHIC FUNCTION
AI CONTOUR CONTROL II
8MB PART PROGRAM STORAGE
AICC 200 BLOCK HIGH SPEED CPU
NONO SMOOTHING
HELICAL INTERPOLATION
THREAD CUT/SYNCHRO FEED
EMBEDDED ETHERNET
AUTO TOOL MEASUREMENT RMI - Q RENISHAW

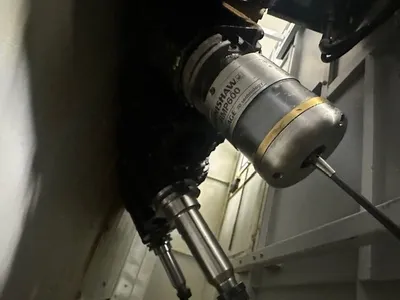

RENISHAW OMP 600 PART PROBE

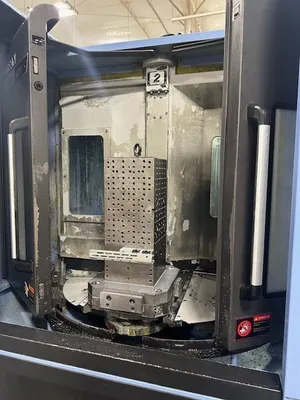

.001 N/C 4 AXIS ROTARY TABLE
PALLET CLAMP CONFIRMATION AIR LIMIT SENSING
200 PAIRS OF WORK OFSETS
DOOSAN TOOL LOAD MONITORING
HAND HELD MPG SYSTEM
CHIP CONVEYOR
COOLANT THRU SPINDLE 300PSI
CT 40 BIG PLUS SPINDLE
SHOWER COOLANT
TILTED WORK PLANE 54.1
(2) SPINDLE SUPPORTS (DIFFERENT LENGTHS)
.001 4 AXIS N/C ROTARY TABLE

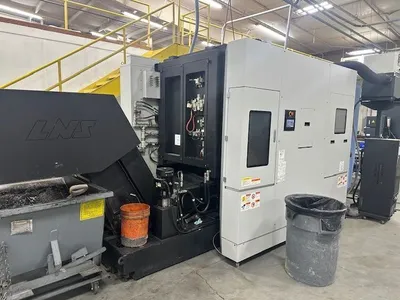

LNS FOX WS 2 700 MIST COLLECT SYSTEM
