| Number Of Tables / Pallets | 1 | 1 |
| Table Size - L | 19.7" | 500.38 mm |
| Table Size - W | 17.7" | 449.58 mm |
| Weight On Table | 881 lb | 399.6 kg |
| Integrated NC Rotary Table Size | 0" | 0 mm |
| Main Spindle Horse Power | 29.5 hp | 22 kW |
| Main Spindle Speeds | 18,000 RPM | 18,000 RPM |
| Main Spindle Taper | 40.0 | 40.0 |
| X - Axis Travel | 24.6" | 624.84 mm |
| Y - Axis Travel | 17.7" | 449.58 mm |
| Z - Axis Travel | 15.7" | 398.78 mm |
| A - Axis Travel | 0 | 0 |
| B - Axis Travel | -30 to +110 | -30 to +110 |
| C - Axis Travel Table Indexing | 360 | 360 |
| Rapid Traverse Rate - X | 1,574 in/min. | 40 m/min. |
| Rapid Traverse Rate - Y | 1,574 in/min. | 40 m/min. |
| Rapid Traverse Rate - Z | 1,574 in/min. | 40 m/min. |
| Cutting Feed Rate | 0 in/min. | 0 m/min. |
| Vertical Turning Table Size, Number Of Tables | 0 | 0 |
| Vertical Turning Table Speed | 0 RPM | 0 RPM |
| Vertical Turning Table Horse Power | 0 hp | 0 kW |
| Automatic Tool Changer | 60 | 60 |
| Tool Length | 11.8" | 299.72 mm |
| Tool Weight | 17.6 lb | 8 kg |
| Machine Weight | 16,535 lb | 7,500.2 kg |

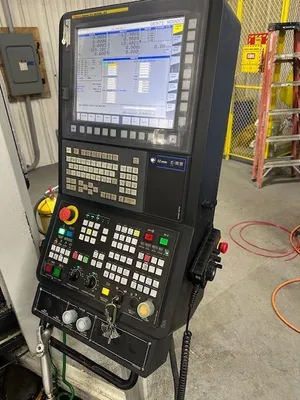

| Control | CNC (FANUC 31I B5 CNC COLOR CONTROL) | CNC (FANUC 31I B5 CNC COLOR CONTROL) |
| Weight | 0.00 | 0.00 |
FANUC 31I-B5 CNC COLOR 5 AXIS CONTROL
EZ GUIDE I CONVERSATIONAL PROGRAMMING
5120 METERS OF MEMORY
2MB PART PROGRAM STORAGE
AUTO POWER OFF
DOOSAN TOOL LOAD MONITORING
BIG PLUS 40 CT SPINDLE
500MM TABLE SIZE
400 PAIRS OF TOOL OFFSETS
WOORK CORRIDINATE SYSTEM 48 PAIRS
3-D COORDINATE CONVERTION
HIGH SPEED SKIP FUNCTION
CHIP CONVEYOR
RENIAHAW RMI - Q AUTO TOOL SETTER
RENISHAW RMP 60O PART PROBE
COOLANT THROUGH SPINDLE
LNS FOX WS 2 700 MIST COLLECT SYSTEM
This equipment is currently unavailable. Similar equipment available now is shown below.
