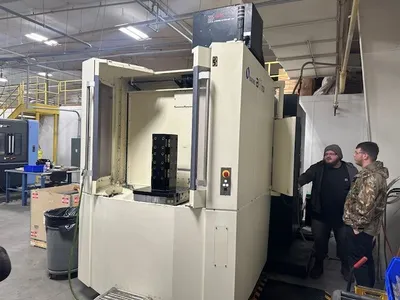

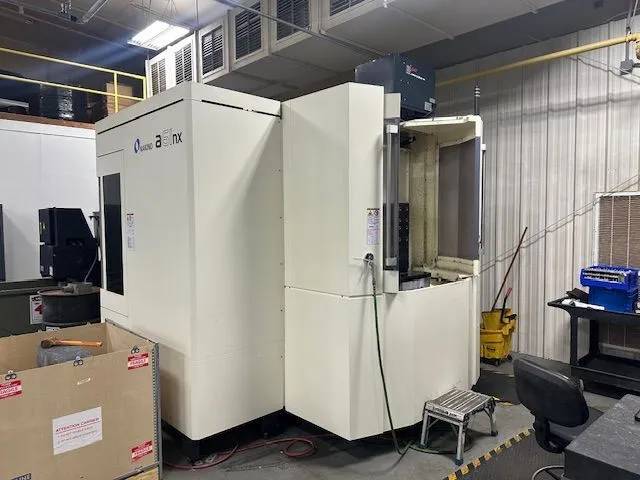

MAKINO A 61NX CNC 4 AXIS HORIZONTAL MACHINING CENTER

MAKINO A 61NX CNC 4 AXIS HORIZONTAL MACHINING CENTER

Have one to sell?
(847) 669 9781
mike@usedcncllc.com
ConditionUsed
1 available
Have one to sell?

Overview

Type:
Horizontal Machining Centers
Manufacturer:
MAKINO
Model:
A61NX
Year:
2022
Stock #:
10162
Status:
For Sale
Serial #:
2711

Description

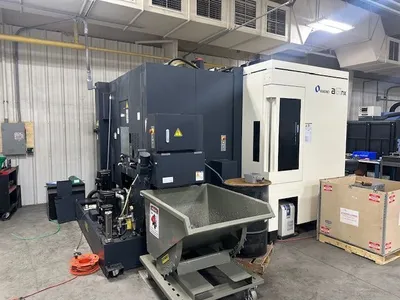

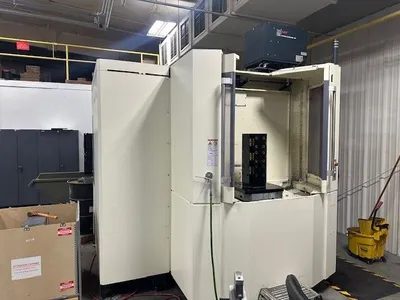

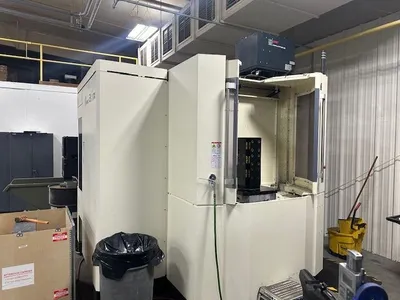

Used Makino A61NX CNC 4 Axis Horizontal Machining Center, 2022 model, featuring a CNC FANUC 310I B with PRO 6 control, 14,000 RPM spindle, 60 ATC, and full 4th axis rotary table. Enhanced by advanced sensors and a climate-controlled machining area.

Pallet Size - L19.7"500.38 mm
Pallet Size - W19.7"500.38 mm
Number of Pallets22
Pallet Weight Capacity1,200 lb544.3 kg
Pallet Surface to Spindle Center3.14" ~ 31.4"3.14" ~ 31.4"
Pallet Center To Spindle Gage Line3.93" ~ 35.4"3.93" ~ 35.4"
Workpiece Dimensions31.4" X 39.3"31.4" X 39.3"
X - AxisTravel28.7"728.98 mm
Y - Axis Travel25.6"650.24 mm
Z - Axis Travel31.5"800.1 mm
B - Axis Travel.0001 N/C ROTARY.0001 N/C ROTARY
Rapid Traverse Rate - X2,362 in/min.60 m/min.
Rapid Traverse Rate - Y2362 ipm
Rapid Traverse Rate - Z2361 ipm
Cutting Feed Rate1,968 in/sec.2,999.2 m/min.
Spindle Speed14,000 RPM14,000 RPM
Spindle TaperBIG PLKUS 40 CTBIG PLKUS 40 CT
Main Motor49.6 hp37 kW

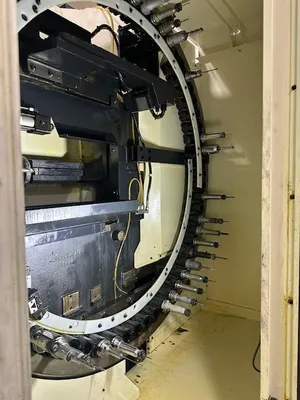

Automatic Tool Changer6060
Tool Diameter3.76" / 6.7"3.76" / 6.7"
Tool Length20"508 mm
Tool Weight26.4 lb12 kg
Tool Change Time0.9 sec.0.9 sec.
Machine Weight26,900 lb12,201.6 kg
ControlCNC (FANUC 310I CNC COLOR CONTROL W/PRO 6)CNC (FANUC 310I CNC COLOR CONTROL W/PRO 6)
Weight27000.0027000.00

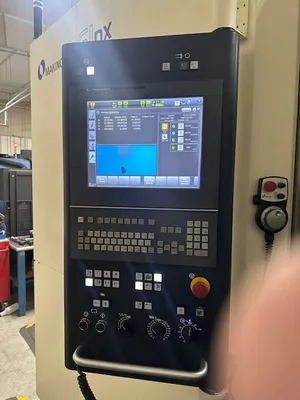

FANUC 310I B WITH PRO 6 CNC CONTROL
4 MB DATA CENTER
FULL 4TH AXIS N/C ROTARY TABLE
DD MOTORTABLE INDEXING, DIRECT DRIVE

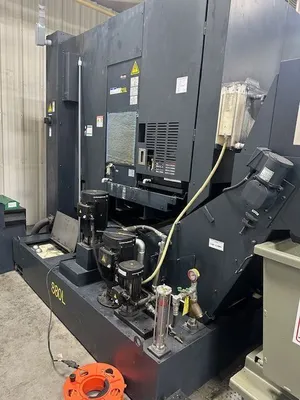

CHIP REMOVAL SYSTEM
PRO 6 CONTROL
HI SPEED SKIP
BTSOMA BROKEN TOOL SENSOR ATC
MARPOSS TOOL LENGTH MEASUREMENT LASER SYSTEM
RENISHA OMP 600 PART PROBE SYSTEM
GI CONTROL
BALL SCREW CORE COOLING
3 POINT LEVEL SYSTEM
OVERHEAD SHOWER COOLANT

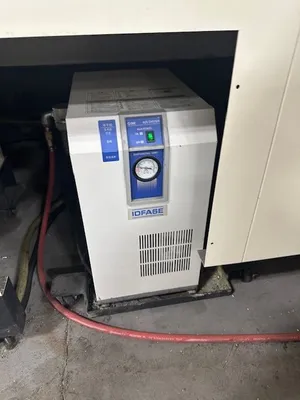

AIR DRYER SYSTEM IDFA6E
SPINDLE TABLE CRASH AVOIDANCE
HELICAL INTERPOLATION
400 PAIRS TOOL OFFSETS
3GB PROGRAM STORAGE
54 PAIRS WORK COORDINATES
COOLANT THRU SPINDLE 300PSI
2476 CUTTING HOURS
CLIMATE CONTROLED MACHINING AREA

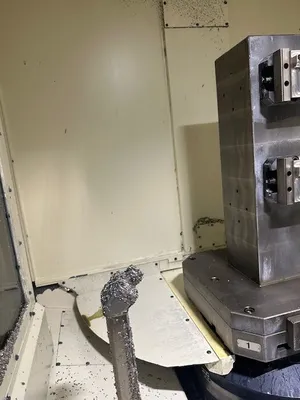

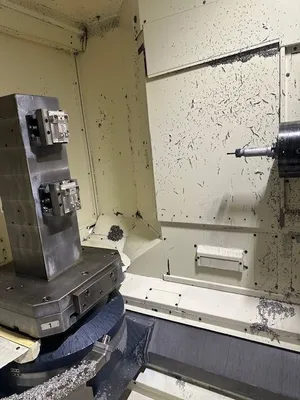

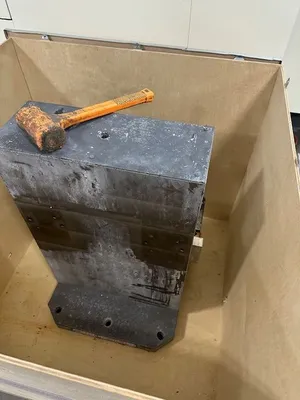

(1) SPARE PALLET AND 2 SIDED TOMBSTONE
