DOOSAN DNM 5700S HIGH SPEAD 4 AXIS VERTICAL MACHINING CENTER

DOOSAN DNM 5700S HIGH SPEAD 4 AXIS VERTICAL MACHINING CENTER

Have one to sell?
(847) 669 9781
mike@usedcncllc.com
ConditionUsed
1 available
Have one to sell?

Overview

Type:
Vertical Machining Centers
Manufacturer:
DOOSAN
Model:
DNM 5700S
Year:
2022
Stock #:
10163
Status:
For Sale
Serial #:
MV0119-000313
Country:
United States

Description

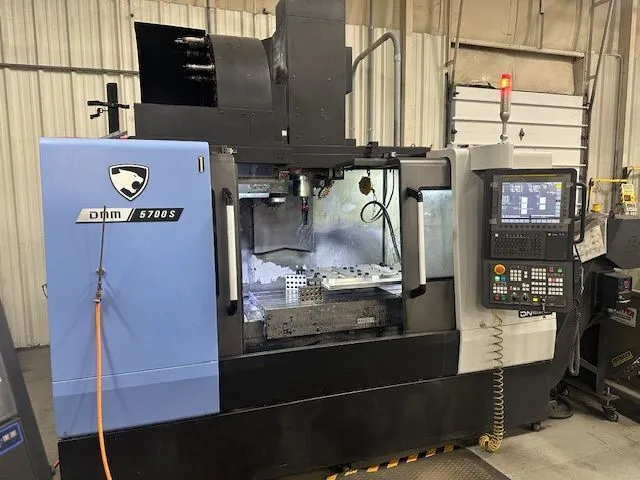

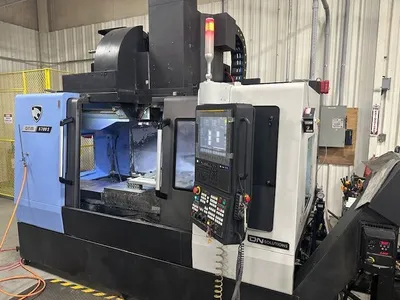

DOOSAN DNM 5700S, 2013 model vertical machining center. Features a robust 15,000 RPM spindle, BIG PLUS CT 40 taper, 40-tool ATC, and FANUC CNC control. Dimensions allow for precision with equipped coolant systems and tool monitoring. Ideal for high-speed production.

Number Of Tables / Pallets11
Table-L51.2 mm2.0157"
Table-W22.4 mm0.8819"
Weight on Table2,204 lb999.7 kg
Spindle Nose to Table Top5.9" ~ 26.0"5.9" ~ 26.0"
X - Axis Travel41.3 mm1.626"
Y - Axis Travel22.4 mm0.8819"
Z - Axis Travel20.1 mm0.7913"
Rapid Traverse Rate - X1,653 in/min.42 m/min.
Rapid Traverse Rate - Y1,653 in/min.42 m/min.
Rapid Traverse Rate - Z1,417 in/min.36 m/min.
Spindle Speed15,000 RPM15,000 RPM
Spindle TaperBIG PLUS CT 40BIG PLUS CT 40
Main Motor24.8 kW33.3 hp

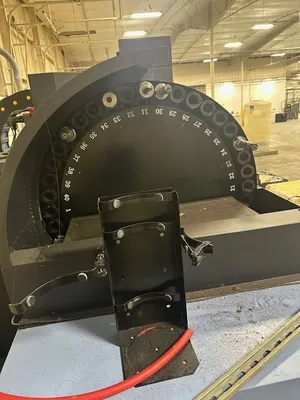

Automatic Tool Changer4040
Tool Diameter4.94.9
Tool Length11.8"299.72 mm
Tool Weight17.6 lb8 kg
Machine Weight14,329 lb6,499.5 kg

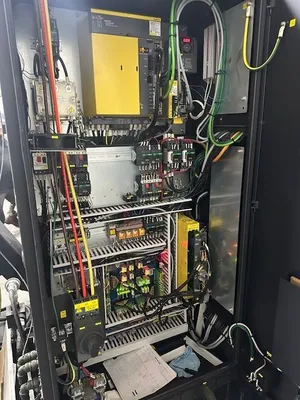

ControlCNC (DN FANUC I PLUS CONTROL)CNC (DN FANUC I PLUS CONTROL)

FANUC SERIES I PLUS CNC CONTROL
DATA SERVER
SMOOTH SURFACE PACKAGE
4TH AXIS READY W/ ROTARY TABLE
AICC II 200 BLOCKS
2 MB MEMORY
FLOOD COOLANT
OILS SKIMMER
AUTO TOOL MEASUREMENT RENISHAW OMI-T2
ADDITIONAL WORK LIGHT
COOLANT THROUGH SPIINDLE
DOOSAN TOOL LOAD MONITORING
HAND HELD MPG
CHIP AUGER
EMMBEDDE ETHERNET
CHIP CONVEYOR
