| Table Diameter | 32" | 812.8 mm |
| Table Load Capacity | 4,409 lb | 1,999.9 kg |
| Swing Diameter | 53.3" | 1,353.8 mm |
| Turning Height | 38.2" | 970.28 mm |
| Spindle Nose | 380 FLAT | 380 FLAT |
| Table Speed | 800 RPM | 800 RPM |
| Main Motor | 75 hp | 55.9 kW |
| Number Of Ranges | 2 | 2 |
| X - Axis Travel | 22.8" | 579.12 mm |
| Z - Axis Travel | 39.37" | 1,000 mm |
| Rapid Traverse Rate - X | 787 ipm | |
| Rapid Traverse Rate - Z | 787 in/min. | 20 m/min. |
| C - Axis Indexing | .001 | .001 |
| Rotary Spindle Speed | 3,000 RPM | 3,000 RPM |
| Rotary Spindle Horsepower | 15 hp | 11.2 kW |

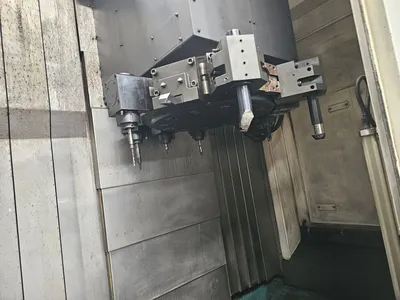

| Turret Configuration | 12 station | 12 station |
| Machine Weight | 48,501 lb | 21,999.7 kg |
| Control | CNC (FANUC 32i-A CNC COLOR CONTROL) | CNC (FANUC 32i-A CNC COLOR CONTROL) |

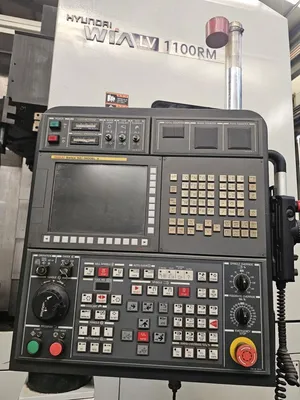

FANUC 32IA CNC COLOR CONTROL
TELESCOPIC GUARDS & COOLANT SHEILDS
COOLANT SYSTEM
FULL ENCLOSURES

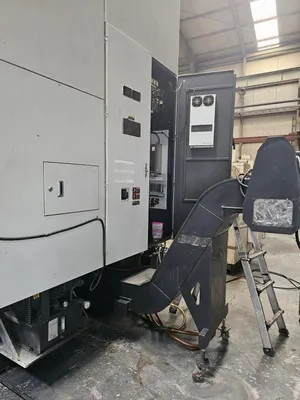

CHIP CONVEYOR
FULL SET OF MANUALS
2-SPEED GEARBOX

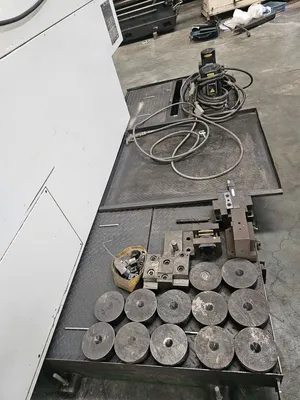

FULL SET OF TOOL HOLDERS
.001 FULL C - AXIS
(1) I.D. ROTARTY HOLDER BMT 85P
(1) O.D. ROTARY HOLDER BMT 85P
NUMBER OF TOOL OFFSETS 64 PAIRS

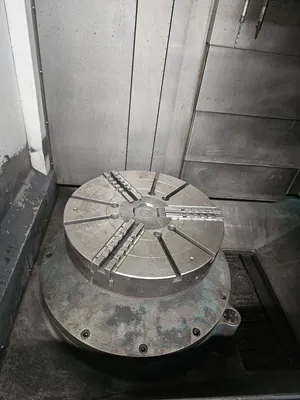

32" 3-JAW HYDRAULIC CHUCK
