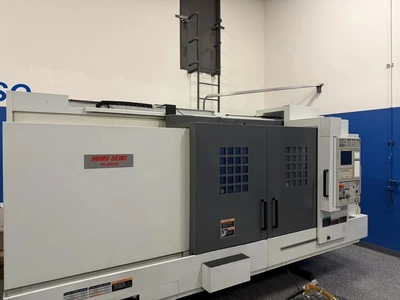

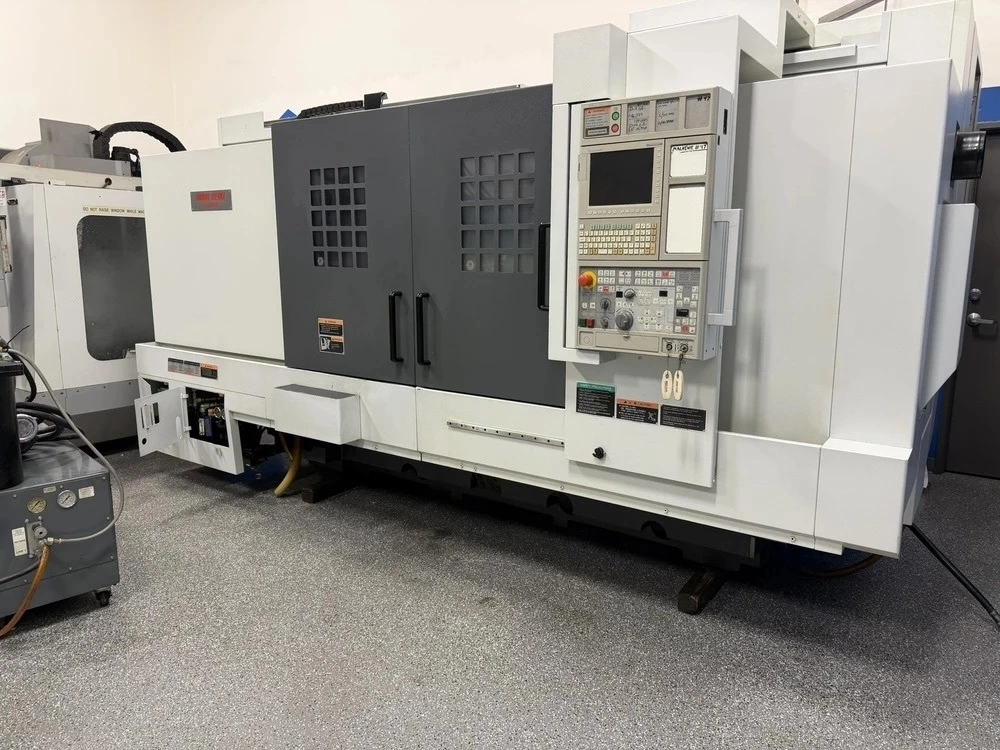

DMG MORI NL 2500SY / 1250 CNC MULTI TASKING CENTER

Have one to sell?
(847) 669 9781
mike@usedcncllc.com
ConditionUsed
1 available
Have one to sell?

Overview

Type:
Lathes CNC, Y-Axis / Multi Axis
Manufacturer:
MORI SEIKI
Model:
NL 2500SY 1250
Year:
2012
Stock #:
10168
Status:
For Sale

Description

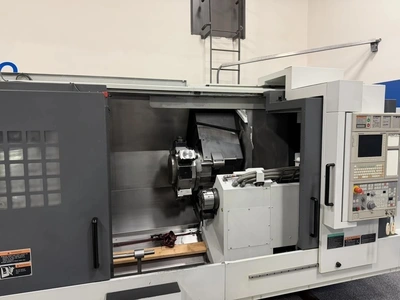

For sale: 2012 DMG MORI NL 2500SY/1250 CNC Multi-Tasking Center. Features MSX850IV CNC control, chip conveyor, MAPPS programming, and more. Swing over bed 29.21", spindle speeds up to 6,000 RPM, equipped with live and static holders.

Swing Over Bed29.7"754.38 mm
Turning Diameter14"355.6 mm
Turning Length51.1"1,297.9 mm
Distance Between Spindles53"1,346.2 mm
Chuck Size 110"254 mm
Spindle Nose 1A2-8A2-8
Spindle Bore Diameter 13.6"91.44 mm
Bar Capacity 13.1"78.74 mm
Spindle Speeds 14,000 RPM4,000 RPM
Spindle Horsepower 125 hp18.6 kW
Chuck Size 26"152.4 mm
Spindle Nose 2A2 - 5A2 - 5
Spindle Bore Diameter 21.7"43.18 mm
Spindle Speeds 26,000 RPM6,000 RPM
Spindle Horsepower 215 hp11.2 kW
X1 - Axis Travel10.24"260.1 mm
Z1 - Axis Travel53"1,346.2 mm
Y1 - Axis Travel4"101.6 mm
C - Axis Indexing 10.000.00
C - Axis Indexing 20.000.00
W - Axis Travel Sub Spindle50.6"1,285.2 mm
Rapid Traverse Rate - X11181 ipm
Rapid Traverse Rate - Z11181 ipm
Rapid Traverse Rate - Y1393 ipm

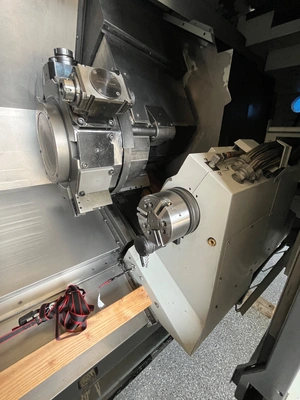

Turret Tool Positions 112 station12 station
Turret Rotary Tool Speeds 110,000 RPM10,000 RPM
Turret Rotary Tool Horse Power 17.5 hp5.6 kW
ControlCNC (M720BM CNC COLOR CONTROL)CNC (M720BM CNC COLOR CONTROL)
Weight0.000.00

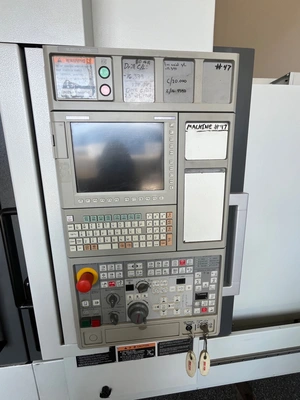

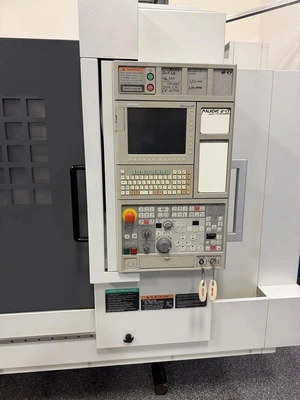

M720BM CNC COLOR CONTROL
MAPPS CONVERSATIONAL PROGRAMMING

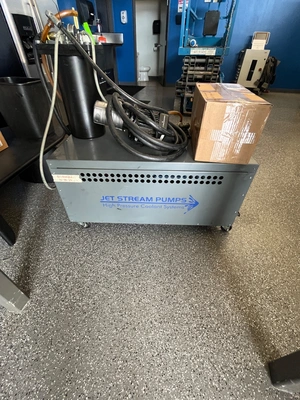

JET STREAM HIGH PRESSURE COOLANT THROUGH SYSTEM
CHIP CONVEYOR

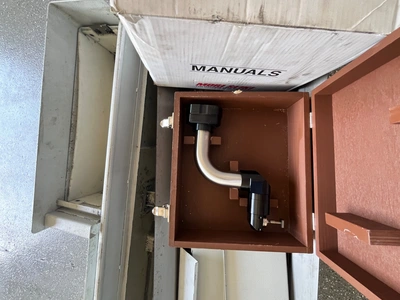

TOOL SETTER
PARTS CATCHER
MAPPS PROGRAMMING
2 LIVE HOLDERS
STATIC HOLDERS
MANUALS
