| Swing Over Bed | 17.7" | 449.58 mm |
| Turning Diameter | 16.9" | 429.26 mm |
| Turning Length | 31.4" | 797.56 mm |
| Distance Between Spindles | 41.3" | 1,049 mm |
| Chuck Size 1 | 8" | 203.2 mm |
| Spindle Nose 1 | A2 - 6 | A2 - 6 |
| Spindle Bore Diameter 1 | 2.9" | 73.66 mm |
| Bar Capacity 1 | 2.5" | 63.5 mm |
| Spindle Speeds 1 | 5,000 RPM | 5,000 RPM |
| Spindle Horsepower 1 | 15 hp | 11.2 kW |
| Chuck Size 2 | 8" | 203.2 mm |
| Spindle Nose 2 | FLAT | FLAT |
| Spindle Bore Diameter 2 | 1.9" | 48.26 mm |
| Bar Capacity 2 | 1.5" | 38.1 mm |
| Spindle Speeds 2 | 6,000 RPM | 6,000 RPM |
| Spindle Horsepower 2 | 10 hp | 7.5 kW |

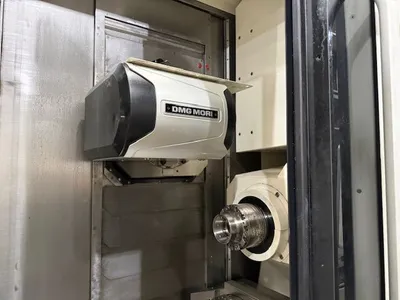

| B - Axis Head Travel | + - 120 DEGREES | + - 120 DEGREES |
| B - Axis Head Indexing | 0.0001 | 0.0001 |
| B - Axis Milling Spindle Taper | CAPTO C5 | CAPTO C5 |
| B - Axis Milling Spindle Speed | 20,000 RPM | 20,000 RPM |
| B - Axis Milling Spindle Horse Power | 12 hp | 8.9 kW |

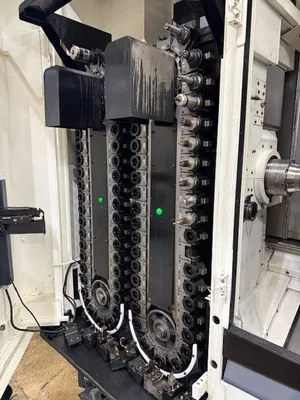

| ATC For Milling Spindle | 76 | 76 |
| Tool Diameter | 2.7", 5.1" | 2.7", 5.1" |
| Tool Length | 8.2" | 208.28 mm |
| Tool Weight | 11 lb | 5 kg |
| X1 - Axis Travel | 15" | 381 mm |
| X2 - Axis Travel | 6.1" | 154.94 mm |
| Z1 - Axis Travel | 24.2" | 614.68 mm |
| Z2 - Axis Travel | 24" | 609.6 mm |
| Y1 - Axis Travel | 8.2" | 208.28 mm |
| C - Axis Indexing 1 | 0.0001 | 0.0001 |
| C - Axis Indexing 2 | 0.0001 | 0.0001 |
| Rapid Traverse Rate - X1 | 1574 ipm | |
| Rapid Traverse Rate - X2 | 787 ipm | |
| Rapid Traverse Rate - Z1 | 1968 ipm | |
| Rapid Traverse Rate - Z2 | 1417 ipm | |
| Rapid Traverse Rate - Y1 | 1574 ipm | |

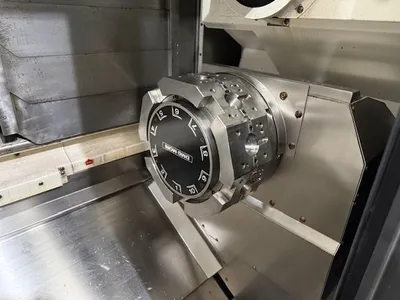

| Turret Tool Positions 1 | 10 station | 10 station |
| Machine Weight | 19,800 lb | 8,981.1 kg |
| Control | CNC (CELOS SIEMENS 840D SL CNC COLOR CONTROL) | CNC (CELOS SIEMENS 840D SL CNC COLOR CONTROL) |

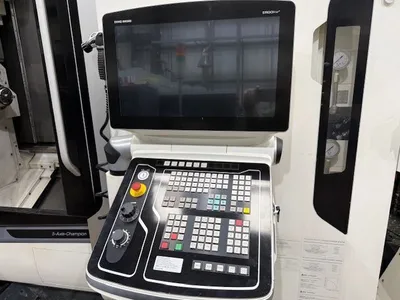

CELOS ERGOLINE SIEMENS 8740D SL CNC COLOR CONTROL
IN MACHINE TOOL PRESETTER FOR TOOL SPINDLE
CHIP CONVEYOR
SUPER HIGH PRESSURE COOLANT SYSTEM THRU B AXIS INTERFACE
ETHERNET I / P

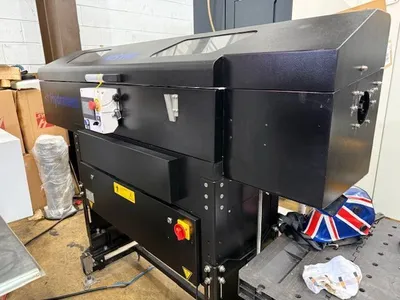

HYDRAFEED MSV SERVO DRIVEN SHORT MAGAZINE BAR FEED UNIT
BAR FEED INTERFACE
WORKPIECE UNLOADER
WORKPIECE EJECTOR
ROTARY WINDOW
HAINBUCH SPANNTOP MINI PULL BACK SIZE 65MM COLLET CHUCK
COOLANT GUN
AIRBLOW FOR CHUCK
MIST COLLECTOR INTERFACE
OIL SKIMMER
OIL MIST SEPERATOR
RENISHAW RMP 600 RART PROBE WITH IN MACHINE INSPECTION SOFTWARE
RENISHAW MULTI AXIS INSPECTION SOFTWARE
BLUM Z PICO TOOL BREAKAGE DETECTION
TECHNOLOGY SOFTWARE CYCLE 5 AXIS SIMULTANEOUS MACHINING
MANUAL PULSE GENERATOR
MULTI DRY FILTER
SIGNAL LAMP 4 COLORS
