Used 2019 DOOSAN DCM 2740FII | VMC Gantry / Bridge Type CNC
Have one to sell?
ConditionUsed
1 available

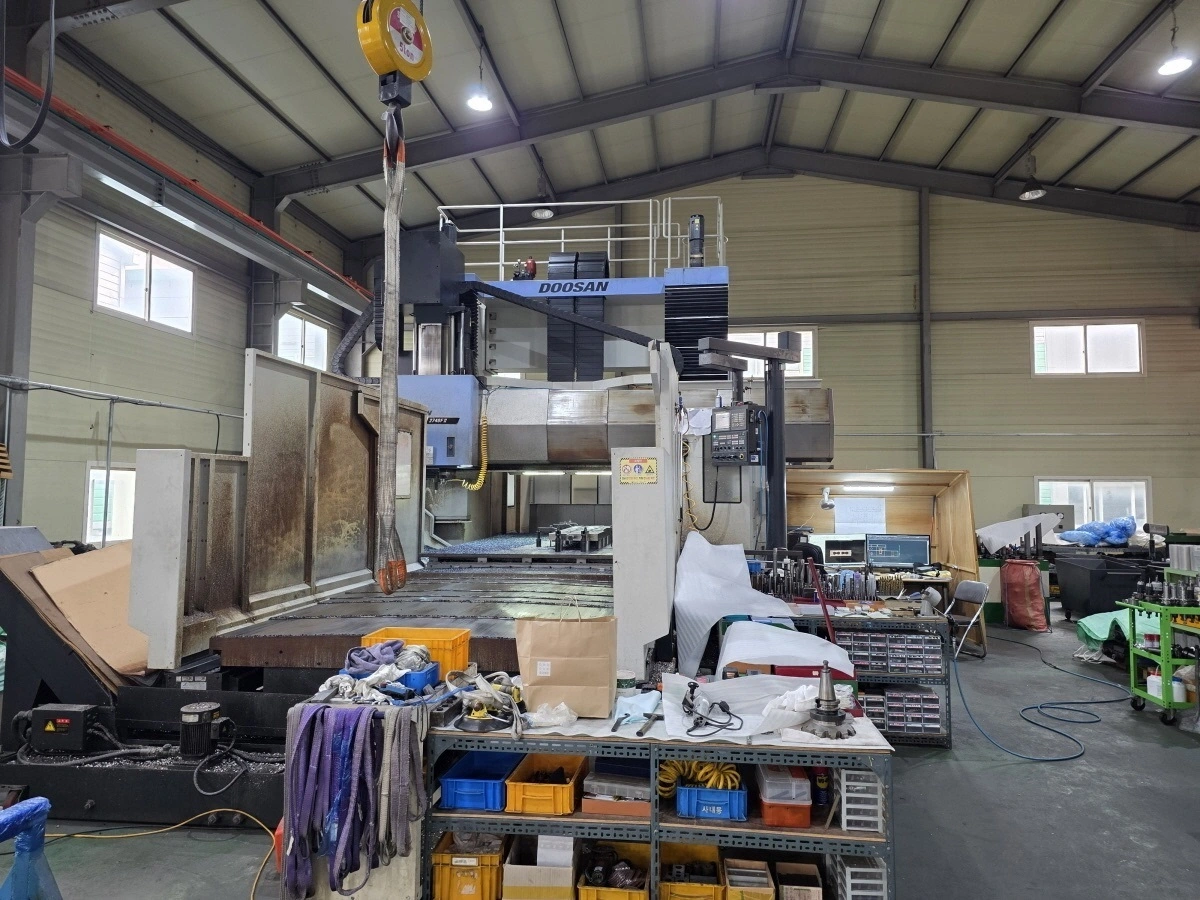

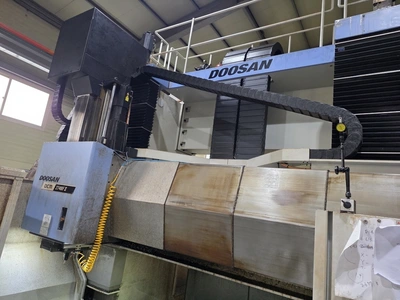

For sale: 2019 DOOSAN DCM 2740FII VMC Gantry Type CNC. Features a 161.4"x86.6" table, 167.3"x126"x27.6" travel, 6,000 RPM spindle, 60-tool changer, and FANUC 31IB control. Includes 4 station AAC, chip conveyor, and more. Machine weight: 143,298 lb.

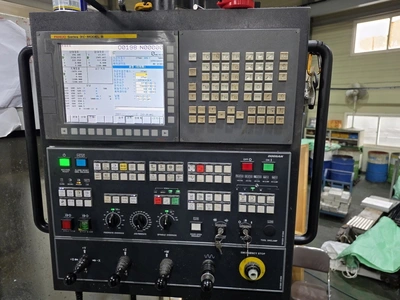

FANUC 31IB CNC CONTROL
4 STATION AAC
90 DEGREE HEAD (1 DEGREE INDEXING)
SCALES X,Y,Z,W
CHIP CONVEYOR
For sale: 2019 DOOSAN DCM 2740FII VMC Gantry Type CNC. Features a 161.4"x86.6" table, 167.3"x126"x27.6" travel, 6,000 RPM spindle, 60-tool changer, and FANUC 31IB control. Includes 4 station AAC, chip conveyor, and more. Machine weight: 143,298 lb.
Imperial
| Number Of Tables / Pallets | 1 |
| Table Size - L | 161.4" |
| Table Size - W | 86.6" |
| Weight on Table | 44,091 lb |
| Distance Between Columns | 106.3" |
| Spindle Nose to Table Top | 78.7 |
| X - Axis Travel | 167.3" |
| Y - Axis Travel | 126" |
| Z - Axis Travel | 27.6" |
| W - Axis Positions | 43.3" |
| C - Axis Indexing | 1 Degree |
| Rapid Traverse Rate - X | 629.9 in/min. |
| Rapid Traverse Rate - Y | 787.4 ipm |
| Rapid Traverse Rate - Z | 590.6 ipm |
| Cutting Feedrate | 393.7 in/min. |
| Spindle Speed | 6,000 RPM |
| Spindle Taper | 50 |
| Main Motor | 37 hp |
| Automatic Tool Changer | 60 |
| Tool Diameter | 5.1" / 9.8" |
| Tool Length | 15.7" |
| Tool Weight | 66.1 lb |
| Machine Weight | 143,298 lb |
| Dimensions | 337.2" x 495.7" x 303.1" |
FANUC 31IB CNC CONTROL
4 STATION AAC
90 DEGREE HEAD (1 DEGREE INDEXING)
SCALES X,Y,Z,W
CHIP CONVEYOR
