| Pallet Size - L | 31.5" | 800.1 mm |
| Pallet Size - W | 31.5" | 800.1 mm |
| Number of Pallets | 2 | 2 |
| Pallet Weight Capacity | 4,409 lb | 1,999.9 kg |
| Pallet Surface to Spindle Center | 2.8" ~ 44.3" | 2.8" ~ 44.3" |
| Pallet Center To Spindle Gage Line | 5.9" ~ 53.1" | 5.9" ~ 53.1" |
| Workpiece Dimensions | 57.1" x 61" | 57.1" x 61" |
| X - AxisTravel | 55.1" | 1,399.5 mm |
| Y - Axis Travel | 41.3" | 1,049 mm |
| Z - Axis Travel | 47.2" | 1,198.9 mm |
| B - Axis Travel | 1 DEGREE | 1 DEGREE |
| Rapid Traverse Rate - X | 945 in/min. | 24 m/min. |
| Rapid Traverse Rate - Y | 945 ipm | |
| Rapid Traverse Rate - Z | 945 ipm | |
| Cutting Feed Rate | 472 in/sec. | 719.3 m/min. |
| Spindle Speed | 6,000 RPM | 6,000 RPM |
| Spindle Taper | 50 | 50 |
| Number of Ranges | 2 | 2 |
| Main Motor | 46.9 hp | 35 kW |
| Automatic Tool Changer | 60 | 60 |
| Tool Diameter | 5.1", 12.6" | 5.1", 12.6" |
| Tool Length | 24.8" | 629.92 mm |
| Tool Weight | 66 lb | 29.9 kg |
| Control | CNC (FANUC 31I - B CNC COLOR CONTROL) | CNC (FANUC 31I - B CNC COLOR CONTROL) |
| Weight | 57000.00 | 57000.00 |
FANUC 31IB CNC COLOR CONTROL
AICC II 200 BLOCKS
640 METERS MEMORY
RENISHAW TS27R TOOL SETTER
PORTABLE MPG
EMBEDDED ETHERNET FUNCTION

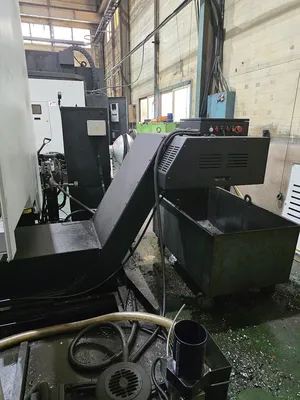

CHIP CONVEYOR
BIG PLUS SPINDLE
AIR BLOWER
SPINDLE AIR CURTAIN
AUTO POWER OFF
OIL SKIMMER
200 PAIRS OF TOOL OFFSETS
HAND HELD MPG
EMBEDDED ETHERNET OPTION
WORK COORDINATE 48 PAIRS
COOLANT THRU SPINDLE
