DN SOLUTIONS PUMA 4100B CNC UNIVERSAL TURNING CENTER

DN SOLUTIONS PUMA 4100B CNC UNIVERSAL TURNING CENTER

Have one to sell?
(847) 669 9781
mike@usedcncllc.com
ConditionUsed
1 available
Have one to sell?

Overview

Type:
Lathes CNC, 2-Axis & 3-Axis
Manufacturer:
DN SOLUTIONS
Model:
PUMA 4100B
Year:
2024
Stock #:
10175
Status:
For Sale
Serial #:
ML0278-000520

Description

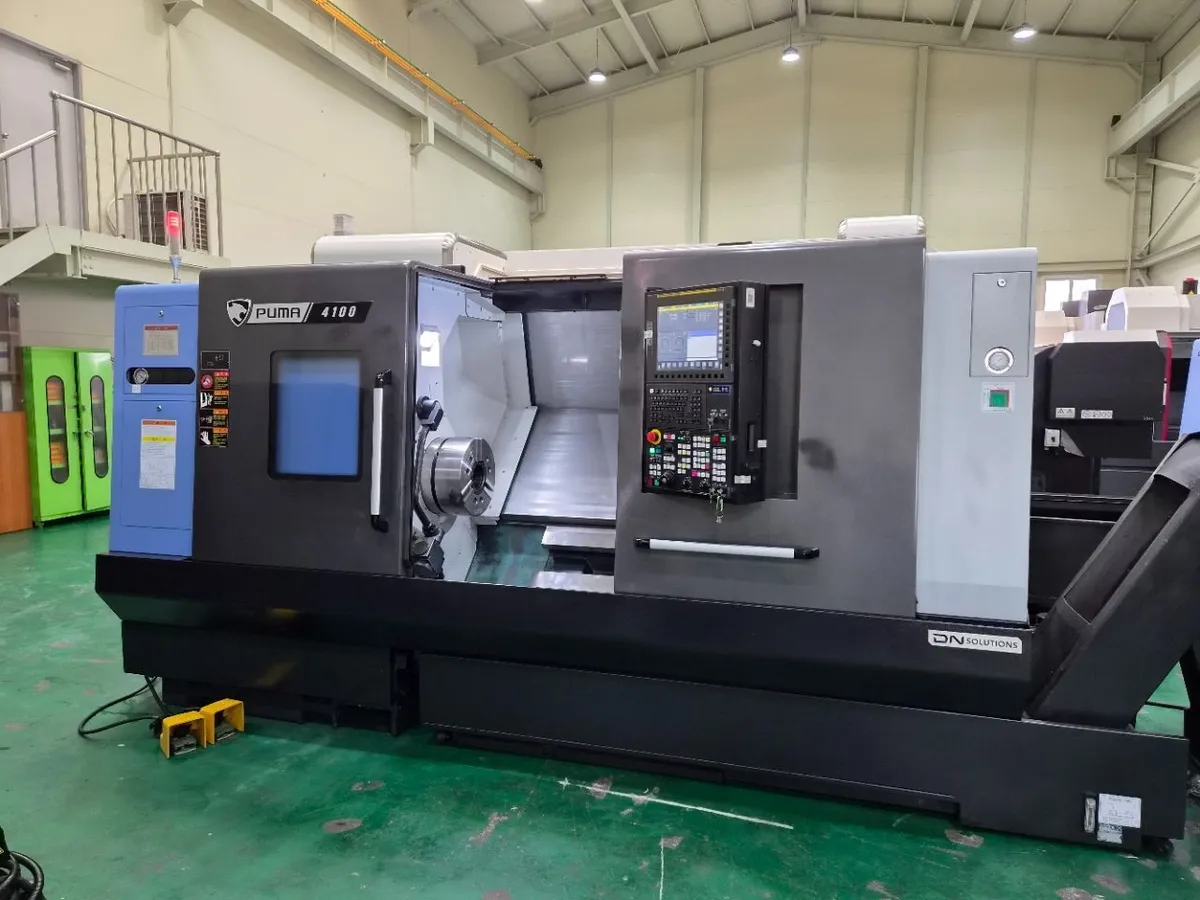

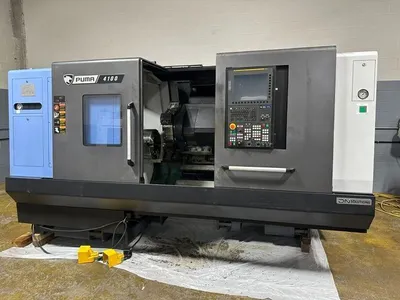

Explore precision with the 2024 DN SOLUTIONS PUMA 4100B CNC Universal Turning Center. Equipped for versatile 2-axis turning capabilities, it features a 15" chuck, 50 HP spindle, and a machining length of 41.1 and turning diameter of 21.7". Tool setter and chip conveyor included.

Swing Over Bed31.1"789.94 mm
Machining Length41.1"1,043.9 mm
Distance Between Centers43.5"1,104.9 mm
Turning Diameter, Shaft Diameter22"558.8 mm
Distance Between Spindles0"0 mm
Chuck Size 115"381 mm
Spindle Nose 1A2 - 11A2 - 11
Spindle Bore Diameter 15.2"132.08 mm
Spindle Bar Capacity 14.6"116.84 mm
Spindle Speeds 12,000 RPM2,000 RPM
Spindle Horsepower 150 hp37.3 kW
X1 - Axis Travel13.9"353.06 mm
Z1 - Axis Travel43.5"1,104.9 mm
Rapid Traverse Rate - X1707 in/min.299.3 mm/sec.
Rapid Traverse Rate - Z1787 in/min.333.2 mm/sec.
Gear Ranges22

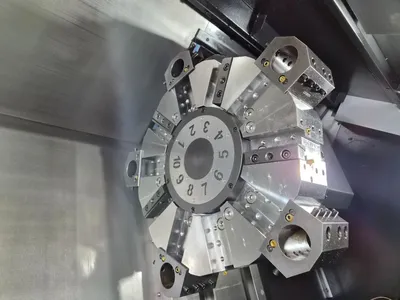

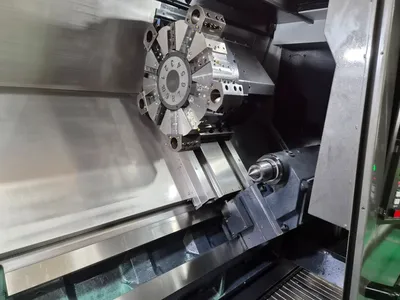

Turret Configuration 11010
Tailstock Quill Diameter4.7"119.38 mm
Tailstock TaperMT 6MT 6
Tailstock Quill Travel4.7"119.38 mm
Programmable TailstockYESYES
Tailstock Travel39.4"1,000.8 mm
# Axis22
Bar Capacity4.6"116.84 mm
Tailstock'Yes''Yes'
Live Tooling'No''No'
Sub Spindle'No''No'
ControlCNC (FANUC SERIES I PLUS CNC COLOR CONTROL)CNC (FANUC SERIES I PLUS CNC COLOR CONTROL)
Weight0.000.00

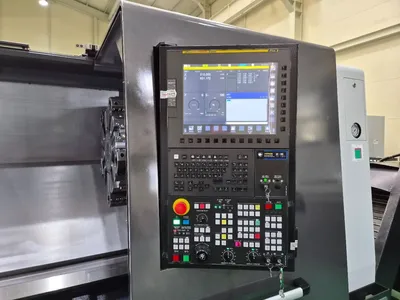

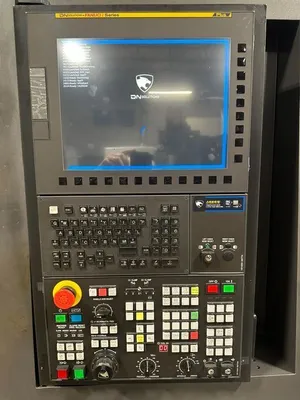

FANUC SERIES I PLUS CNC COLOR CONTROL
2MB PROGRAM STORAGE 5120M
DOOSAN EASY OPERATING SYSTEM (EZI AND MACHINING CYCLES)
PROGRAMMABLE TAILSTOCK
CHUCK CLAMP CONFIRM
DUAL PRESSURE CHUCKING
LIVE CENTER
SPINDLE CHILLER
CUSTOM MACRO
DOOSAN TOOL LOAD MONITORING
EMBEDDED ETHERNET FUNCTION
USB

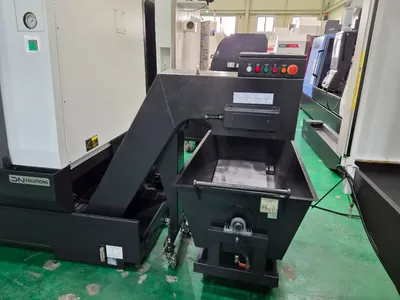

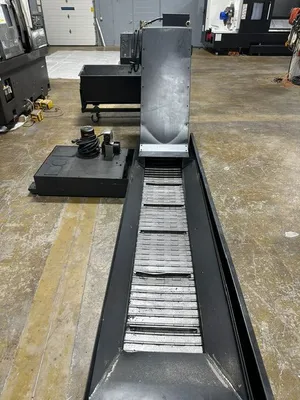

CHIP CONVEYOR
CHIP BUCKET
128 TOOL OFFSETS
WORK COORDINATE 8 PAIRS
SIGNAL TOWER
FANUC SERIES I CNC CONTROL

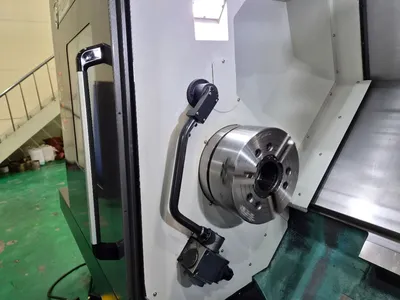

TOOL SETTER

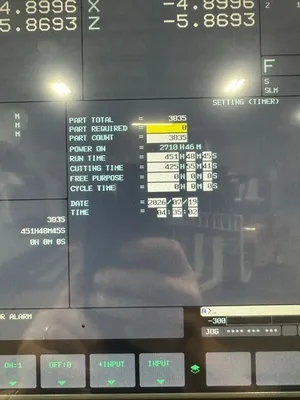

425 CUTTING HOURS
