DOOSAN NHM 6300 CNC HORIZONTAL MACHINING CENTER

DOOSAN NHM 6300 CNC HORIZONTAL MACHINING CENTER

Have one to sell?
(847) 669 9781
mike@usedcncllc.com
ConditionUsed
1 available
Have one to sell?

Overview

Type:
Horizontal Machining Centers
Manufacturer:
DOOSAN
Model:
NHM 6300
Year:
2018
Stock #:
10176
Status:
For Sale
Serial #:
MH0016-000355

Description

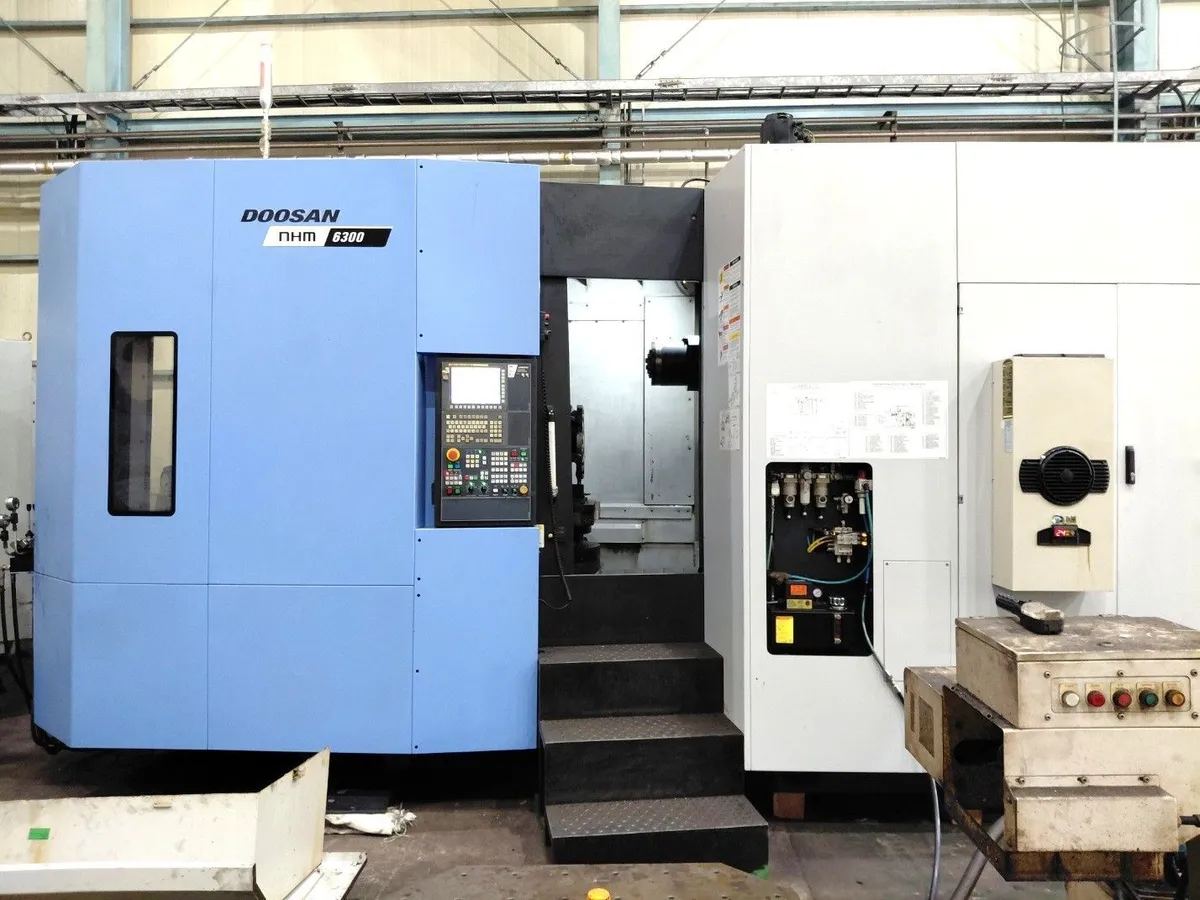

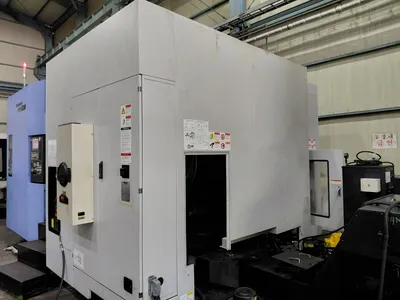

2018 Doosan NHM 6300 CNC Horizontal Machining Center with 2 pallets, FANUC 31iB control, Big Plus spindle, 6,000 RPM, 60-tool changer, and high pressure coolant through spindle system and part probing. Optimize precision machining with robust specs and advanced features.

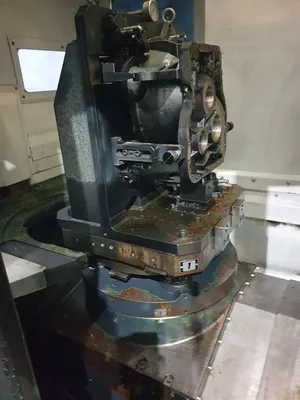

Pallet Size - L24.8 mm0.9764"
Pallet Size - W24.8 mm0.9764"

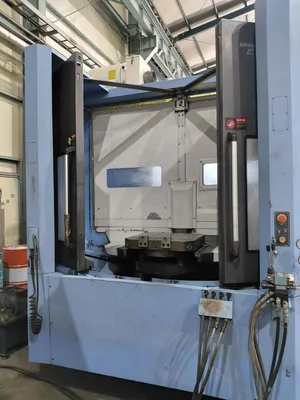

Number of Pallets22
Pallet Weight Capacity3,307 lb1,500 kg
Pallet Surface to Spindle Center3.0" ~ 38.4"3.0" ~ 38.4"
Pallet Center To Spindle Gage Line3.9" ~ 43.3"3.9" ~ 43.3"
Workpiece Dimensions41.3" x 53.1" (H)41.3" x 53.1" (H)
X - AxisTravel41.3 mm1.626"
Y - Axis Travel35.4 mm1.3937"
Z - Axis Travel39.4 mm1.5512"
B - Axis Travel1 degree1 degree
Rapid Traverse Rate - X1,968 in/min.50 m/min.
Rapid Traverse Rate - Y1968 ipm
Rapid Traverse Rate - Z1968 ipm
Spindle Speed6,000 RPM6,000 RPM
Spindle Taper50 CT50 CT
Number of Ranges22
Main Motor50 kW67.1 hp

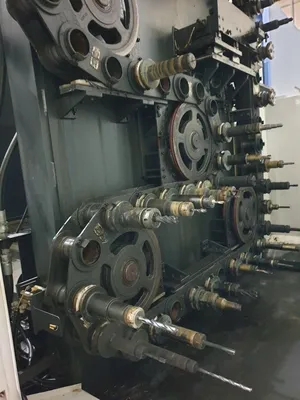

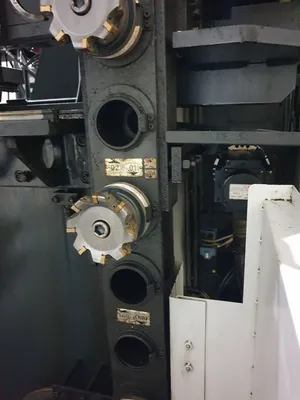

Automatic Tool Changer6060
Tool Diameter4.9", 12.6"4.9", 12.6"
Tool Length27.6"701.04 mm
Tool Weight55.1 lb25 kg
Machine Weight39,700 lb18,007.6 kg
ControlCNC (FANUC 31I-B CNC COLOR CONTROL)CNC (FANUC 31I-B CNC COLOR CONTROL)
Weight39700.0039700.00

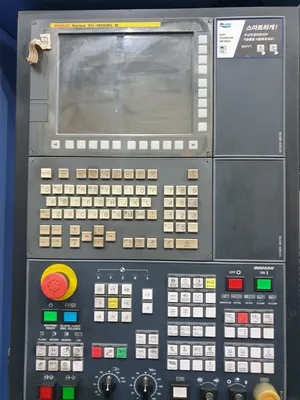

FANUC 31IB CNC COLOR CONTROL
2MB 5120 METERS MEMORY
EMBEDDED ETHERNET
AICII 200 BLOCKS

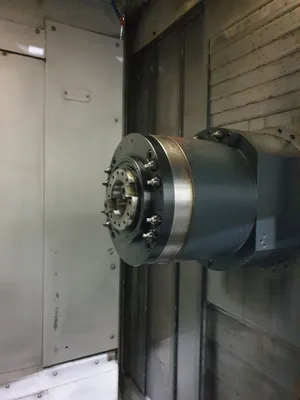

BIG PLUS SPINDLE

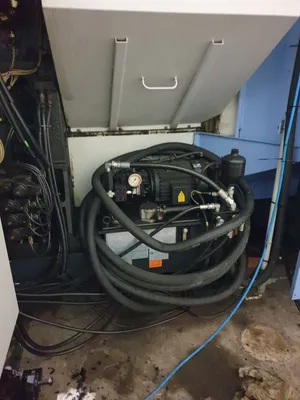

THRU SPINDLE COOLANT
SPINDLE AIR CURTAIN
SHOWER COOLANT

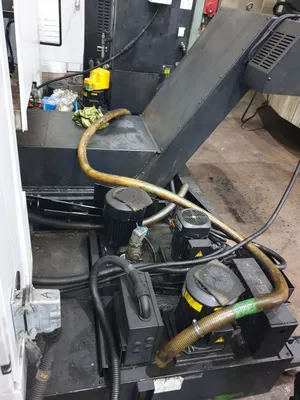

CHIP CONVEYOR

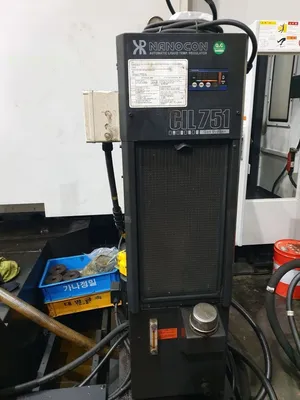

SPINDLE CHILLER
AIR CONDITIONER
200 PAIRS TOOL OFFSETS
FLOOD & FLUSHING COOLANT
PCMCIA CARD SLOT
USB PORT
PORTABLE HAND HELD MPG
RIGID TAPPING
CUSTOM MACRO
RENISHAW OMP 60 PART PROBE

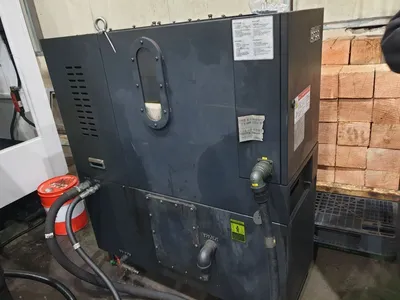

MIST COLLECTOR
ELECTRIC CABINET LIGHT
