| Swing Over Bed | 27.5" | 698.5 mm |
| Turning Diameter | 26.4" | 670.56 mm |
| Turning Length | 60.2" | 1,529.1 mm |
| Chuck Size 1 | 12" | 304.8 mm |
| Spindle Nose 1 | A2 - 8 | A2 - 8 |
| Spindle Bore Diameter 1 | 3.58" | 90.932 mm |
| Bar Capacity 1 | 3.1" | 78.74 mm |
| Spindle Speeds 1 | 4,000 RPM | 4,000 RPM |
| Spindle Horsepower 1 | 25 hp | 18.6 kW |
| Chuck Size 2 | 12" | 304.8 mm |
| Spindle Nose 2 | A2 - 8 | A2 - 8 |
| Spindle Speeds 2 | 3,000 RPM | 3,000 RPM |
| Spindle Horsepower 2 | 25 hp | 18.6 kW |
| B - Axis Head Travel | + - 120 DEGREES | + - 120 DEGREES |
| B - Axis Head Indexing | 0.0001 | 0.0001 |

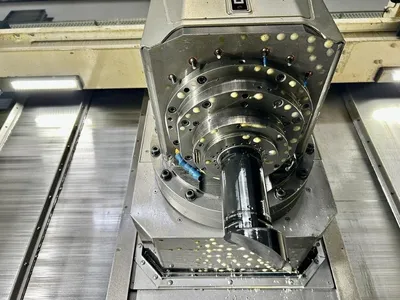

| B - Axis Milling Spindle Taper | CAPTO C6 | CAPTO C6 |
| B - Axis Milling Spindle Speed | 12,000 RPM | 12,000 RPM |
| B - Axis Milling Spindle Horse Power | 30 hp | 22.4 kW |
| ATC For Milling Spindle | 76 | 76 |
| Tool Diameter | 2.7", 5.1" | 2.7", 5.1" |
| Tool Length | 15.7" | 398.78 mm |
| Tool Weight | 17.6 lb | 8 kg |
| X1 - Axis Travel | 26.5" | 673.1 mm |
| Z1 - Axis Travel | 67.8" | 1,722.1 mm |
| Y1 - Axis Travel | 11.2" | 284.48 mm |
| C - Axis Indexing 1 | 0.00 | 0.00 |
| C - Axis Indexing 2 | 0.00 | 0.00 |
| W - Axis Travel Sub Spindle | 60.7" | 1,541.8 mm |
| Rapid Traverse Rate - X1 | 1574 ipm | |
| Rapid Traverse Rate - X2 | 787 ipm | |
| Rapid Traverse Rate - Z1 | 1968 ipm | |
| Rapid Traverse Rate - Z2 | 1417 ipm | |
| Rapid Traverse Rate - Y1 | 1574 ipm | |
| Turret Tool Positions 1 | 10 station | 10 station |
| Machine Weight | 19,800 lb | 8,981.1 kg |
| Control | CNC (CELOS W/ FANUC 31I-B5 CNC COLOR CONTROL) | CNC (CELOS W/ FANUC 31I-B5 CNC COLOR CONTROL) |

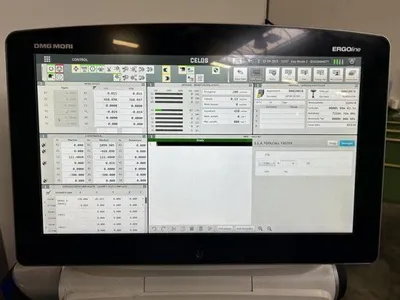

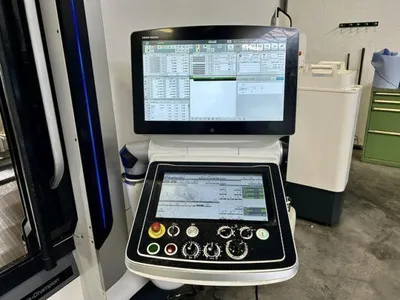

CELOS W/ FANUC 31I-B5 CNC COLOR CONTROL
CELOS MAPPS OPERATING SYSTEM
DIRECT SCALE FEEDBACK X, AXIS, Y AXIS, Z AXIS
IN MACHINE WORKPIECE MEASUREING SYSTEM
RENISHAW RMP RADIO SIGNAL TRANSMISSION TOUCH SENSOR PROBE
RENISHAW MULTI AXIS INSPECTION SOFTWARE
76AUTO TOOL CHANGER
AUTOMATIC IN MACHINE TOOL PRESETTER FOR TOOL SPINDLE
AUTO MATIC DOOR
SIGNAL LAMP 4 COLORS

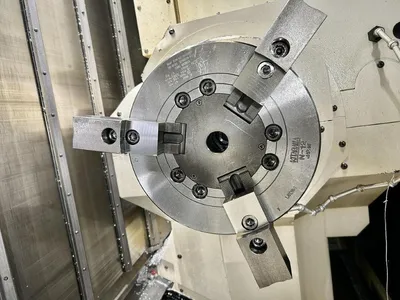

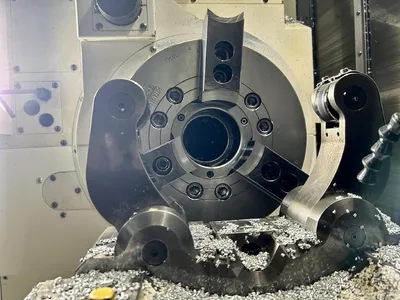

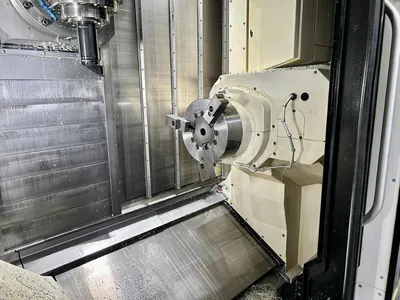

12" 3-JAW HYDRAUIC CHUCK ON SPINDLE 1 AND SPINDLE 2
CHIP CONVEYOR
INTERFACE FOR SUPER HIGH PRESSURE COOLANT

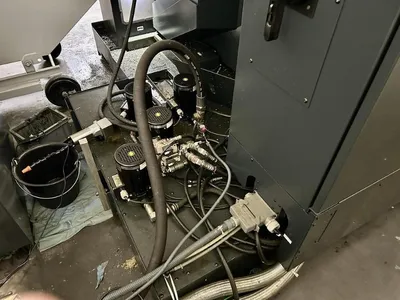

HIGH PRESSURE COOLANT SYSTEM THRU B AXIS 1000 PSI

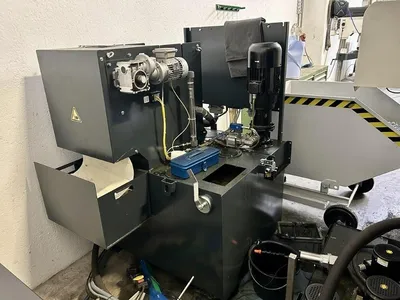

INTERLIT TMF 300/600 FILTER UNIT 70 BAR (1000PSI)

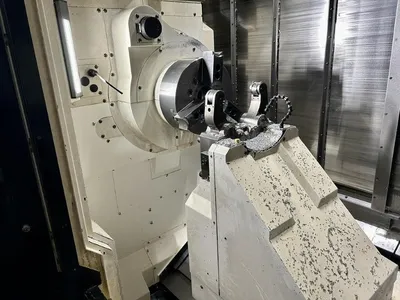

SMW PROGRAMMABLE SERVO DRIVEN STEADY REST SLU-X 3.1 .78" ~ 6.5"
ETHERNET I / P
WORKPIECE UNLOADER
COOLANT GUN
AIR BLOW FOR CHUCK SPINDLE 2
MIST COLLECTOR SYSTEM
WORKPIECE UNLOADER, WORKPIECE UNLOAD CONVEYOR = WORK PIECE STOCKER
ROBOT INTERFACE (ETHERNET/IP)
SAFETY FENCE INTERFACE I/F (ELECTRI I/F)
BAR FEED INTERFACE (LNS I/F)
10 EXTERNAL M CODES
VOLTAGE 200V 3 PHASE
TECHNOLOGY SOFTWARE CYCLE
3D QUICK SET (WITHOUT CALIBRATION SPHERE)
MPC (MACHINE PROTECTION CONTROL)
PROGRAM RESTART, ADDITIONAL OPTIONAL BLOCK SKIP
MANUAL PULSE GENERATOR
MULTI DRY FILTER
SIGNAL LAMP 4 COLORS
