DMG MORI HSC 105 LINEAR CNC HIGH SPEED 3 AXIS MACHINING CENTER

DMG MORI HSC 105 LINEAR CNC HIGH SPEED 3 AXIS MACHINING CENTER

Have one to sell?
(847) 669 9781
mike@usedcncllc.com
ConditionUsed
1 available
Have one to sell?

Overview

Type:
CNC 5 Axis Machines
Manufacturer:
DMG MORI
Model:
HSC 105 LINEAR
Year:
2016
Stock #:
10180
Status:
For Sale
Serial #:
29195612264

Description

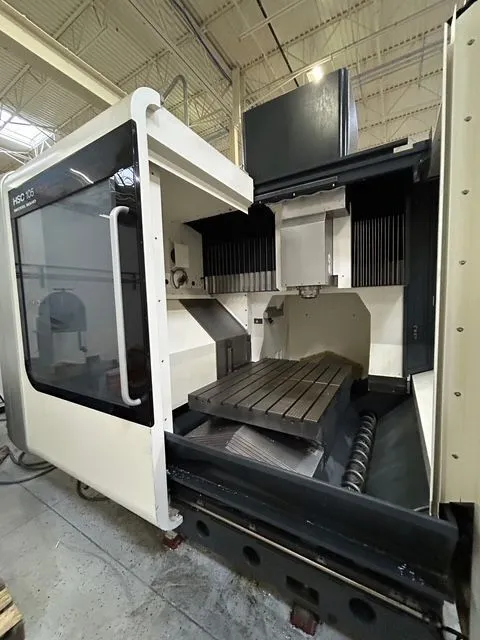

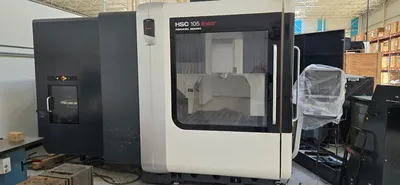

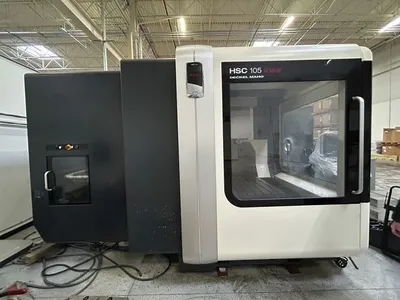

2016 DMG MORI HSC 105 LINEAR CNC Machining Center, 3 Axis, used. Features 40hp spindle at 28,000 RPM, table 47.2"x33.5", tool changer for 60, full Siemens control, Renishaw probes. Includes chip conveyor, bed flushing, high-pressure coolant system.

Number Of Tables / Pallets11

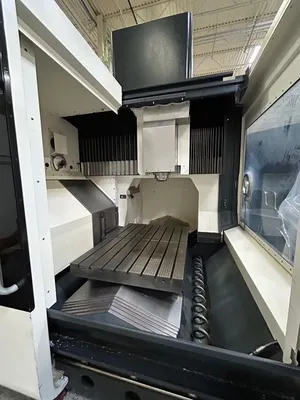

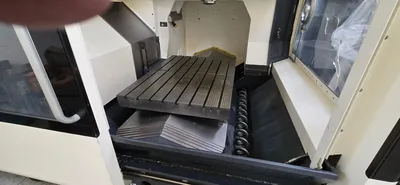

Table Size - L47.2"1,198.9 mm
Table Size - W33.5"850.9 mm
Weight On Table3,960 lb1,796.2 kg

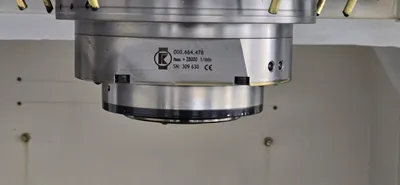

Main Spindle Horse Power40 hp29.8 kW
Main Spindle Speeds28,000 RPM28,000 RPM
Main Spindle TaperHSK 63HSK 63
X - Axis Travel43.7"1,110 mm
Y - Axis Travel31.5"800.1 mm
Z - Axis Travel23.6"599.44 mm
Rapid Traverse Rate - X3,543 in/min.90 m/min.
Rapid Traverse Rate - Y3,543 in/min.90 m/min.
Rapid Traverse Rate - Z3,543 in/min.90 m/min.
Cutting Feed Rate3,543 in/min.90 m/min.

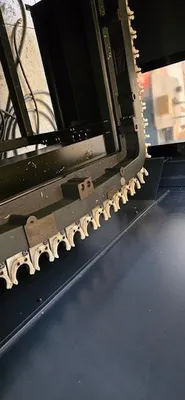

Automatic Tool Changer6060
Tool Diameter3.1" / 5.5"3.1" / 5.5"
Tool Length11.8"299.72 mm
Machine Weight26,840 lb12,174.4 kg
ControlCNC (CELOS SIEMENS 840D SL CNC COLOR CONTROL)CNC (CELOS SIEMENS 840D SL CNC COLOR CONTROL)
Weight0.000.00

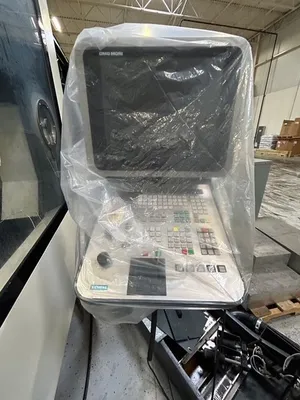

SIEMENS 840D SL CNC COLOR CONTROL
EXTENSION TEMPERATURE COMPENSATION
RENISHAW PROBE PART PROBE
RENISHAW TOOL MEASUREMENT PROBE

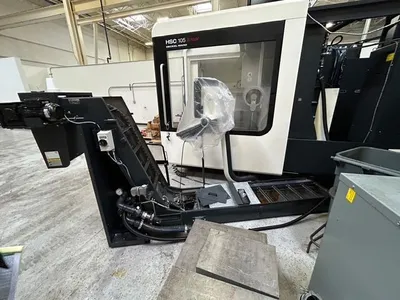

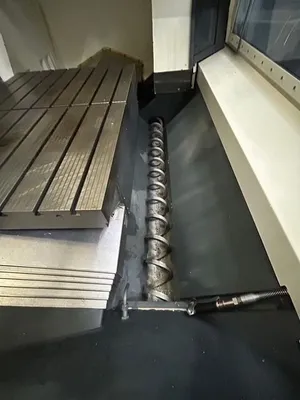

CHIP CONVEYOR
HIGH PRESSURE COOLANT 1000 PSI

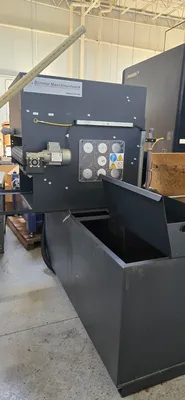

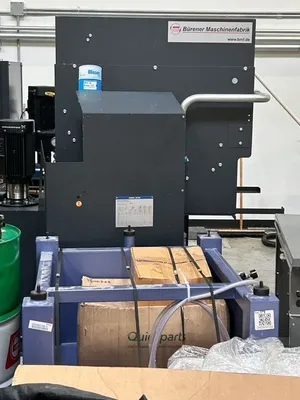

PAPER FILTRATION
BED FLUSHING
SCALE FEED BACK ALL AXIS
TRANSFORMER
