DOOSAN DBC 110II 4.3" BAR CNC 4 AXIS HORIZONTAL BORING MILL

DOOSAN DBC 110II 4.3" BAR CNC 4 AXIS HORIZONTAL BORING MILL

Have one to sell?
(847) 669 9781
mike@usedcncllc.com
ConditionUsed
1 available
Have one to sell?

Overview

Type:
Boring Mills Horizontal Table Type
Manufacturer:
DOOSAN
Model:
DBC 110
Year:
2011
Stock #:
10184
Status:
For Sale

Description

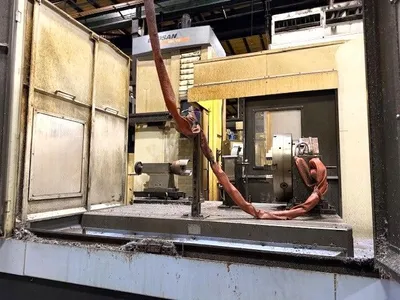

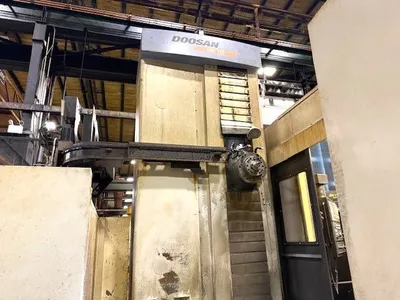

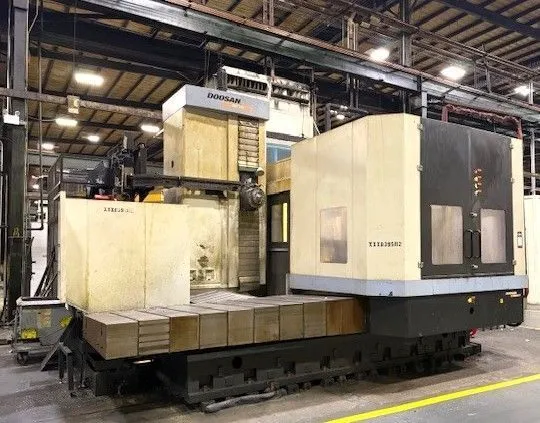

For sale: 2011 DOOSAN DBC 110II CNC 4 Axis Boring Mill. Key features: 63" x 55" table, 4.3" spindle, 3,000 RPM, 78.7" X-axis travel. Equipped with FANUC control, spindle chiller, and more. Ideal for complex machining tasks. Contact for details.

Table Size - L70.8"1,798.3 mm
Table Size - W55"1,397 mm
Table Capacity15,432 lb6,999.8 kg
Table Indexing.001.001
Spindle Nose To Table Center2.9" ~ 68.9"2.9" ~ 68.9"
Spindle Nose To Table Top0" ~ 59"0" ~ 59"

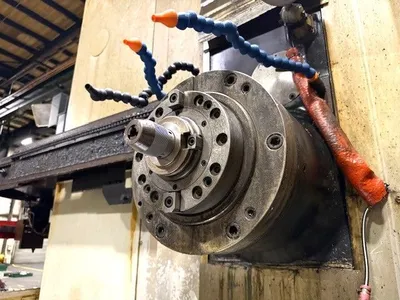

Spindle Diameter4.3"109.22 mm
Spindle Taper5050
Spindle Speed4,000 RPM4,000 RPM
Spindle Torque20922092
Number Of Ranges22
Main Motor35 hp26.1 kW
X - Axis Travel78.7"1,999 mm
Y - Axis Travel59.1"1,501.1 mm
Z - Axis Travel47.2"1,198.9 mm
W - Axis Travel19.7"500.38 mm

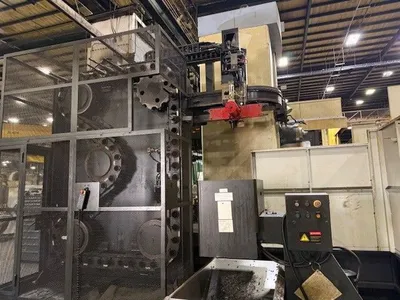

Automatic Tool Changer Capacity6060
Tool Diameter5.1", 9.8"5.1", 9.8"
Max Tool Length23.6"599.44 mm
Max Tool Weight55.1 lb25 kg
Machine Weight63,933 lb28,999.6 kg
ControlCNC (FANUC 31i - A CNC COLOR CONTROL)CNC (FANUC 31i - A CNC COLOR CONTROL)
Weight0.000.00

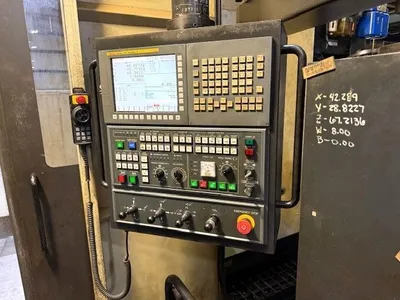

FANUC 31I - A CNC COLOR CONTROL
DOOSAN EZ GUIDE I CONVERSATIONAL PROGRAMMING
640 METERS PART PROGRAM STORAGE
AICC II 200 BLOCKS
3RD AND 4TH REFERENCE POSITION RETURN
HELICAL INTERPOLATION
SPINDLE THERMAL COMPENSATION
48 PAIRS WORK COORDINATES
200 TOOL OFFSETS
THROUGH SPINDLE COOLANT
FULL HIGH TOP SPLASH GUARDING
BIG PLUS CAT 50 TAPER
R.S. 232 PORT
HELICAL INTERPOLATION
SYNCHRONOUS TAPPING
SPINDLE CHILLER
STEEL WAY COVERS
EMBEDDED ETHERNET FUNCTION
SPINDLE CHILLER
HAND HELD MPG

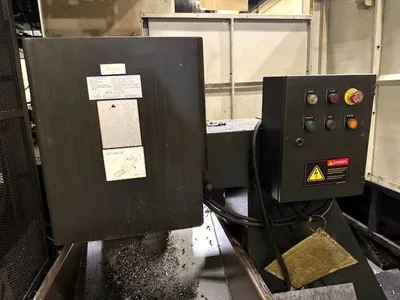

CHIP CONVEYOR OUTSIDE/UPRIGHT
ALL AVAILABLE MANUALS
