| Number Of Tables / Pallets | 1 | 1 |
| Table Size - L | 39.3" | 998.22 mm |
| Table Size - W | 29.5" | 749.3 mm |
| Weight On Table | 2,200 lb | 997.9 kg |

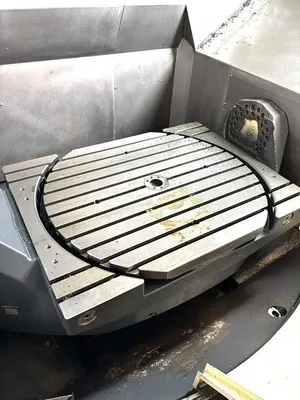

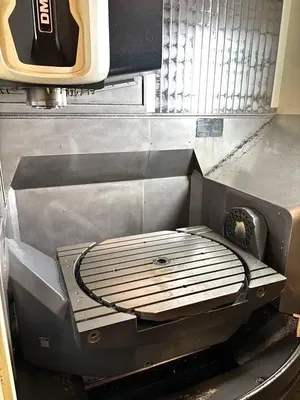

| Integrated NC Rotary Table Size | 33.4" | 848.36 mm |
| Main Spindle Horse Power | 46.9 hp | 35 kW |
| Main Spindle Speeds | 20,000 RPM | 20,000 RPM |
| Max Workpiece Diameter and Height | 40.9" X 23.2" HT. | 40.9" X 23.2" HT. |
| Main Spindle Taper | HSK A63.0 | HSK A63.0 |
| X - Axis Travel | 37.4" | 949.96 mm |
| Y - Axis Travel | 33.5" | 850.9 mm |
| Z - Axis Travel | 25.6" | 650.24 mm |
| A - Axis Travel | + - 120 DEGREES | + - 120 DEGREES |
| C - Axis Travel Table Indexing | 360 DEGREES | 360 DEGREES |
| Rapid Traverse Rate - X | 1,576 in/min. | 40 m/min. |
| Rapid Traverse Rate - Y | 1,576 in/min. | 40 m/min. |
| Rapid Traverse Rate - Z | 1,576 in/min. | 40 m/min. |
| Cutting Feed Rate | 1,576 in/min. | 40 m/min. |
| Vertical Turning Table Size, Number Of Tables | 0 | 0 |
| Vertical Turning Table Speed | 0 RPM | 0 RPM |
| Vertical Turning Table Horse Power | 0 hp | 0 kW |
| Automatic Tool Changer | 60 | 60 |
| Tool Diameter | 3.14", 6.3" | 3.14", 6.3" |
| Tool Length | 16.5" | 419.1 mm |
| Tool Weight | 17.6 lb | 8 kg |
| Machine Weight | 39,462 lb | 17,899.7 kg |
| Control | CNC (HEIDENAIN TNC 640 3D CNC CONTROL) | CNC (HEIDENAIN TNC 640 3D CNC CONTROL) |
| Weight | 0.00 | 0.00 |

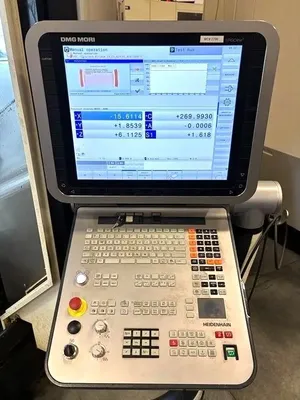

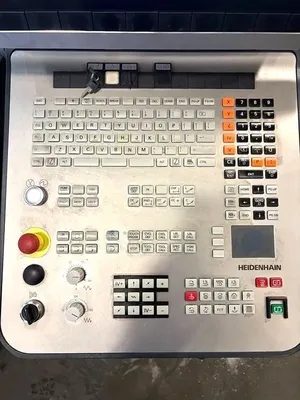

HEIDENHAIN TNC 640 3D CNC CONTROL
SPEED MASTER SPINDLE 20,000 RPM
MDYNAMICS PACKAGE
MPC MACHINE PROTECTION CONTROL
SAFETY PACKAGEFOR POWER FAILURE
SPRAY PISTAL WITH PUMP
ROTATING CLEARVIEW WINDOW
COOLANT RING JET
3D QUICKSET
CHIP CONVEYOR
INFRARED MEASURING PROBING RENISHAW SK
BLUM LASER TOOL LENGTH MEASUREMENT

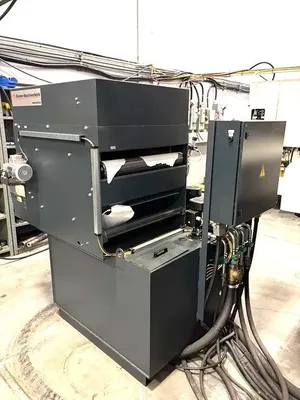

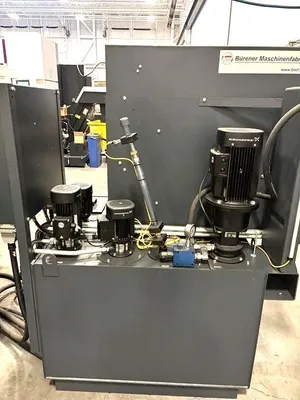

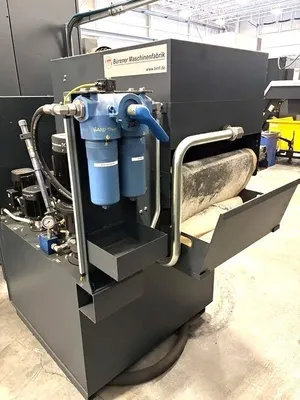

PRODUCTION PACKAGE 40 BAR/23L/MIN 500L TANK COOLANT THRU SPINDLE AND FILTRATION

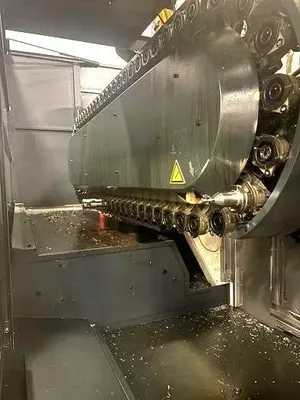

HSK A63 WITH 60 ATC
HAND HELD REMOTE PULSE GENERATOR
INNER COOLED BALL SCREWS
OPTIMAL 3 POINT SUPPORT SYSTEM
3D SIMULTANEOUS GRAPHICS
DYNAMIC COLLISION MONITORING (DCM)
SIMULTANEOUS 5 AXIS MILLING B-AXIS
4 COLOR SIGNAL LIGHT
TRANSFORMER
