Equipment
Vertical Machining Centers
Vertical Machining Centers

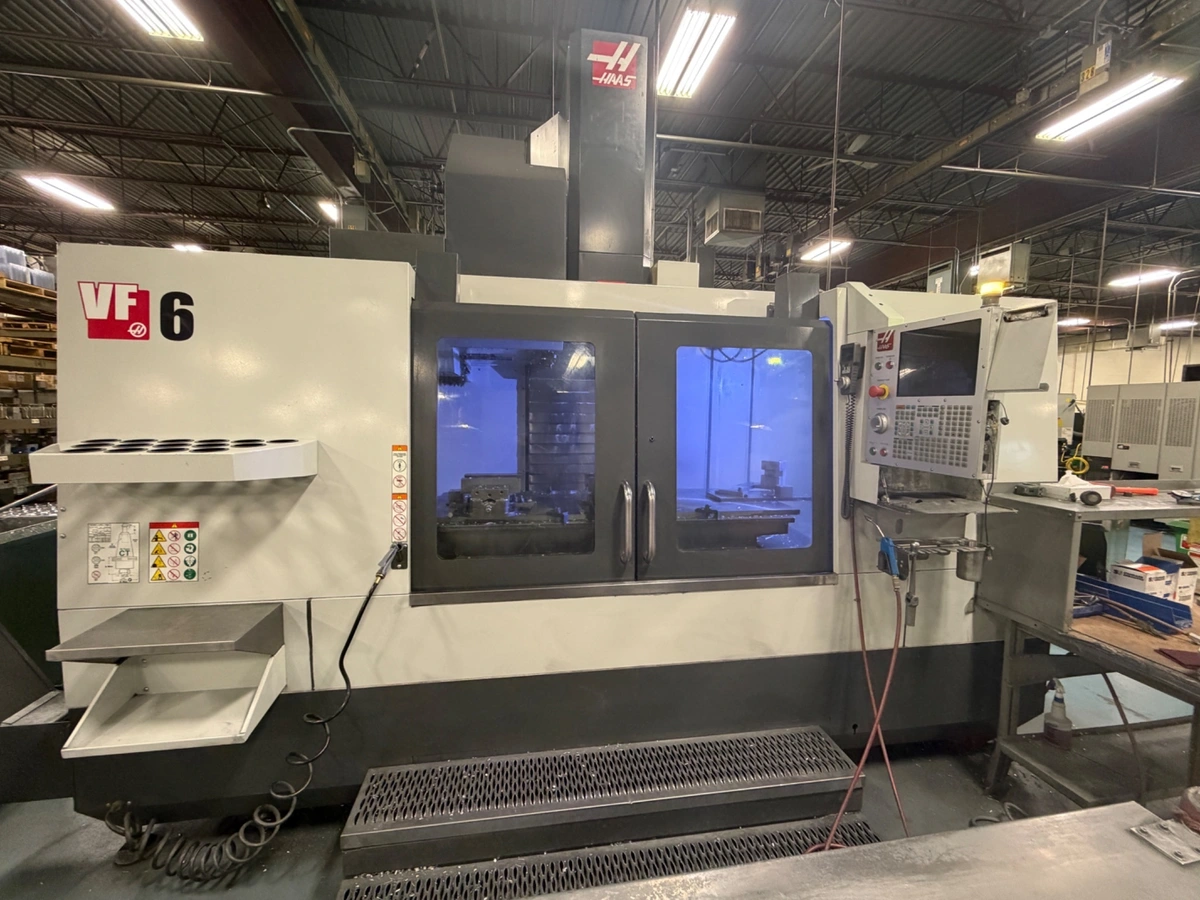

HAAS VF 6/50 CNC VERTICAL MACHINING CENTER WIRED FOR 4TH and 5TH AXIS

HAAS VF 6/50 CNC VERTICAL MACHINING CENTER WIRED FOR 4TH and 5TH AXIS

Have one to sell?
(847) 669 9781
mike@usedcncllc.com
ConditionUsed
1 available
Have one to sell?

Overview

Type:
Vertical Machining Centers
Manufacturer:
HAAS
Model:
VF 6/50
Year:
2020
Stock #:
10187
Status:
For Sale

Description

2020 HAAS VF 6/50 CNC Machining Center, used. Features 64"x28" table, 10,000 RPM spindle speed, 30 hp motor, wired for 4th/5th axis. Includes HAAS CNC control, wireless probing, coolant thru spindle, chip conveyance, and more. Ideal for precision work.

Number Of Tables / Pallets11
Table-L64"1,625.6 mm
Table-W28"711.2 mm
Weight on Table4,000 lb1,814.4 kg
Spindle Nose to Table Top5" ~ 35"5" ~ 35"
X - Axis Travel64"1,625.6 mm
Y - Axis Travel32"812.8 mm
Z - Axis Travel30"762 mm
Rapid Traverse Rate - X600 in/min.15.2 m/min.
Rapid Traverse Rate - Y600 in/min.15.2 m/min.
Rapid Traverse Rate - Z600 in/min.15.2 m/min.
Cutting Feed Rate500 in/min.12.7 m/min.
Spindle Speed7,500 RPM7,500 RPM
Spindle Taper5050
Number of Gear Ranges22
Main Motor30 hp22.4 kW
Automatic Tool Changer3030
Tool Diameter5.35.3
Tool Length16"406.4 mm
Tool Weight30 lb13.6 kg
Automatic Tool Changer3030
Weight26000.0026000.00

HAAS CNC CONTROL
WIRED FOR 4TH & 5TH AXIS
COOLANT THRU SPINDLE 1000 PSI
AUXILARY COOLANT FILTRATION SYSTEM
RENISHAW PART PROBE WIRELESS INTUITIVE PROBING
UPRIGHT OUTSIDE CHIP CONVEYOR
4 CHIP AUGER SYSTEM
MACROS
SCALING & ROTATION
TCPC & DWO
RIGID TAPPING, M-19 SPINDLE ORIENTATION
VPS EDITING
MEDIA DISPALY
COMPENSATION TABLES
REMOTE HANDHELD MPG
