| Number Of Tables / Pallets | 1 | 1 |
| Table-L | 157.5" | 4,000.5 mm |
| Table-W | 98.4" | 2,499.4 mm |
| Weight on Table | 33,068 lb | 14,999.4 kg |
| Spindle Nose to Table Top | 5.9"" ~ 39.37" | 5.9"" ~ 39.37" |
| X - Axis Travel | 157.5" | 4,000.5 mm |
| Y - Axis Travel | 106.3" | 2,700 mm |
| Z - Axis Travel | 31.5" | 800.1 mm |
| Rapid Traverse Rate - X | 475 in/min. | 12.1 m/min. |
| Rapid Traverse Rate - Y | 630 in/min. | 16 m/min. |
| Rapid Traverse Rate - Z | 630 in/min. | 16 m/min. |
| Cutting Feed Rate | 0 in/min. | 0 m/min. |
| Spindle Speed | 12,000 RPM | 12,000 RPM |
| Spindle Taper | 50 | 50 |
| Number of Gear Ranges | 2 | 2 |
| Main Motor | 40 hp | 29.8 kW |
| Tool Diameter | 4.9", 8.7" | 4.9", 8.7" |
| Tool Length | 15.7" | 398.78 mm |
| Tool Weight | 40 lb | 18.1 kg |
| Machine Weight | 105,820 lb | 47,999.2 kg |
| Automatic Tool Changer | 40 | 40 |

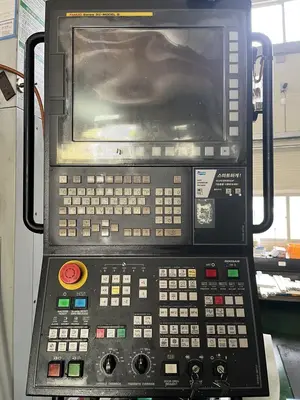

| Control | CNC (FANUC 31I-B CNC COLOR CONTROL) | CNC (FANUC 31I-B CNC COLOR CONTROL) |
| Weight | 64000.00 | 64000.00 |

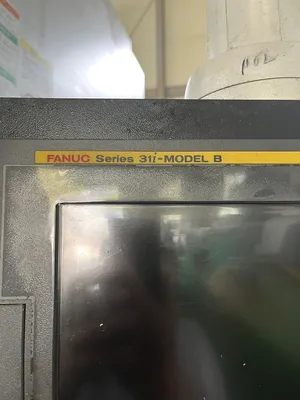

FANUC SERIES 31I-B CNC COLORCONTROL
DISTANCE BETWEEN COLUMNS 106.3"
CHIP CONVEYOR
XYZ SCALES
SPLASH GUARD
COOLANT THRU SPINDLE
SMOOTH BACKLASH COMPENSATION
AICCII DSQI 200 BLOCK
RIGID TAPPING
TOOL NOSE RADIUS, CUSTOM MACRO
USB MEMORY INTERFACE, EMBEDED ETHERNET
640 METER OF MEMORY, 500 REGISTERED PROGRAMS
This equipment is currently unavailable. Similar equipment available now is shown below.
