MAZAK NEXUS 700E/40-II CNC 4 AXIS VERTICAL MACHINING CENTER

MAZAK NEXUS 700E/40-II CNC 4 AXIS VERTICAL MACHINING CENTER

Have one to sell?
(847) 669 9781
mike@usedcncllc.com
ConditionUsed
1 available
Have one to sell?

Overview

Type:
Vertical Machining Centers
Manufacturer:
MAZAK
Model:
NEXUS VCN 700E/40-II
Year:
2016
Stock #:
10190
Status:
For Sale
Serial #:
268867
Number Of Tables / Pallets11
Table-L80"2,032 mm
Table-W27.6"701.04 mm
Weight on Table5,511 lb2,499.8 kg
Spindle Nose to Table Top7.87" ~ 36.22"7.87" ~ 36.22"
X - Axis Travel80"2,032 mm
Y - Axis Travel27.6"701.04 mm
Z - Axis Travel28.3"718.82 mm
Rapid Traverse Rate - X1,181 in/min.30 m/min.
Rapid Traverse Rate - Y1,181 in/min.30 m/min.
Rapid Traverse Rate - Z790 in/min.20.1 m/min.
Cutting Feed Rate1,181 in/min.30 m/min.
Spindle Speed12,000 RPM12,000 RPM
Spindle Taper40 CT40 CT
Main Motor30 hp22.4 kW
Automatic Tool Changer3030
Tool Diameter3.25", 4.92"3.25", 4.92"
Tool Length17.7"449.58 mm
Tool Weight24 lb10.9 kg
Machine Weight31,500 lb14,288.2 kg
ControlCNC (MAZATROL MATRIX 2 CNC COLOR CONTROL)CNC (MAZATROL MATRIX 2 CNC COLOR CONTROL)
Weight0.000.00

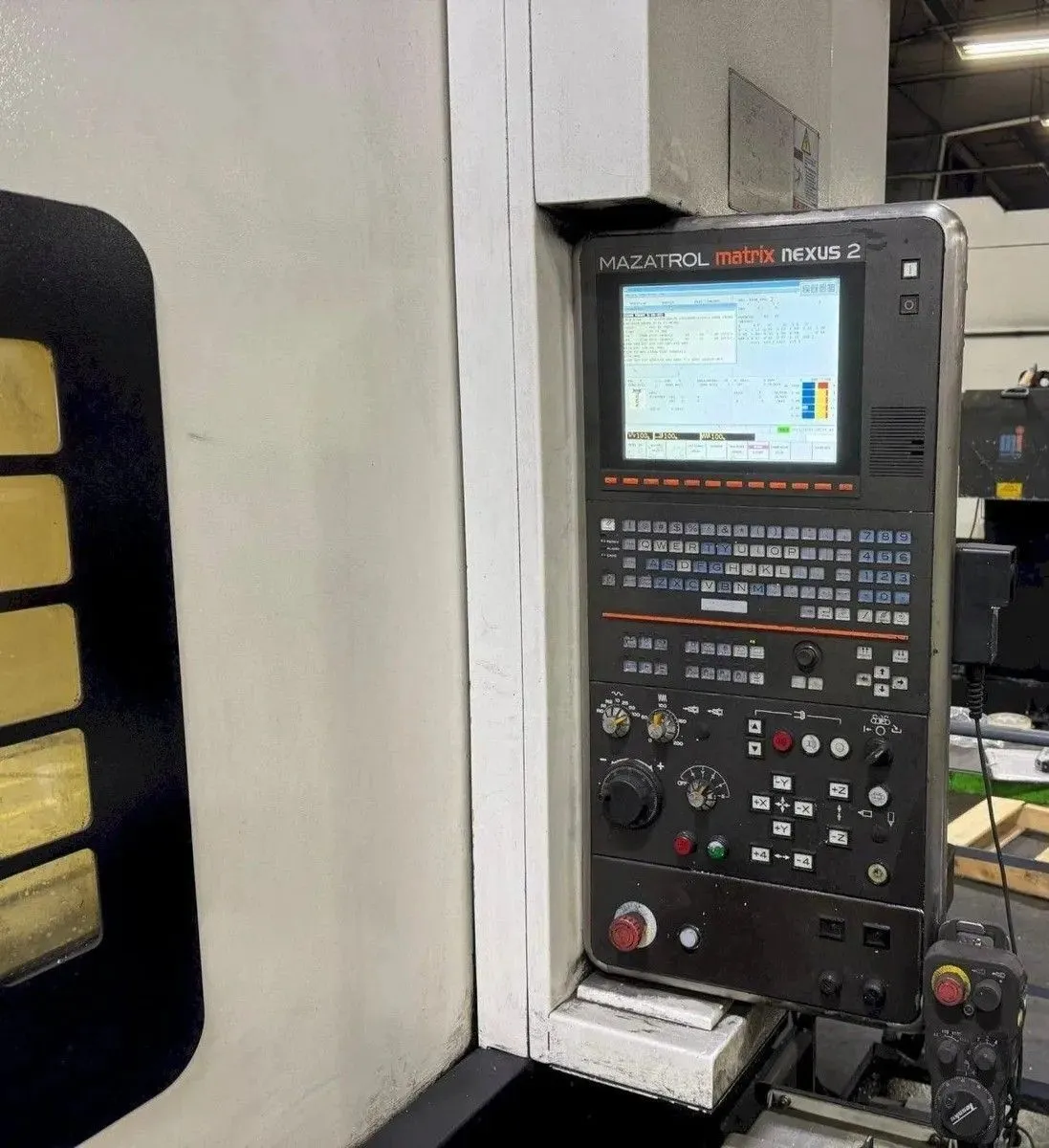

MAZATROL MATRIX 2 CNC CONTROL 12.1 COLOR
BIG PLUS SPINDLE
INCH/METRIC
HIGH PRESSURE COOLANT SYSTEM 213PSI
ADD. EIA / ISO FUNCTIONS (REQ. EIA / ISO)
EIA/ISO CODE INPUT FUNCTION
LAN PORT
USB I/F 2 PORT
SYNCHRONIZED TAP
MAZACC-2D SOFTWARE (SHAPE COMP)
REMOTE HAND HELD PULSE GENERATOR
TRANSFORMER
CHIP CONVEYOR
NIKKEN 302MA 4TH AXIS ROTARY TABLE PACKAGE
5040 CUTTING HOURS
