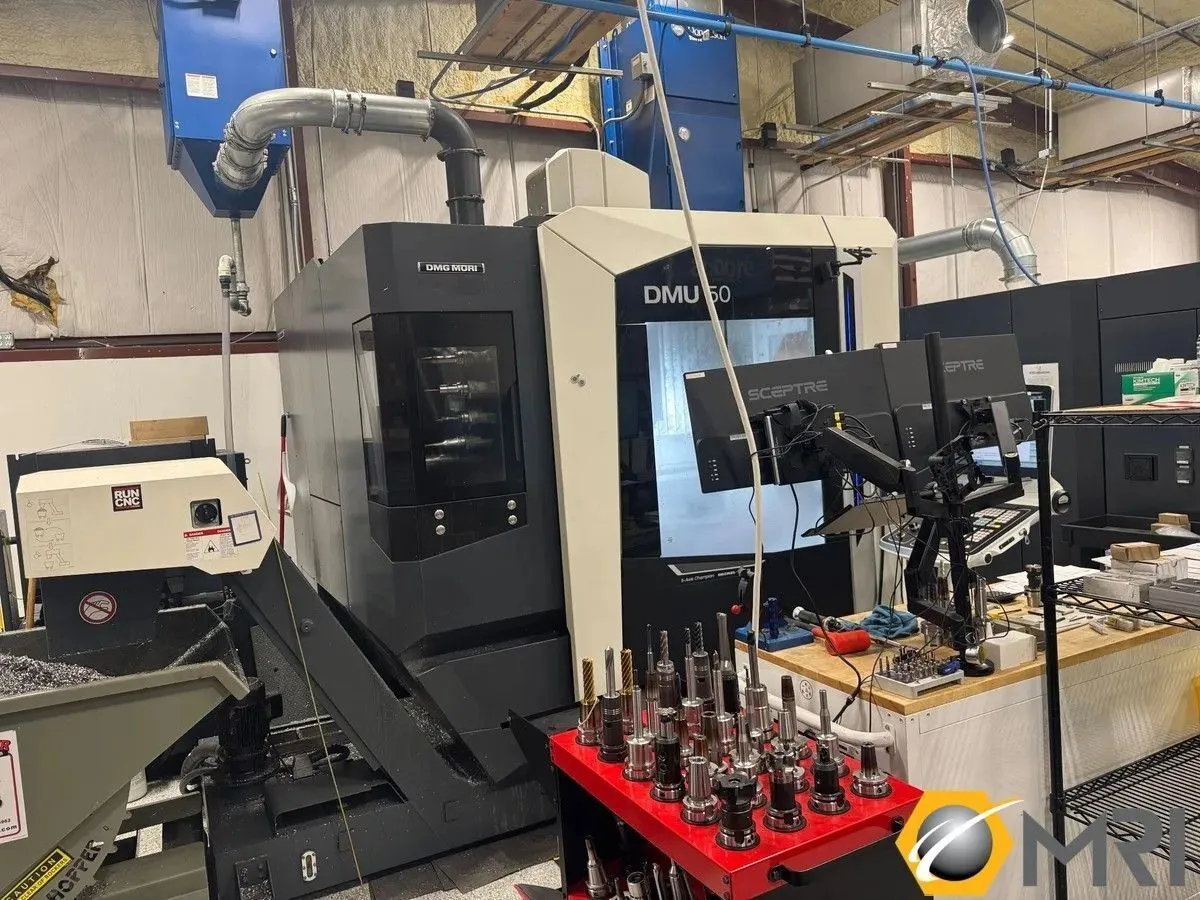

DMG MORI DMU 50 GEN III CNC 5 AXIS MACHINING CENTER
Have one to sell?
ConditionUsed
1 available
2019 DMG MORI DMU 50 GEN III CNC 5 Axis Machining Center, used, offers precision with 20,000 RPM spindle, 30-tool automatic changer, and advanced features like coolant thru spindle and linear scales. Robust design for exceptional performance in a compact footprint.
Number Of Tables / Pallets: 1
Table Size : 24.8" X 19.6"
Weight On Table: 660 LBS.
Integrated NC Rotary Table Size: 0
Spindle Nose To Table: 5.9" ~ 24.6"
Main Spindle Speeds: 15,000 RPM
Main Spindle Taper: 40 CT
Main Spindle Horse Power: 28 HP
X - Axis Travel: 25.59"
Y - Axis Travel: 20.4"
Z - Axis Travel: 18.7"
A - Axis Travel: -5 +110 DEGREES
B - Axis Travel: 360 DEGREES
C - Axis Travel Table Indexing: 0
Rapid Traverse X, Y, Z: 1654,1654,1654 IPM
Cutting Feed Rate: 0
Vertical Turning Table Size, Number Of Tables: 0
Vertical Turning Table Speed: 0
Vertical Turning Table Horse Power: 0
Automatic Tool Changer: 30 ATC
Tool Diameter: 3.14" ~ 5.11 "
Tool Length: 11.8"
Tool Weight: 13.2 LBS.
Machine Weight: 11,462 LBS

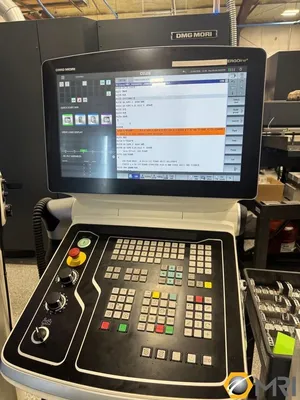

CELOS SIEMENS 840D SL CNC COLOR CONTROLL
3 D QUICK SET
CHIP CONVEYOR
HAND HELD REMOTE PULSE GENERATOR
SPRAY GUN FOR SWARF REMOVAL
AIR BLAST THROUGH SPINDLE CENTER
COOLANT THRU SPINDLE 40 BAR WITH PAPER FILTRATION SYSTEM
BLUM TOOL LENGTH LASER MEASUREMENT TOUCH PROBE
INFRARED MEASUREING PROBE PP60 OPTICAL
ROTATING CLEAR VIEW WINDOW
LINEAR SCALES ON ALL AXES

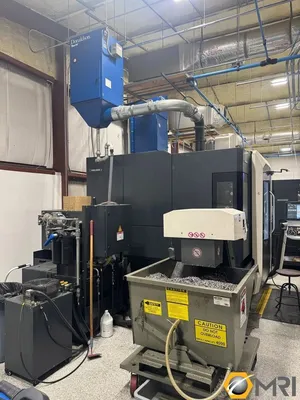

DONALDSON TORIT MIST COLLECT SYSTEM
