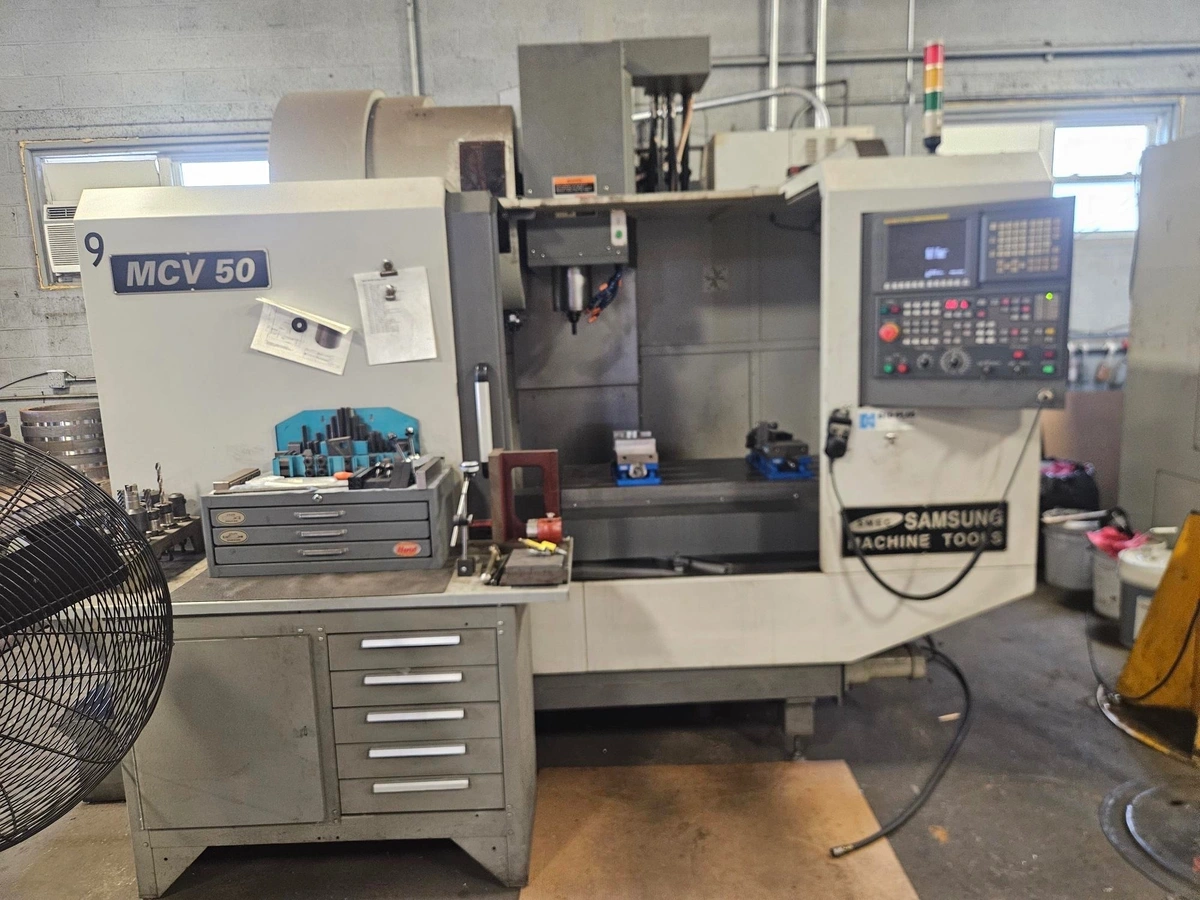

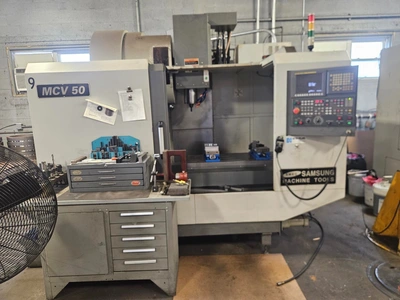

Used 2013 SMEC MCV 50 | Vertical Machining Centers
Have one to sell?
ConditionUsed
1 available

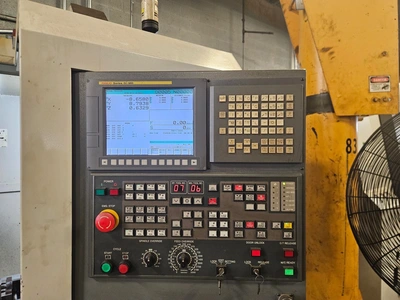

FANUC OIMD CNC CONTROL
COOLANT THRU SPINDLE 290 PSI
CHIP AUGER
Imperial
| Number Of Tables / Pallets | 1 |
| Table-L | 47.3" |
| Table-W | 20.1" |
| Weight on Table | 1,764 lb |
| Spindle Nose to Table Top | 5.91" - 26.38" |
| X - Axis Travel | 41.33" |
| Y - Axis Travel | 20.27" |
| Z - Axis Travel | 20.47" |
| Rapid Traverse Rate - X | 1,417 in/min. |
| Rapid Traverse Rate - Y | 1,417 in/min. |
| Rapid Traverse Rate - Z | 1,181 in/min. |
| Cutting Feed Rate | 590 in/min. |
| Spindle Speed | 12,000 RPM |
| Spindle Taper | CT 40 |
| Main Motor | 20 hp |
| Tool Diameter | 3.5" / 5.9" |
| Tool Length | 11.8" |
| Tool Weight | 17.6 lb |
| Machine Weight | 13,665 lb |
| Automatic Tool Changer | 30 |
| Dimensions | 122" x 81" x 106" |
FANUC OIMD CNC CONTROL
COOLANT THRU SPINDLE 290 PSI
CHIP AUGER
