HAAS VF 3 CNC VERTICAL MACHINING CENTER

Have one to sell?
(847) 669 9781
mike@usedcncllc.com
ConditionUsed
1 available
Have one to sell?

Overview

Type:
Vertical Machining Centers
Manufacturer:
HAAS
Model:
VF3
Year:
2011
Stock #:
10197
Status:
For Sale

Description

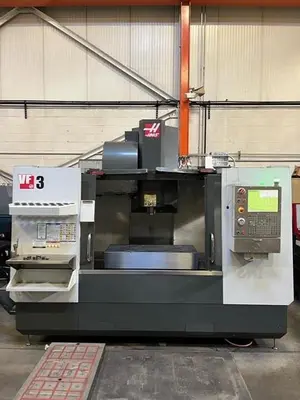

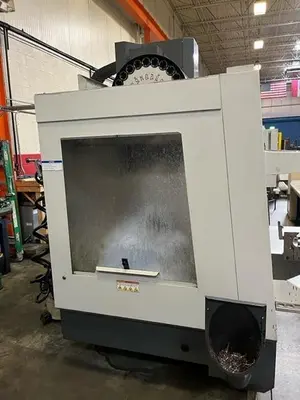

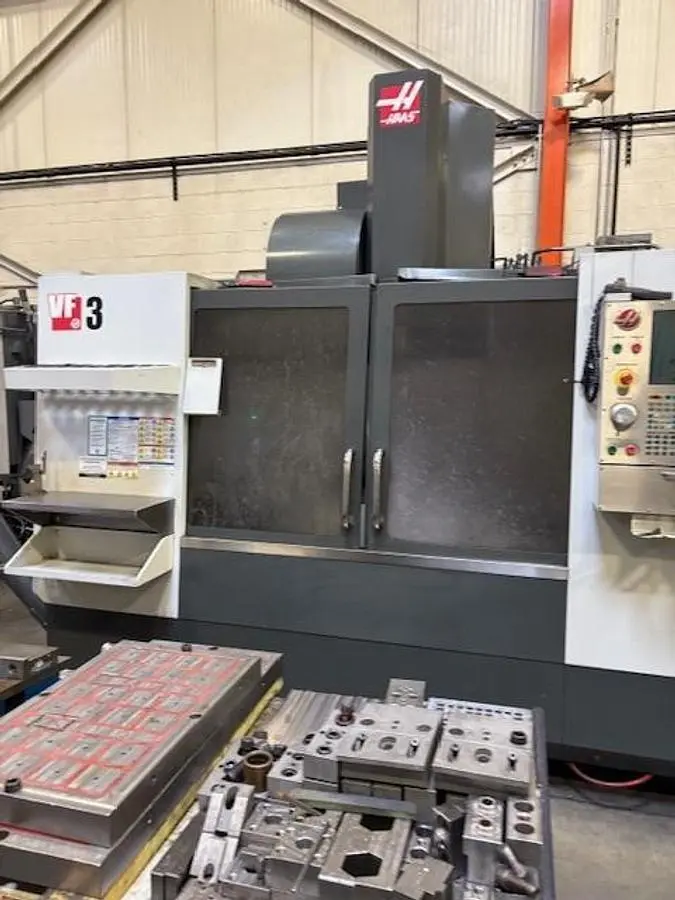

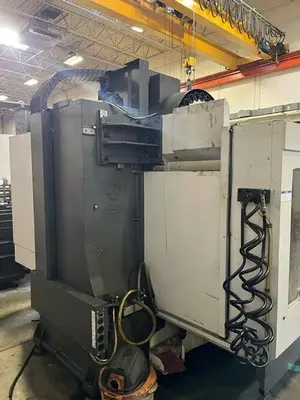

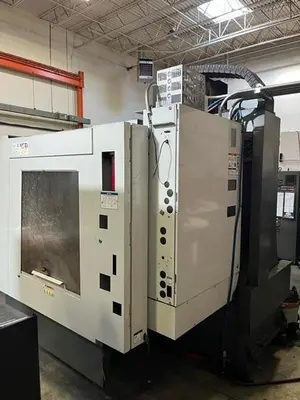

For sale: 2011 HAAS VF3 CNC Vertical Machining Center. Features single 48"x18" table, handles 3500 lbs table load, rapid traverse of 1000 IPM, and spindle speed up to 15,000 RPM. Equipped with HAAS CNC Control, rigid tapping, full enclosure, and more. Ideal for precision work.

Number Of Tables / Pallets11
Table-L48"1,219.2 mm
Table-W18"457.2 mm
Weight on Table3,500 lb1,587.6 kg
Spindle Nose to Table Top4' - 29''4' - 29''
X - Axis Travel40"1,016 mm
Y - Axis Travel20"508 mm
Z - Axis Travel25"635 mm
Rapid Traverse Rate - X1,000 in/min.25.4 m/min.
Rapid Traverse Rate - Y1,000 in/min.25.4 m/min.
Rapid Traverse Rate - Z1,000 in/min.25.4 m/min.
Spindle Speed15,000 RPM15,000 RPM
Spindle Taper4040
Main Motor30 hp22.4 kW
Automatic Tool Changer2424
Tool Diameter3.53.5
Tool Length12"304.8 mm
Tool Weight13 lb5.9 kg
Machine Weight14,000 lb6,350.3 kg
Automatic Tool Changer201201
ControlCNC (HAAS CNC CONTROL)CNC (HAAS CNC CONTROL)
Weight0.000.00

Table Size : 48'' X 18''
C - Axis Travel: 40''
C - Axis Travel: 20''
C - Axis Travel: 25''
Table Load Capacity: 3500 LBS.
Rapid Traverse Rate X, Y, Z: 1000 IPM
Spindle Nose To Table Top: 4''-29''
Spindle Nose : CAT # 40
Spindle Speed: 10,000 RPM
Number Of Gear Ranges: 2 Speed
Rapid Traverse Rate Z: 1000 IPM
Tool Magazine: 40 + 1 ATC
Tool Size (Square Shank): 30 HP AC
Machine Weight: 14,000 LBS.

HAAS CNC CONTROL
RIGID TAPPING
FULL ENCLOSURE
20 +1 SIDE MOUNT ATC
15,000 30HP
1000 IPM RAPIDS
CHIP AUGER
ALL AVAILABLE MANUALS
