| Number Of Tables / Pallets | 1 | 1 |
| Table-L | 48" | 1,219.2 mm |
| Table-W | 18" | 457.2 mm |
| Weight on Table | 3,500 lb | 1,587.6 kg |
| Spindle Nose to Table Top | 4' - 29'' | 4' - 29'' |
| X - Axis Travel | 40" | 1,016 mm |
| Y - Axis Travel | 20" | 508 mm |
| Z - Axis Travel | 25" | 635 mm |
| Rapid Traverse Rate - X | 1,000 in/min. | 25.4 m/min. |
| Rapid Traverse Rate - Y | 1,000 in/min. | 25.4 m/min. |
| Rapid Traverse Rate - Z | 1,000 in/min. | 25.4 m/min. |
| Spindle Speed | 8,100 RPM | 8,100 RPM |
| Spindle Taper | 40 | 40 |
| Main Motor | 20 hp | 14.9 kW |
| Tool Diameter | 3.5 | 3.5 |
| Tool Length | 13" | 330.2 mm |
| Tool Weight | 12 lb | 5.4 kg |
| Machine Weight | 12,500 lb | 5,669.9 kg |
| Automatic Tool Changer | 20 | 20 |
| Control | CNC (HAAS CNC CONTROL) | CNC (HAAS CNC CONTROL) |
| Weight | 0.00 | 0.00 |
HAAS CNC CONTROL
PROGRAMMABLE COOLANT NOZZLE
HIGH INTENSITY LIGHTING
SPINDLE ORIENTATION
USER DEFINED MACROS
COORDINATE ROTATION AND SCALING
WIPS WIRELESS INTUITIVE PROGRAMMING
RENISHAW TOOL AND PART PROBE
RIGID TAPPING
FULL ENCLOSURE
20 POSITION UMBRELLA TOOL CHANGER
CHIP AUGER
ALL AVAILABLE MANUALS
WIRED FOR 360-480 VOLTS

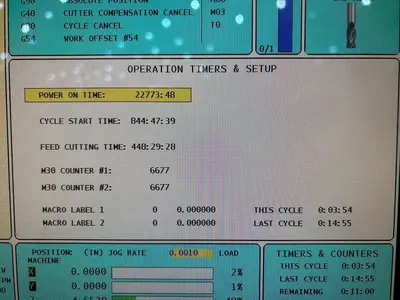

448 FEED HOURS
