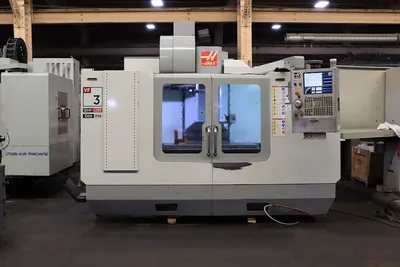

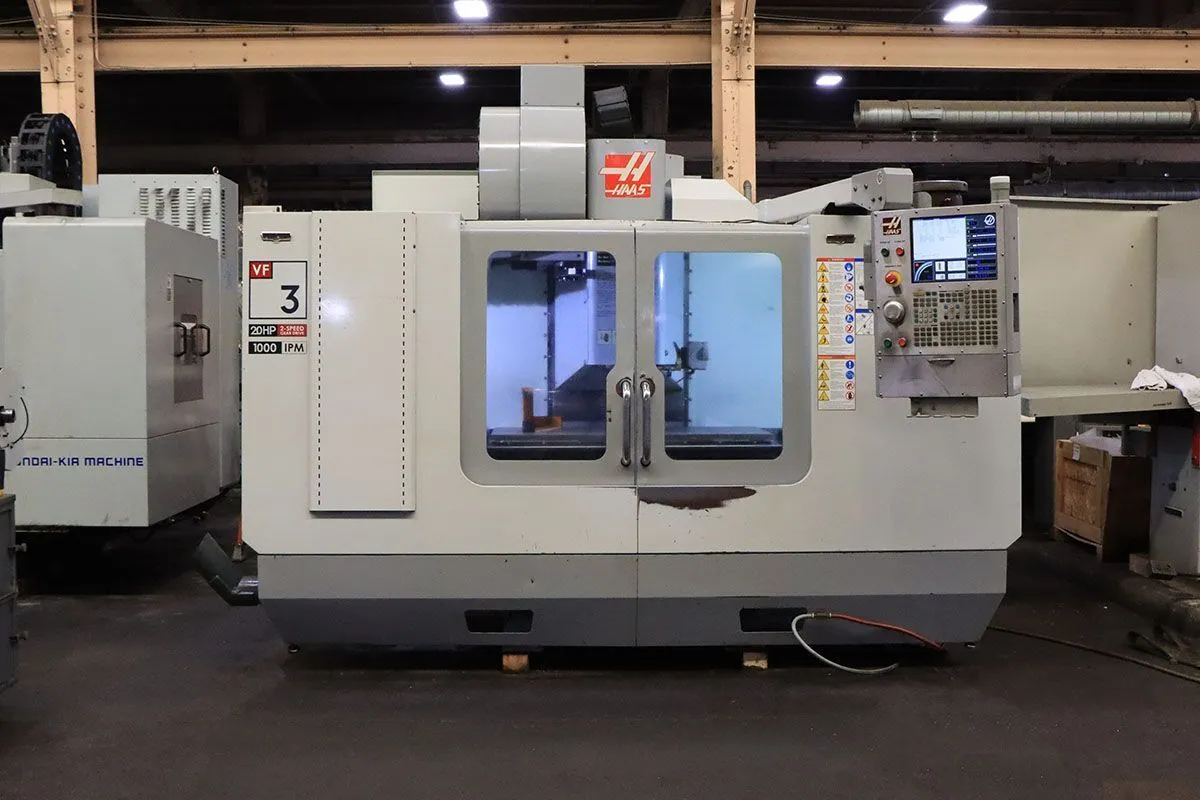

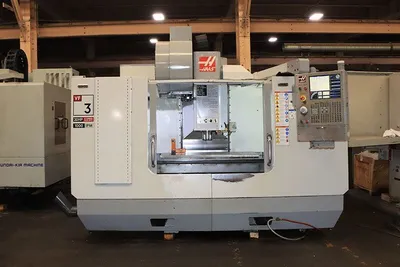

HAAS VF 3B CNC VERTICAL MACHINING CENTER
Have one to sell?
ConditionUsed
1 available

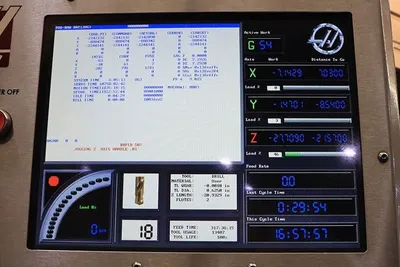

HAAS CNC CONTROL
WIRED FOR 4TH AXIS WITH DRIVE
HIGH INTENSITY LIGHTING
PROGRAMMABLE COOLANT NOZZLE
FULL ENCLOSURE
RIGID TAPPING
FULL ENCLOSURE
CHIP AUGER
ALL AVAILABLE MANUALS
Imperial
| Number Of Tables / Pallets | 1 |
| Table-L | 48" |
| Table-W | 18" |
| Weight on Table | 3,500 lb |
| Spindle Nose to Table Top | 4' - 29'' |
| X - Axis Travel | 40" |
| Y - Axis Travel | 20" |
| Z - Axis Travel | 25" |
| Rapid Traverse Rate - X | 1,000 in/min. |
| Rapid Traverse Rate - Y | 1,000 in/min. |
| Rapid Traverse Rate - Z | 1,000 in/min. |
| Spindle Speed | 7,500 RPM |
| Spindle Taper | 40 |
| Main Motor | 20 hp |
| Automatic Tool Changer | 24 |
| Tool Diameter | 3.5 |
| Tool Length | 12" |
| Tool Weight | 13 lb |
| Machine Weight | 12,500 lb |
| Automatic Tool Changer | 24 |
| Control | CNC (HAAS CNC CONTROL) |
| Weight | 0.00 |
HAAS CNC CONTROL
WIRED FOR 4TH AXIS WITH DRIVE
HIGH INTENSITY LIGHTING
PROGRAMMABLE COOLANT NOZZLE
FULL ENCLOSURE
RIGID TAPPING
FULL ENCLOSURE
CHIP AUGER
ALL AVAILABLE MANUALS
