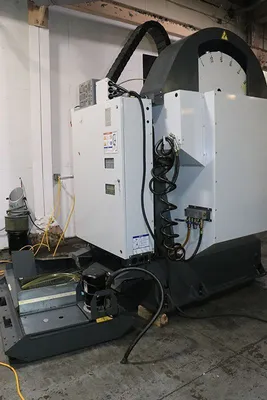

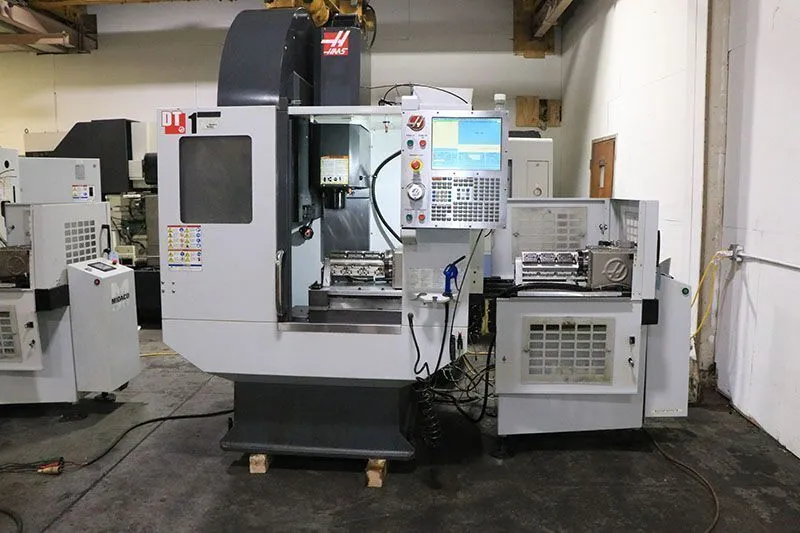

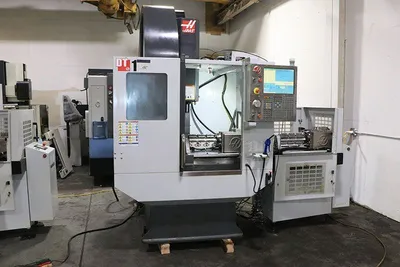

HAAS DT 1 CNC HIGH SPEED DRILL & TAPPING CENTER W/MIDACO PALLET CHANGER AND TWIN ROTARY TABLE INDEXERS

HAAS DT 1 CNC HIGH SPEED DRILL & TAPPING CENTER W/MIDACO PALLET CHANGER AND TWIN ROTARY TABLE INDEXERS

Have one to sell?
(847) 669 9781
mike@usedcncllc.com
ConditionUsed
1 available
Have one to sell?

Overview

Type:
Drilling & Tapping CNC
Manufacturer:
HAAS
Model:
DT 1
Year:
2012
Stock #:
10200
Status:
For Sale
Serial #:
1093833

Description

HAAS DT 1 CNC High Speed Drill & Tapping Center, 2012 model, featuring Midaco Pallet Changer, twin rotary tables, HAAS CNC control, and advanced tool management and probing capabilities. Specs include 12,000 RPM spindle, 20 automatic tool changer, and 20"x16"x15.5" travels.

Number Of Tables / Pallets11
Table-L26"660.4 mm
Table-W15"381 mm
Weight on Table250 lb113.4 kg
Spindle Nose to Table Top6" ~ 21.5"6" ~ 21.5"
X - Axis Travel20"508 mm
Y - Axis Travel16"406.4 mm
Z - Axis Travel15.5"393.7 mm
Rapid Traverse Rate - X2,400 in/min.61 m/min.
Rapid Traverse Rate - Y2,400 in/min.61 m/min.
Rapid Traverse Rate - Z2,400 in/min.61 m/min.
Cutting Feed Rate1,200 in/min.30.5 m/min.
Spindle Speed12,000 RPM12,000 RPM
Spindle Taper30 BT30 BT
Main Motor15 hp11.2 kW
Automatic Tool Changer2020
Tool Diameter2"50.8 mm
Tool Length7"177.8 mm
Machine Weight5,150 lb2,336 kg
ControlCNC (HAAS CNC CONTROL)CNC (HAAS CNC CONTROL)

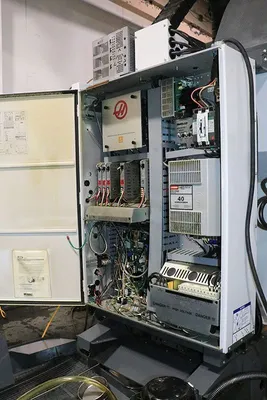

HAAS CNC CONTROL
ROTATION & SCALING
DNC, QUICK CODE
SPINDLE ORIENT
MACROS
INTUITIVE PROGRAMMING
ADVANCED TOOL MGMT,
RIGID TAPPING
USB PORT
WIPS WIRELESS INTUITIVE PROGRAMMING SYSTEM
NO PROBE TOOL & TOUCH SETTER

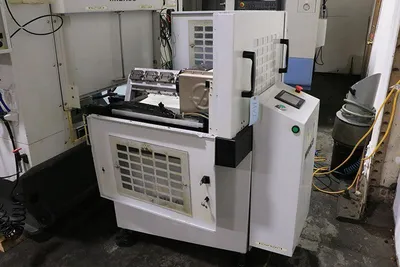

MIDACO MODEL ADT-1SD PROGRAMMABLE DUAL PALLET CHANGER PALLET SIZE 22" x 15"

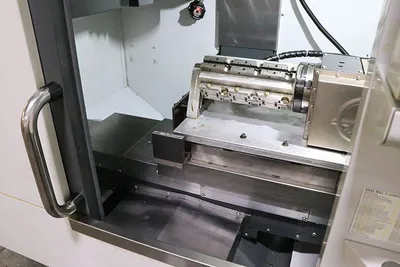

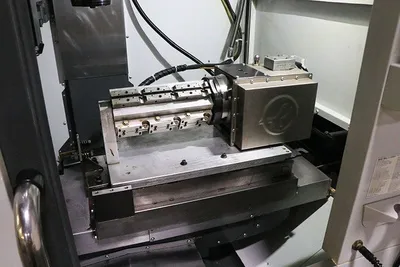

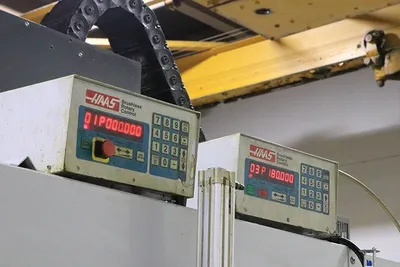

(2) HAAS MODEL HRT 160SP ROTARY TABLES W / HAAS INDEPENDENT ROTARY CONTROL
TOOLING BLOCK SYSTEMS W/ A-FRAME SUPPORT & MOUNTING BLOCK
FIRE SUPRESSION SYSTEM

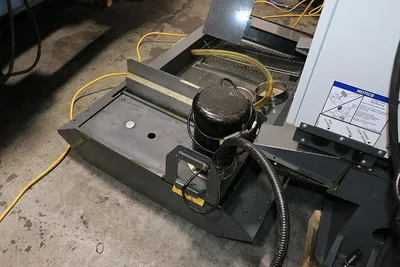

COOLANT SYSTEMS
ALL AVAILABLE MANUALS
