| Swing Over Bed | 40.5" | 1,028.7 mm |
| Machining Length | 126" | 3,200.4 mm |
| Distance Between Centers | 141" | 3,581.4 mm |
| Turning Diameter, Shaft Diameter | 35.4" | 899.16 mm |
| Chuck Size 1 | 24" | 609.6 mm |
| Spindle Nose 1 | A1 - 20 | A1 - 20 |
| Spindle Bore Diameter 1 | 12.6" | 320.04 mm |
| Spindle Bar Capacity 1 | 12.6" | 320.04 mm |
| Spindle Speeds 1 | 750 RPM | 750 RPM |
| Spindle Horsepower 1 | 60 hp | 44.7 kW |
| X1 - Axis Travel | 18.5" | 469.9 mm |
| Z1 - Axis Travel | 127.3" | 3,233.4 mm |
| Rapid Traverse Rate - X1 | 472 in/min. | 199.8 mm/sec. |
| Rapid Traverse Rate- X2 | 630 in/min. | 16 m/min. |
| Spindle Torque | 4873 | 4873 |
| Gear Ranges | 3 | 3 |

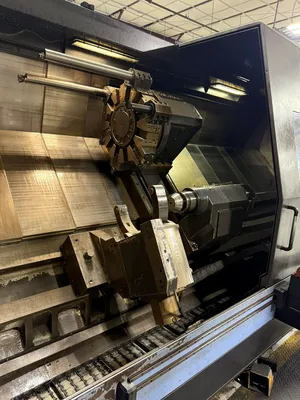

| Turret Configuration 1 | 12 | 12 |
| Tailstock Quill Diameter | 6.3" | 160.02 mm |
| Tailstock Taper | MT 6 | MT 6 |
| Tailstock Quill Travel | 5.9" | 149.86 mm |
| Programmable Tailstock | YES | YES |
| Tailstock Travel | 124" | 3,149.6 mm |

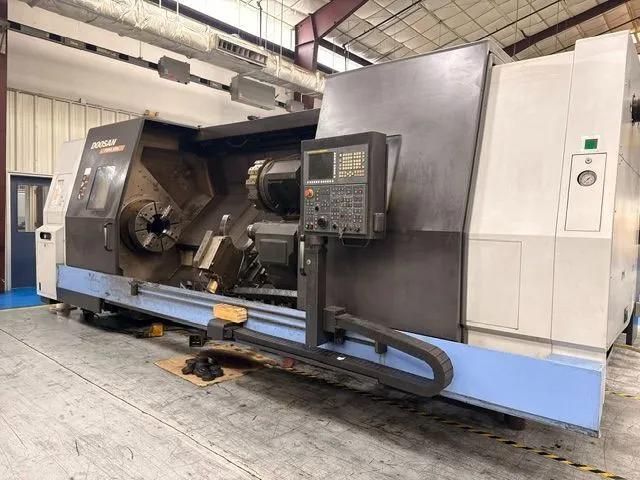

| Control | CNC (FANUC 32i-A CNC COLOR CONTROL) | CNC (FANUC 32i-A CNC COLOR CONTROL) |
FANUC 32I-A CNC COLOR CONTROL
640 M MEMORY
MANUAL GUIDE I CONVERSATIONAL CONTROL
GRAPHIC FUNCTION
USB PORT
EMBEDDED ETHERNET FUNCTION
THREAD CUTTING RETRACT
VARIABLE LEAD THREAD CUTTING
CHIP CONVEYOR
64 TOOL OFFSETS
8 PAIRS WORK COORDINATES
DOOSAN TOOL LOAD MONITORING
DUAL PRESSURE CHUCKING

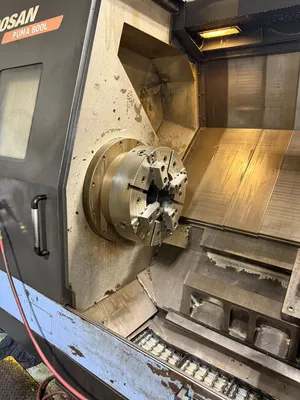

24" 4 JAW MANUAL CHUCK FRONT AND REAR
REAR CHUCK PREP
SCHUNK HYDRAULIC OPEN CLOSE STEADY REST 12.2" CAPACITY
FX 1200 MIST COLLECT SYSTEM
This equipment is currently unavailable. Similar equipment available now is shown below.
