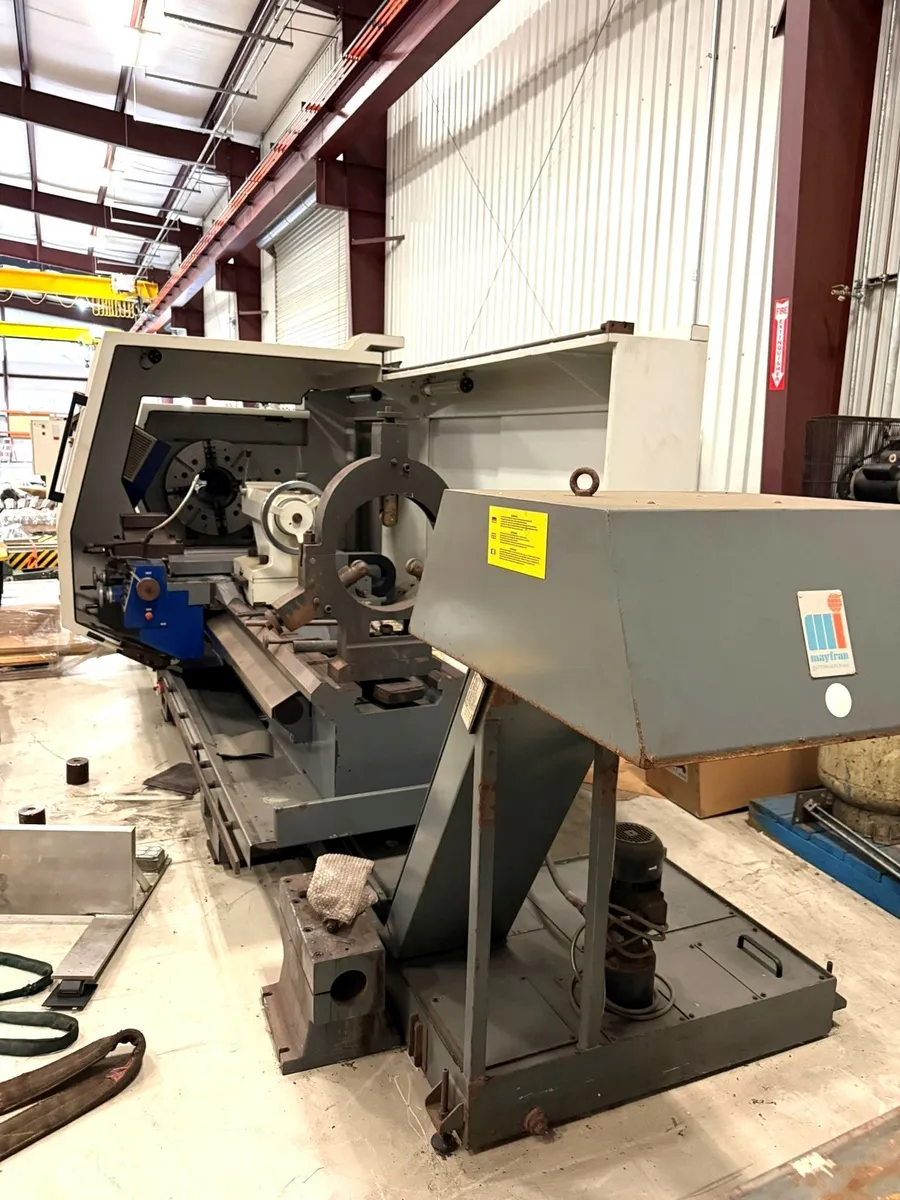

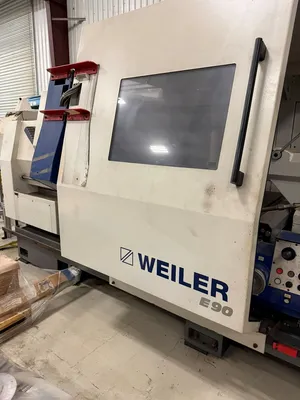

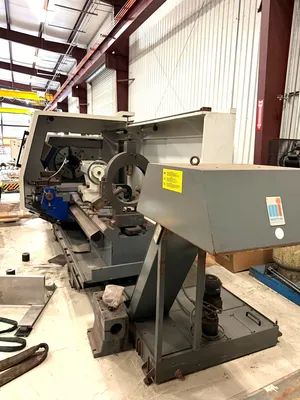

WEILER E 90 / 3000 CNC FLATBED TURNING CENTER WITH 10.3" HOLE & 118" BETWEEN CENTERS

WEILER E 90 / 3000 CNC FLATBED TURNING CENTER WITH 10.3" HOLE & 118" BETWEEN CENTERS

Have one to sell?
(847) 669 9781
mike@usedcncllc.com
ConditionUsed
1 available
Have one to sell?

Overview

Type:
Lathes CNC, 2-Axis & 3-Axis
Manufacturer:
WEILER
Model:
E90 3000
Year:
2012
Stock #:
10205
Status:
For Sale
Serial #:
HG 02

Description

Explore precision with the used 2012 WEILER E90 3000 CNC Lathe. Features include 35.43" swing, 118" machining length, dual 32" chucks, and a 10.3" spindle bore. Equipped with WEILER control, STEADY REST and LONG BORING BAR ATTACHMENT. Perfect for advanced machining.

Swing Over Bed35.43"899.92 mm
Machining Length118.11"3,000 mm
Turning Diameter, Shaft Diameter23"584.2 mm
Chuck Size 132"812.8 mm
Spindle Nose 1DIN ISO 702 - 1 (DIN55026) SIZE 20DIN ISO 702 - 1 (DIN55026) SIZE 20
Spindle Bore Diameter 110.3"261.62 mm
Spindle Bar Capacity 110.3"261.62 mm
Spindle Speeds 1700 RPM700 RPM
Spindle Horsepower 160 hp44.7 kW
Chuck Size 232"812.8 mm
X1 - Axis Travel23.23"590.04 mm
Z1 - Axis Travel230"5,842 mm
Rapid Traverse Rate - X1197 in/min.83.4 mm/sec.
Rapid Traverse Rate - Z1394 in/min.166.8 mm/sec.
Spindle Torque44004400
Gear Ranges22
Tailstock Quill Diameter5.51"139.95 mm
Tailstock TaperMT 6MT 6
Tailstock Quill Travel11.81"299.97 mm
# Axis22
Tailstock'Yes''Yes'
Live Tooling'No''No'
Sub Spindle'No''No'
ControlCNC (WEILER)CNC (WEILER)
Weight24,25024,250

ELECTRICAL & CONTROL

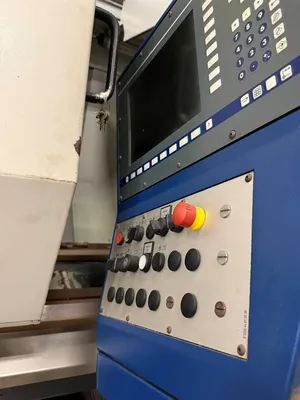

• Control Type: WEILER Teach In / Cycle Control
• Power Requirements: 400–480V, 3 phase
• Drive System: AC vector drive with gearbox

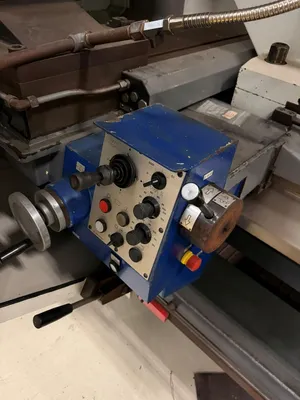

HAND HELD MPG

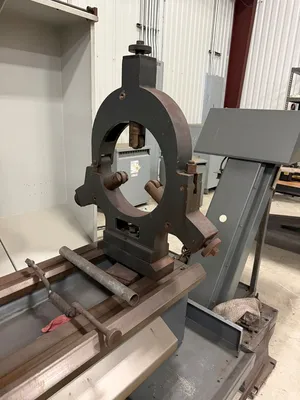

MANUAL STEADY REST
BORING BAR CROSS SLIDE ATTACHMENT

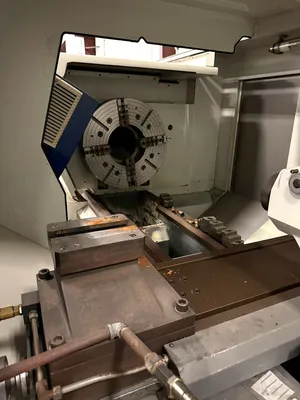

FRONT AND REAR 32" 4 JAW MANUAL CHUCK WITH 12.5" HOLES

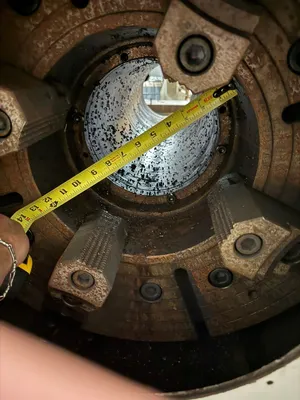

10.3" THROUGH BORE
MANUAL TURNING
THREADIDING CYCLES
• Threading Capability:
o Metric: 0.1–2000 mm
o Inch: 112–1/64 TPI
o Modular: 0.05–56 mm
o Diametral: 448–0.05 DP
• Max Thread Courses: 360
CHIP CONVEYOR
