WEILER E 70/3000 CNC FLATBED TURNING CENTER

WEILER E 70/3000 CNC FLATBED TURNING CENTER

Have one to sell?
(847) 669 9781
mike@usedcncllc.com
ConditionUsed
1 available
Have one to sell?

Overview

Type:
Lathes CNC, 2-Axis & 3-Axis
Manufacturer:
WEILER
Model:
E70/3000
Year:
2012
Stock #:
10206
Status:
For Sale
Serial #:
HC 02

Description

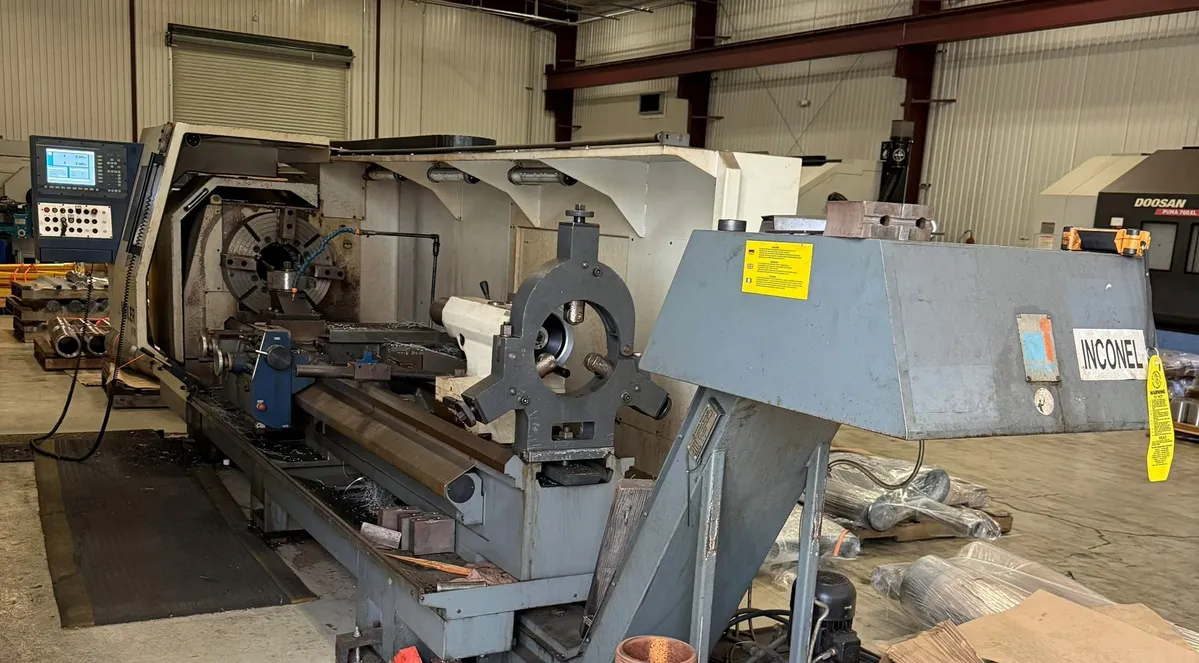

2012 WEILER E 70/3000 CNC Flatbed Turning Center, used condition, featuring WEILER CNC control, 28.3" swing, 118" machining length, 16.5" turning dia., 50 hp, 1,200 RPM, 2-axis, threading capability, and equipped with chip conveyor, steady rest, and more.

Swing Over Bed28.3"718.82 mm
Machining Length118"2,997.2 mm
Turning Diameter, Shaft Diameter16.5"419.1 mm
Chuck Size 124"609.6 mm
Spindle Nose 1DIN ISO 702 1, Size 15DIN ISO 702 1, Size 15
Spindle Bore Diameter 18.5"215.9 mm
Spindle Bar Capacity 18.5"215.9 mm
Spindle Speeds 11,200 RPM1,200 RPM
Spindle Horsepower 150 hp37.3 kW
X1 - Axis Travel16.1"408.94 mm
Z1 - Axis Travel118"2,997.2 mm
Rapid Traverse Rate - X1197 in/min.83.4 mm/sec.
Rapid Traverse Rate - Z1394 in/min.166.8 mm/sec.
Spindle Torque-2331-2331
Gear Ranges22
Tailstock Quill Diameter4.5"114.3 mm
Tailstock TaperMT 6MT 6
Tailstock Quill Travel8.85"224.79 mm
# Axis22
Tailstock'Yes''Yes'
Live Tooling'No''No'
Sub Spindle'No''No'
ControlCNC (WEILER)CNC (WEILER)
Weight17,16017,160

WEILER CNC CONTROL
HAND HELD MPG
FRONT AND REAR 24" 4 JAW CHUCKS WITH 10.5" THROUGH HOLE
STEADY REST
• THREADING CAPABILITY
o Metric: 0.1–2000 mm
o Inch: 112–1/64 TPI
o Modular: 0.05–56 mm
o Diametral: 448–0.05 DP
• Max Thread Courses: 360
CHIP CONVEYOR
ALL AVAILABLE TOOL HOLDERS
ALL AVAILABLE MANUALS
