DOOSAN PUMA 800L CNC UNIVERSAL BIG HOLE LATHE

DOOSAN PUMA 800L CNC UNIVERSAL BIG HOLE LATHE

Have one to sell?
(847) 669 9781
mike@usedcncllc.com
ConditionUsed
1 available
Have one to sell?

Overview

Type:
Lathes CNC, 2-Axis & 3-Axis
Manufacturer:
DOOSAN
Model:
PUMA 800L
Year:
2007
Stock #:
10207
Status:
For Sale
Serial #:
P60L0512

Description

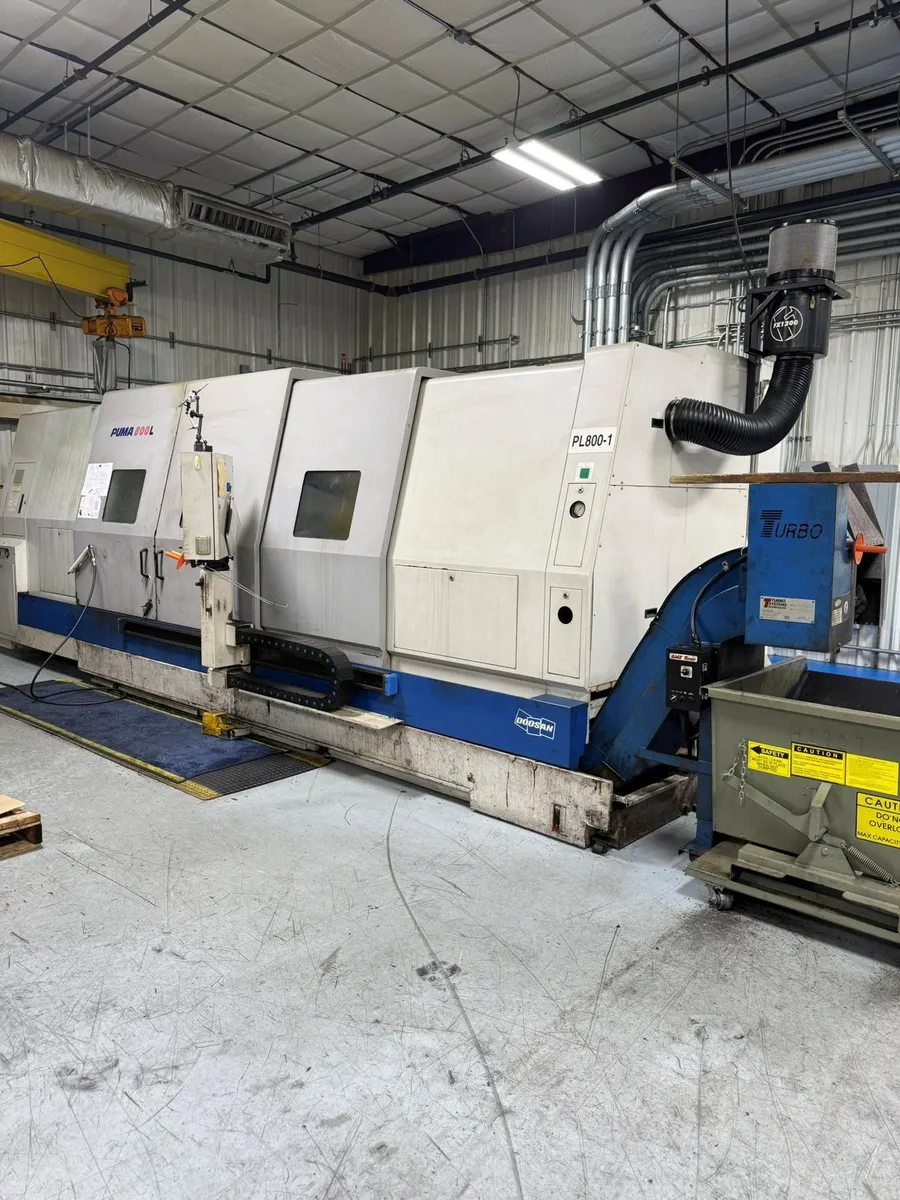

2007 Doosan PUMA 800L CNC Universal Big Hole Lathe (12.2) available, used but powerful. Offers 35.4" turning diameter, 126" machining length, and 60 HP. Equipped with FANUC 21i-TB CNC color control, chip conveyor, hydraulic steady rest and 4 jaw manual chuck. Robust option for precision machining.

Swing Over Bed40.5"1,028.7 mm
Machining Length126"3,200.4 mm
Distance Between Centers141"3,581.4 mm
Turning Diameter, Shaft Diameter35.4"899.16 mm
Chuck Size 124"609.6 mm
Spindle Nose 1A1 - 20A1 - 20
Spindle Bore Diameter 112.6"320.04 mm
Spindle Bar Capacity 112.6"320.04 mm
Spindle Speeds 1750 RPM750 RPM
Spindle Horsepower 160 hp44.7 kW
X1 - Axis Travel18.5"469.9 mm
Z1 - Axis Travel127.3"3,233.4 mm
Rapid Traverse Rate - X1472 in/min.199.8 mm/sec.
Rapid Traverse Rate- X2630 in/min.16 m/min.
Spindle Torque48734873
Gear Ranges33

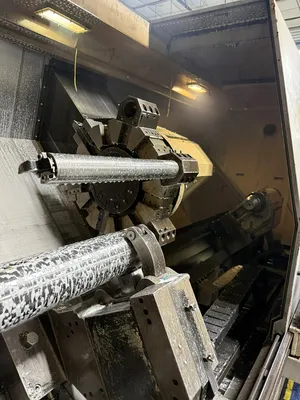

Turret Configuration 11212
Tailstock Quill Diameter6.3"160.02 mm
Tailstock TaperMT 6MT 6
Tailstock Quill Travel5.9"149.86 mm
Programmable TailstockYESYES
Tailstock Travel124"3,149.6 mm

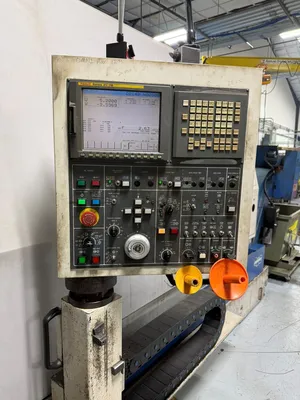

ControlCNC (FANUC 21I - TB CNC COLOR CONTROL)CNC (FANUC 21I - TB CNC COLOR CONTROL)

FANUC 21I - TB CNC COLOR CONTROL
640 M MEMORY
THREAD CUTTING RETRACT
VARIABLE LEAD THREAD CUTTING
CHIP CONVEYOR
64 TOOL OFFSETS
8 PAIRS WORK COORDINATES
DOOSAN TOOL LOAD MONITORING

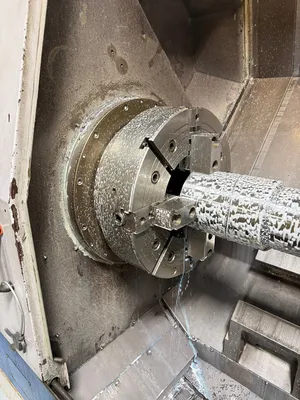

24" 4 JAW MANUAL CHUCK FRONT
REAR CHUCK PREP

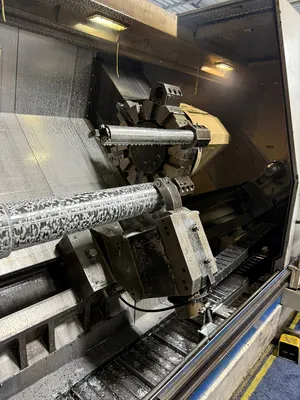

HYDRAULIC OPEN CLOSE STEADY REST

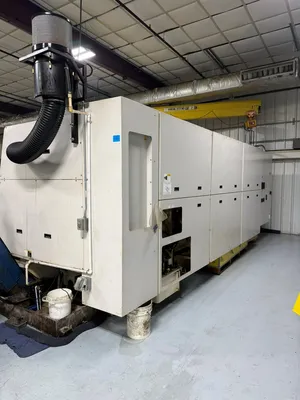

FX 1200 MIST COLLECT SYSTEM
