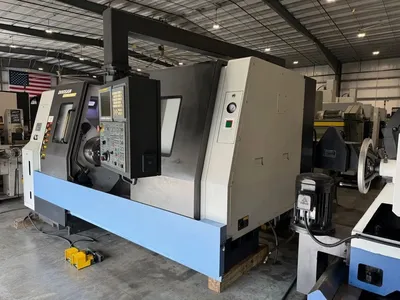

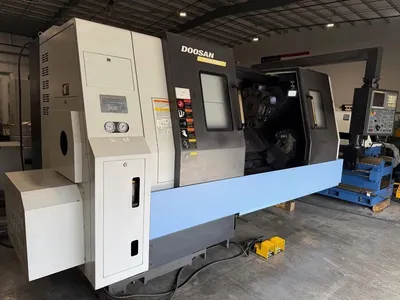

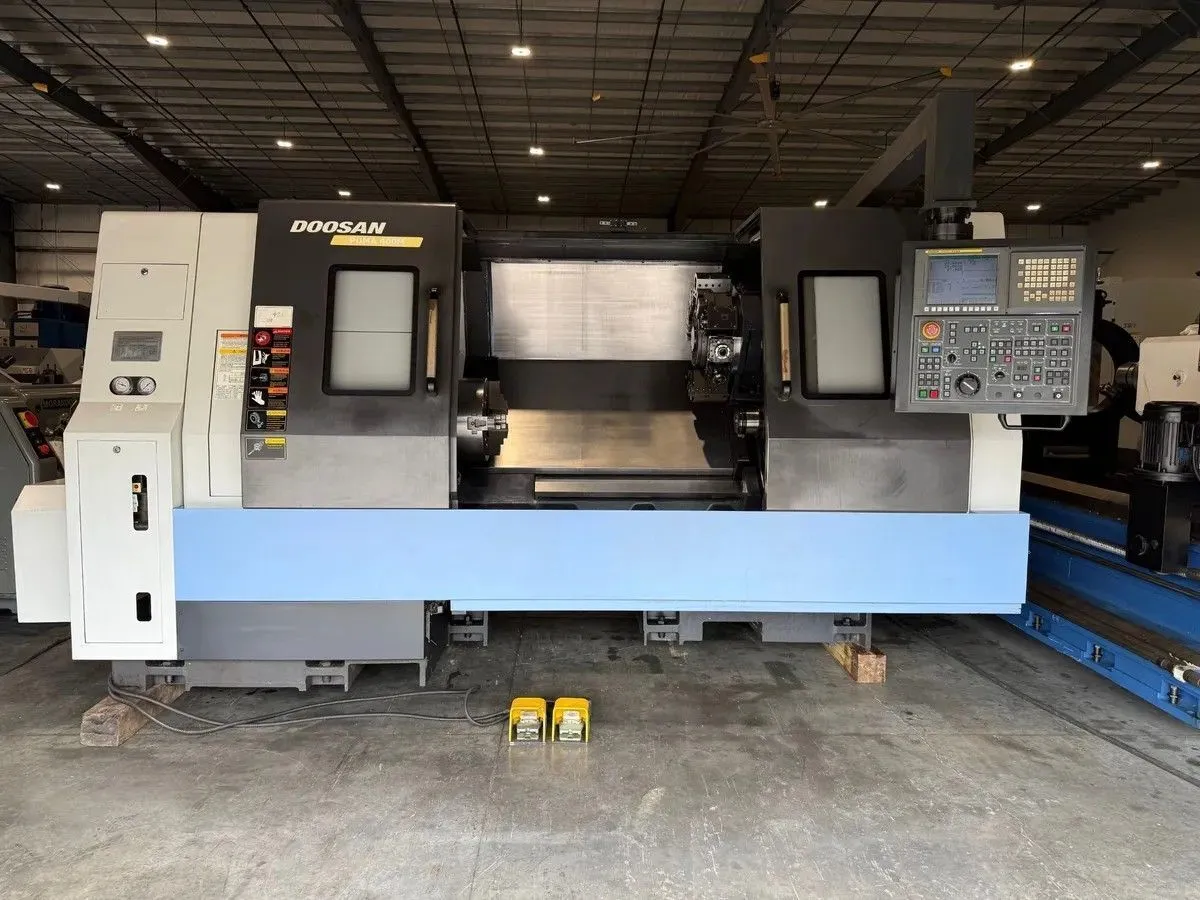

DOOSAN PUMA 400MB CNC UNIVERSAL LATHE WITH MILLING

DOOSAN PUMA 400MB CNC UNIVERSAL LATHE WITH MILLING

Have one to sell?
(847) 669 9781
mike@usedcncllc.com
ConditionUsed
1 available
Have one to sell?

Overview

Type:
Lathes CNC, 2-Axis & 3-Axis
Manufacturer:
DOOSAN
Model:
PUMA 400MB
Year:
2013
Stock #:
10209
Status:
For Sale
Serial #:
ML0130-004520
Swing Over Bed30.3"769.62 mm
Machining Length38.5"977.9 mm
Distance Between Centers44"1,117.6 mm
Turning Diameter, Shaft Diameter22"558.8 mm
Chuck Size 115"381 mm
Spindle Nose 1A2 - 11A2 - 11
Spindle Bore Diameter 15.2"132.08 mm
Spindle Bar Capacity 14.6"116.84 mm
Spindle Speeds 12,000 RPM2,000 RPM
Spindle Horsepower 140 hp29.8 kW
X1 - Axis Travel14.1"358.14 mm
Z1 - Axis Travel43.5"1,104.9 mm
C1 - Axis Travel.001.001
Rapid Traverse Rate - X1629 in/min.266.3 mm/sec.
Rapid Traverse Rate - Z1708 in/min.299.7 mm/sec.

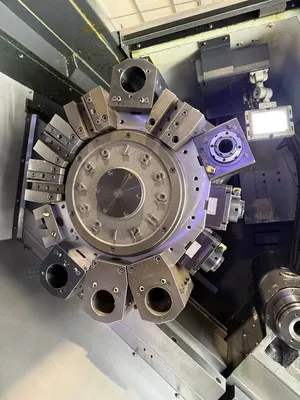

Turret Configuration 112551255
Turret Rotary Tool Spindle Speed 13,000 RPM3,000 RPM
Turret Rotary Tool Horse Power 110 hp

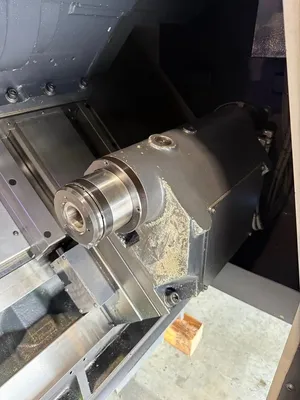

Tailstock Quill Diameter4.7"119.38 mm
Tailstock TaperMT 6MT 6
Tailstock Quill Travel39.4"1,000.8 mm
Programmable TailstockYESYES
# Axis33
Live Tooling'Yes''Yes'
ControlCNC (DOOSAN FANUC SERIES I CNC CONTROL)CNC (DOOSAN FANUC SERIES I CNC CONTROL)
Weight0.000.00

DOOSAN FANUC SERIES I CNC CONTROL
TOOL SETTER

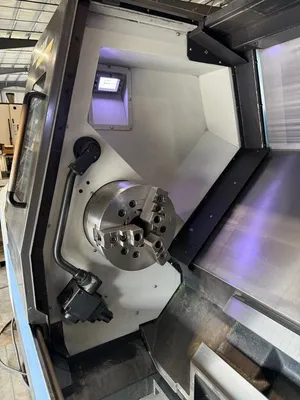

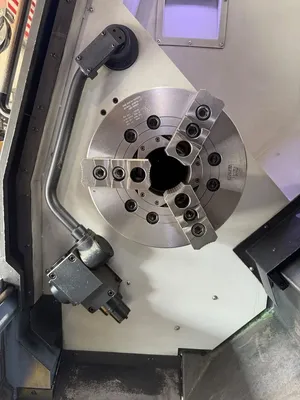

15" 3 JAW HYDRAULIC CHUCK

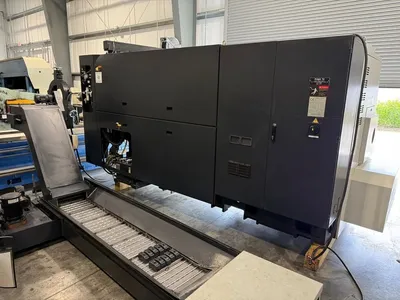

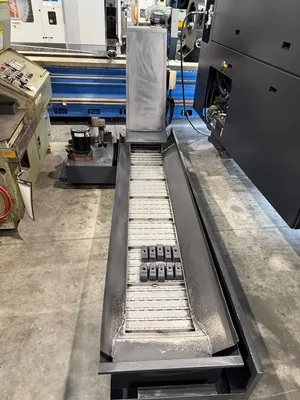

CHIP CONVEYOR

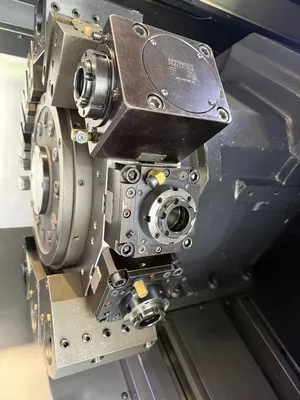

(1) I.D. ROTARY HEAD
(2) O.D. ROTARY HEADS
STATIC HOLDERS
Power on time 11,637, Operating time- 4,119, Cutting time- 2,808
