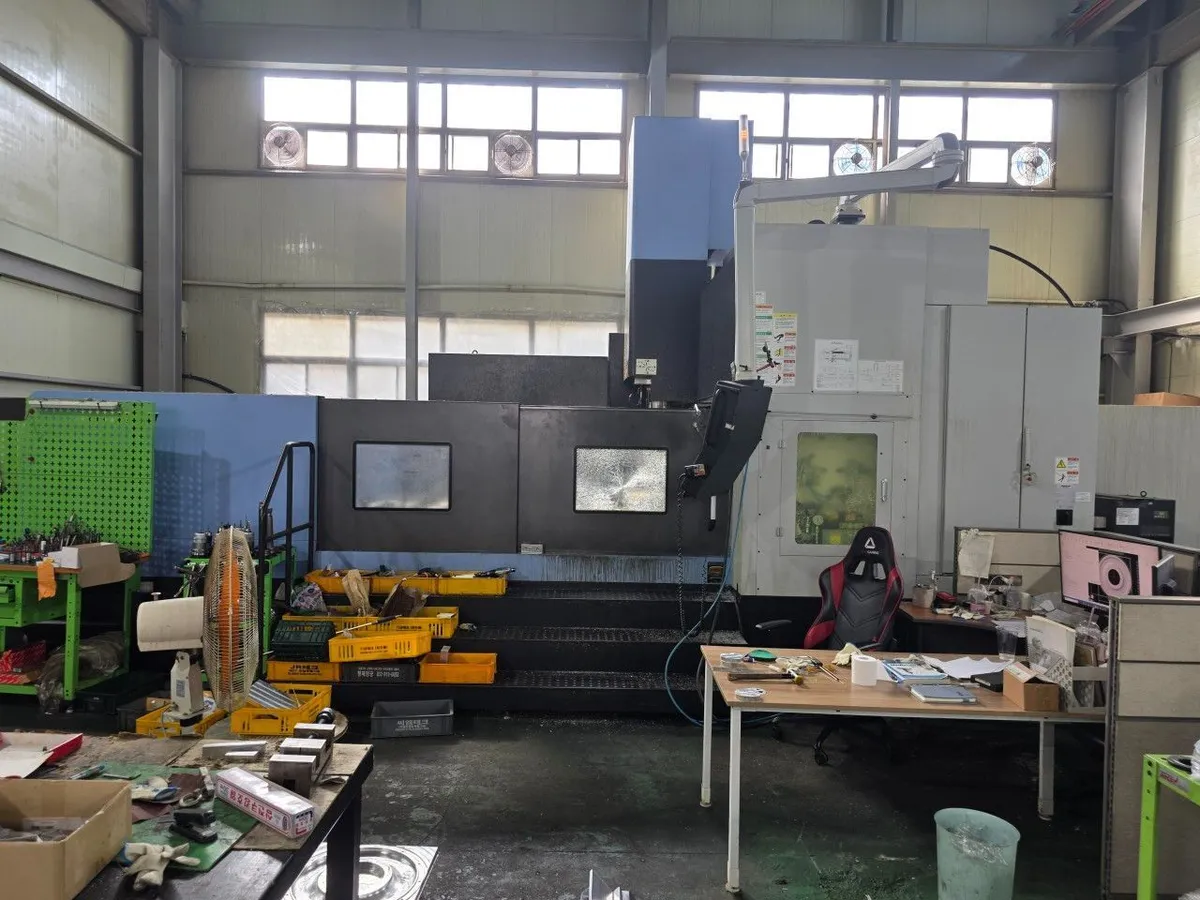

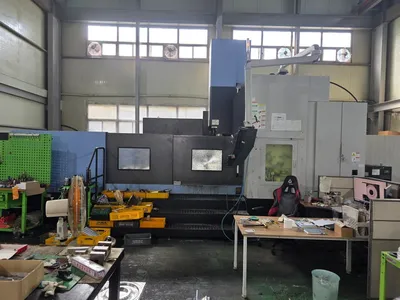

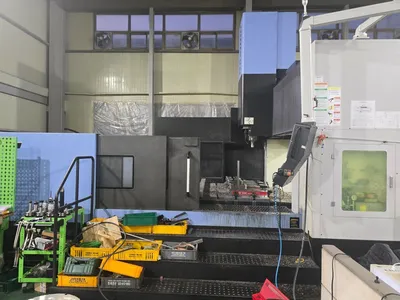

DOOSAN BM 2035 CNC BRIDGE TYPE VERTICAL MACHINING CENTER

DOOSAN BM 2035 CNC BRIDGE TYPE VERTICAL MACHINING CENTER

Have one to sell?
(847) 669 9781
mike@usedcncllc.com
ConditionUsed
1 available
Have one to sell?

Overview

Type:
VMC Gantry / Bridge Type CNC
Manufacturer:
DOOSAN
Model:
BM 2035
Year:
2019
Stock #:
10210
Status:
For Sale
Serial #:
MV0122-000024

Description

DOOSAN BM 2035 CNC Bridge Type VMC with FANUC 32IB control, spindle chiller, and ATC. X/Y/Z travels: 137.8"/80.7"/31.5". 8,000 RPM, 40 hp main motor, and tool changer for efficient machining, Renishaw TS27R tool length measurement and through spindle coolant.

Number Of Tables / Pallets11

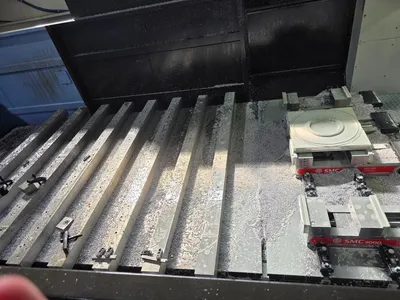

Table Size - L137.8"3,500.1 mm
Table Size - W72.8"1,849.1 mm
Weight on Table22,046 lb9,999.9 kg
Distance Between Columns86.6"2,199.6 mm
Spindle Nose to Table Top7.87" - 39.37"7.87" - 39.37"
X - Axis Travel137.8"3,500.1 mm
Y - Axis Travel80.7"2,049.8 mm
Z - Axis Travel31.5"800.1 mm
Rapid Traverse Rate - X629.9 in/min.16 m/min.
Rapid Traverse Rate - Y629.9 ipm
Rapid Traverse Rate - Z629.9 ipm
Cutting Feedrate315 in/min.8 m/min.
Spindle Speed8,000 RPM8,000 RPM
Spindle Taper5050
Main Motor40 hp29.8 kW
Automatic Tool Changer4040
Tool Diameter8.78.7
Tool Length15.7"398.78 mm
Tool Weight44 lb20 kg

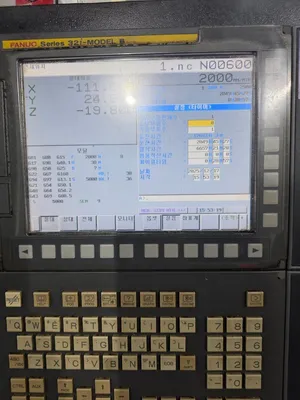

ControlCNC (FANUC 32I-B CNC COLOR CONTROL)CNC (FANUC 32I-B CNC COLOR CONTROL)
Weight78,26578,265

FANUC 31I-B CNC COLOR CONTROL
640 METERS
DOOSAN TOOL LOAD MONITORING
AUTO POWER OFF
BIG PLUS SPINDLE
FLOOD COOLANT PUMP
AIR BLOWER
HAND HELD REMOTE MPG
SPINDLE CHILLER
CHIP CONVEYOR
RIGID TAPPING
64 TOOL OFFSETS
48 PAIRS WORK COORDINATES
HELICAL INTERPOLATION
THRU SPINDLE COOLANT
RENISHAW TS27R TOOL LENGTH MEASUREMENT
CHIP CONVEYOR
