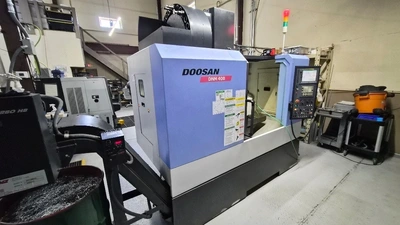

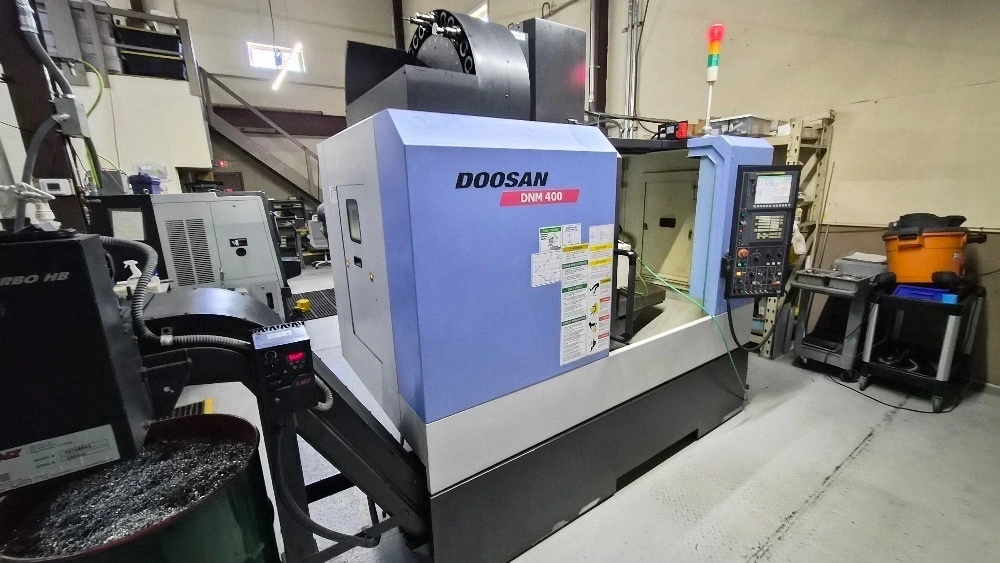

Used 2012 DOOSAN DNM400 | Vertical Machining Centers
Have one to sell?
ConditionUsed
1 available

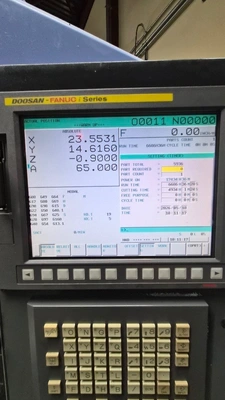

FANUC SERIES I CNC CONTROL
CHIP CONVEYOR
COOLANT THRU SPINDLE
4TH AXIS PREP
Imperial
| Number Of Tables / Pallets | 1 |
| Table-L | 36.2" |
| Table-W | 17.1" |
| Weight on Table | 1,320 lb |
| Spindle Nose to Table Top | 5.9" - 26" |
| X - Axis Travel | 30" |
| Y - Axis Travel | 17.1" |
| Z - Axis Travel | 20.1" |
| Rapid Traverse Rate - X | 1,889 in/min. |
| Rapid Traverse Rate - Y | 1,889 in/min. |
| Rapid Traverse Rate - Z | 1,889 in/min. |
| Spindle Speed | 8,000 RPM |
| Spindle Taper | CT 40 |
| Main Motor | 30 hp |
| Automatic Tool Changer | 30 |
| Tool Diameter | 3.15" / 4.9" |
| Tool Length | 11.8" |
| Tool Weight | 17.6 lb |
| Machine Weight | 11,023 lb |
| Automatic Tool Changer | 30 |
FANUC SERIES I CNC CONTROL
CHIP CONVEYOR
COOLANT THRU SPINDLE
4TH AXIS PREP
