DN SOLUTIONS PUMA 5100LB CNC UNIVERSAL TURNING CENTER

DN SOLUTIONS PUMA 5100LB CNC UNIVERSAL TURNING CENTER

Have one to sell?
(847) 669 9781
mike@usedcncllc.com
ConditionUsed
1 available
Have one to sell?

Overview

Type:
Lathes CNC, 2-Axis & 3-Axis
Manufacturer:
DN SOLUTIONS
Model:
PUMA 5100LB
Year:
2022
Stock #:
10214
Status:
For Sale
Serial #:
ML0298--000230

Description

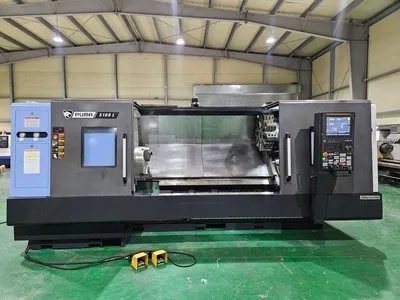

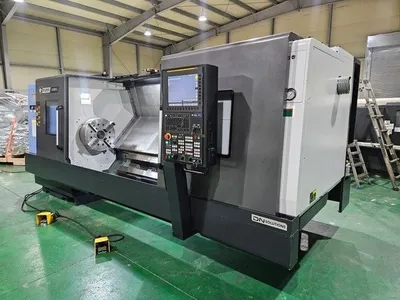

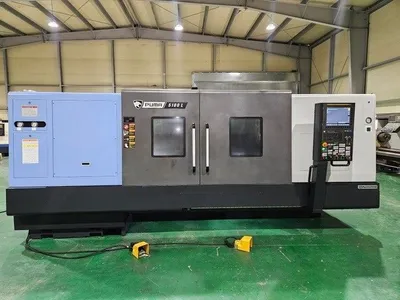

Explore precision with the 2023 DN SOLUTIONS PUMA 5100LB CNC Universal Turning Center. Equipped for versatile 2-axis work and heavy duty turning. It features a 21" chuck, 60 HP spindle and a machining length of 80.39", Perfect for heavy-duty tasks.

Swing Over Bed35.4"899.16 mm
Machining Length80.39"2,041.9 mm
Distance Between Centers84.7"2,151.4 mm
Turning Diameter, Shaft Diameter25.56"649.22 mm
Distance Between Spindles0"0 mm
Chuck Size 121"533.4 mm
Spindle Nose 1A1 - 15A1 - 15
Spindle Bore Diameter 15.2"132.08 mm
Spindle Bar Capacity 16.5"165.1 mm
Spindle Speeds 11,500 RPM1,500 RPM
Spindle Horsepower 160 hp44.7 kW
X1 - Axis Travel14.3"363.22 mm
Z1 - Axis Travel84.8"2,153.9 mm
Rapid Traverse Rate - X1630 in/min.266.7 mm/sec.
Rapid Traverse Rate - Z1710 in/min.300.6 mm/sec.
Gear Ranges22

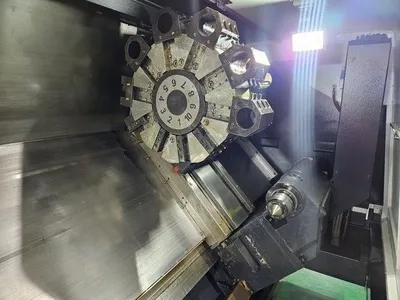

Turret Configuration 11010
Tailstock Quill Diameter4.7"119.38 mm
Tailstock TaperMT5MT5
Tailstock Quill Travel4.7"119.38 mm
Programmable TailstockYESYES
Tailstock Travel80.7"2,049.8 mm
# Axis22
Bar Capacity6.5"165.1 mm
Tailstock'Yes''Yes'
Live Tooling'No''No'
Sub Spindle'No''No'
ControlCNCCNC
Weight0.000.00

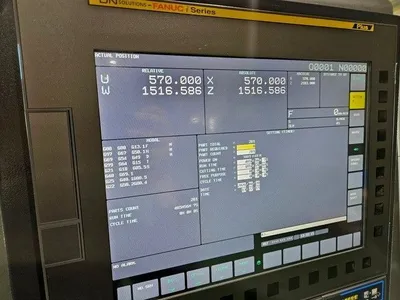

FANUC SERIES I PLUS CNC COLOR CONTROL
DOOSAN EZ GUIDE I CONVERSATIONAL PROGRAMMING
21" 4 JAW HYDRAULIC THRU HOLE CHUCK
PROGRAMMABLE TAILSTOCK
SPINDLE CHILLER
CUSTOM MACRO
EMBEDDED ETHERNET FUNCTION
DOOSAN TOOL LOAD MONITORING
CHIP CONVEYOR
900 CUTTING HOURS
