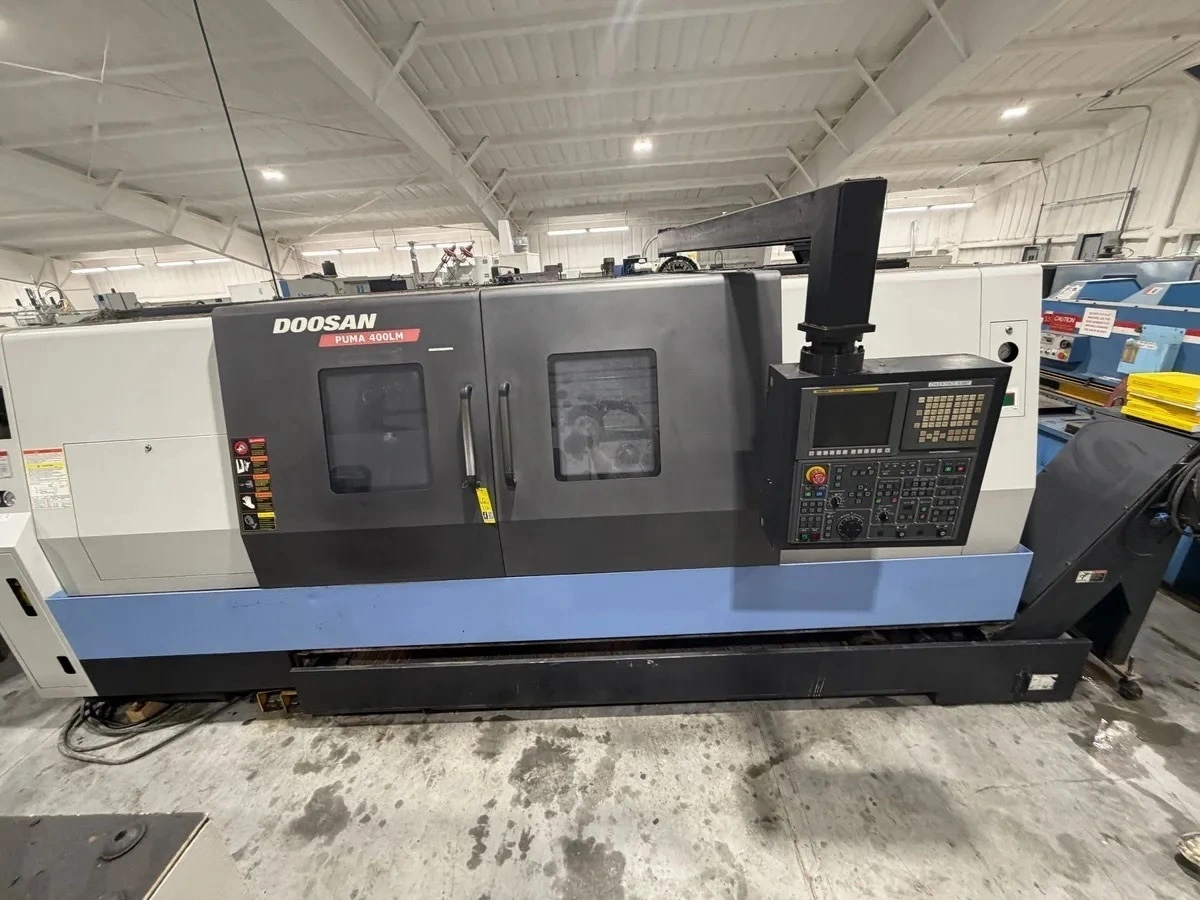

DOOSAN PUMA 4100LMB CNC UNIVERSAL TURNING CENTER W/ MILLING

DOOSAN PUMA 4100LMB CNC UNIVERSAL TURNING CENTER W/ MILLING

Have one to sell?
(847) 669 9781
mike@usedcncllc.com
ConditionUsed
1 available
Have one to sell?

Overview

Type:
Lathes CNC, 2-Axis & 3-Axis
Manufacturer:
DOOSAN
Model:
PUMA 4100LMB
Year:
2011
Stock #:
10217
Status:
For Sale

Description

Explore precision with the 2011 DOOSAN PUMA 4100LMB CNC Universal Turning Center, equipped with FANUC CNC control, chip conveyor, and live tooling. A robust 40 hp spindle and 3-axis capability ensure efficiency for your machining needs.

Swing Over Bed31.1"789.94 mm
Machining Length81"2,057.4 mm
Distance Between Centers86"2,184.4 mm
Turning Diameter, Shaft Diameter22"558.8 mm
Chuck Size 118"457.2 mm
Spindle Nose 1A2-11A2-11
Spindle Bore Diameter 15.2"132.08 mm
Spindle Bar Capacity 14.5"114.3 mm
Spindle Speeds 12,000 RPM2,000 RPM
Spindle Horsepower 140 hp29.8 kW
X1 - Axis Travel13.8"350.52 mm
Z1 - Axis Travel84.4"2,143.8 mm
C1 - Axis Travel.001 Degrees.001 Degrees
Rapid Traverse Rate - X1630 in/min.266.7 mm/sec.
Rapid Traverse Rate - Z1709 in/min.300.1 mm/sec.
Gear Ranges22
Turret Configuration 11010
Turret Rotary Tool Spindle Speed 14,000 RPM4,000 RPM
Turret Rotary Tool Horse Power 115 hp
Tailstock Quill Diameter4.7"119.38 mm
Tailstock TaperMT#5MT#5
Tailstock Quill Travel4.7"119.38 mm
Programmable TailstockYESYES
# Axis33
Bar Capacity4.5"114.3 mm
Tailstock'Yes''Yes'
Live Tooling'Yes''Yes'
ControlCNCCNC
Dimensions17'6" x 100" x 100"17'6" x 100" x 100"
Weight24000.0024000.00

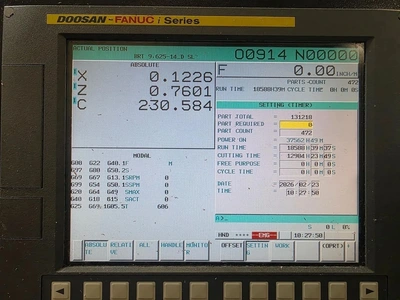

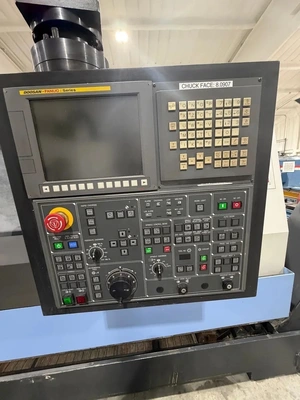

FANUC SERIS I CNC CONTROL
CHIP CONVEYOR
TOOL PRESETTER

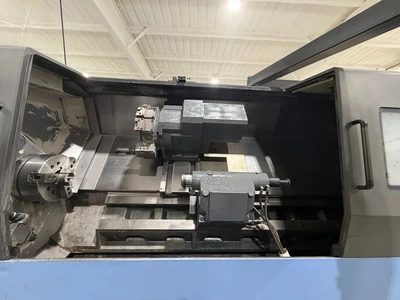

18" HYDRAULIC CHUCK
MANUALS
SHIPPING DIMS: 17'6" x 96" x 96" C/C 15'6" x 48" x 70"
