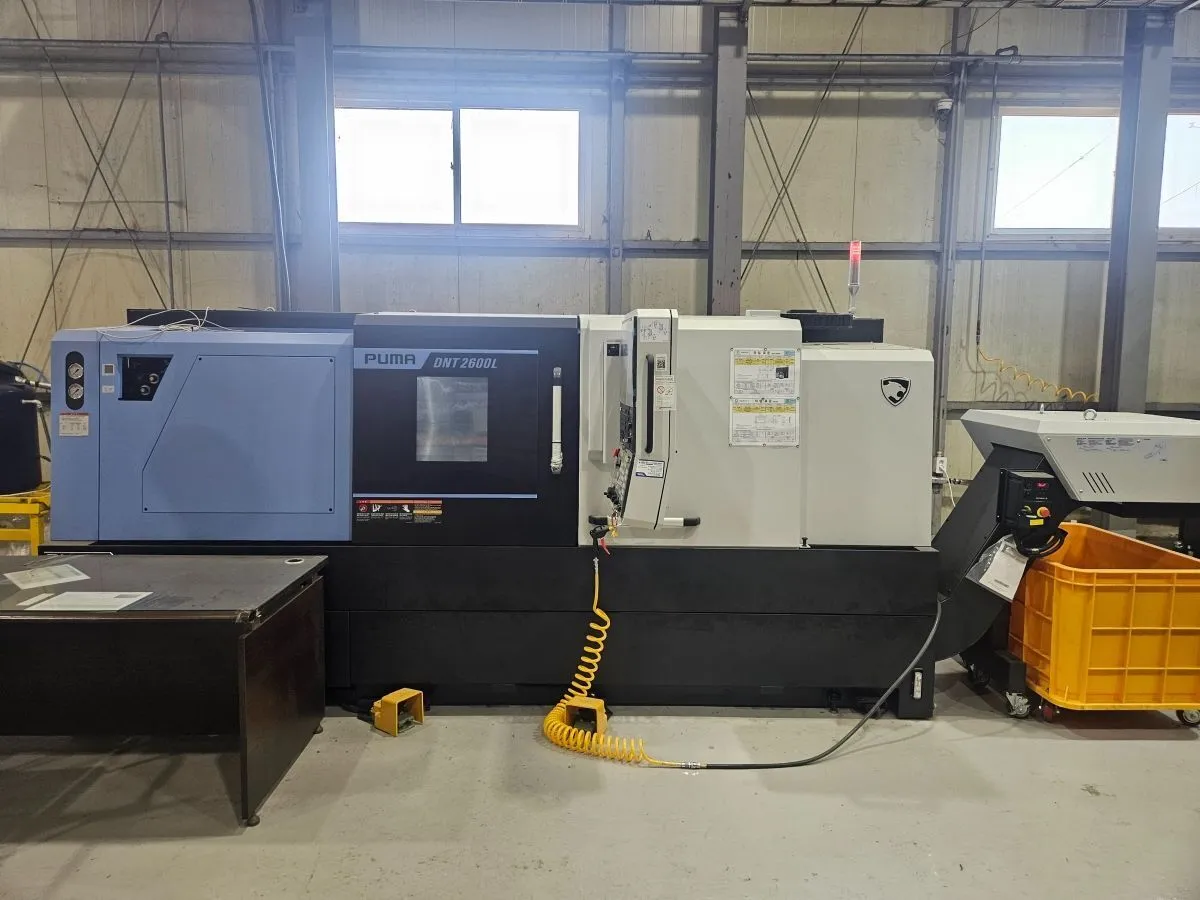

DOOSAN PUMA DNT 2600L CNC UNIVERSAL TURNING CENTER

DOOSAN PUMA DNT 2600L CNC UNIVERSAL TURNING CENTER

Have one to sell?
(847) 669 9781
mike@usedcncllc.com
ConditionUsed
1 available
Have one to sell?

Overview

Type:
Lathes CNC, 2-Axis & 3-Axis
Manufacturer:
DN SOLUTIONS
Model:
PUMA DNT 2600L
Year:
2024
Stock #:
10219
Status:
For Sale

Description

DN SOLUTIONS PUMA DNT 2600L available, a 2024 model CNC universal turning and milling center. This hardly used 2-axis lathe from renowned manufacturer DN SOLUTIONS is ideal for precise and efficient machining tasks.

Swing Over Bed25.6"650.24 mm
Machining Length42.4"1,077 mm
Distance Between Centers45"1,143 mm
Turning Diameter, Shaft Diameter18.1"459.74 mm
Distance Between Spindles0"0 mm
Chuck Size 112"304.8 mm
Spindle Nose 1A2 - 8A2 - 8
Spindle Bore Diameter 13.6"91.44 mm
Spindle Bar Capacity 13.2"81.28 mm
Spindle Speeds 13,500 RPM3,500 RPM
Spindle Horsepower 134.9 hp26 kW
X1 - Axis Travel10.2"259.08 mm
Z1 - Axis Travel43.3"1,099.8 mm
C1 - Axis Travel.001.001
W - Axis Travel Sub Spindle00
Rapid Traverse Rate - X1945 in/min.400.1 mm/sec.
Rapid Traverse Rate - Z11,181 in/min.500 mm/sec.
Spindle Torque542542
Gear Ranges22

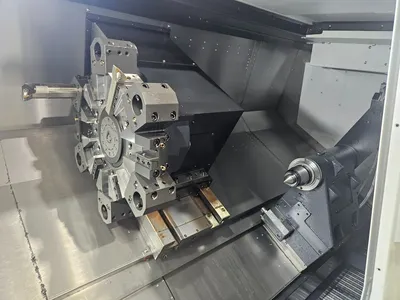

Turret Configuration 11212

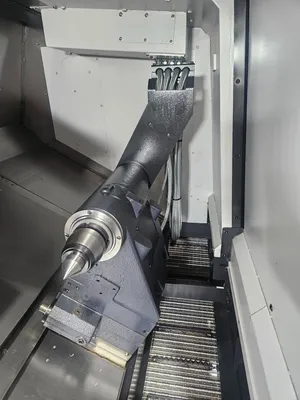

Tailstock Quill Diameter3.9"99.06 mm
Tailstock TaperMT 5MT 5
Tailstock Quill Travel3.9"99.06 mm
Programmable TailstockYESYES
Tailstock Travel43.3"1,099.8 mm
Bar Capacity3.2"81.28 mm
TailstockYESYES
Live Tooling'No''No'
Sub SpindleNONO
ControlCNCCNC
Weight0.000.00

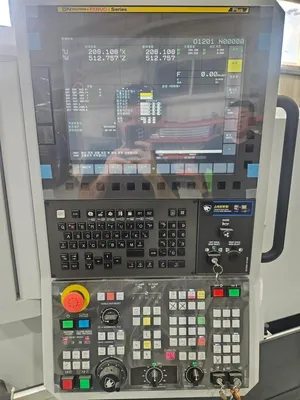

FANUC SERIES I CNC CONTROL
STANDARD STATIC HOLDERS
TOOL PRESETTER

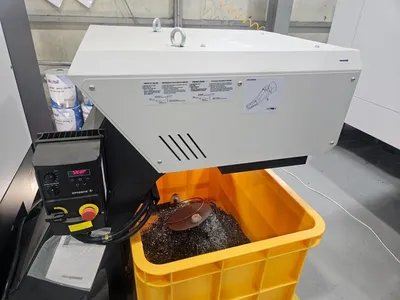

CHIP CONVEYOR

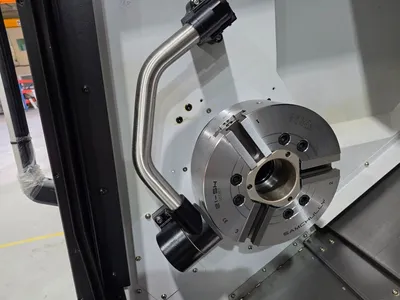

12" 3-JAW HYDRAULIC CHUCK
HYDRAULIC CHUCK CLAMP CONFIRMATION
SIGNAL TOWER
PROGRAMABLE BODY AND QUILL TAILSTOCK
USB PORT & ETHERNET PORT FOR DNC OPERATION
