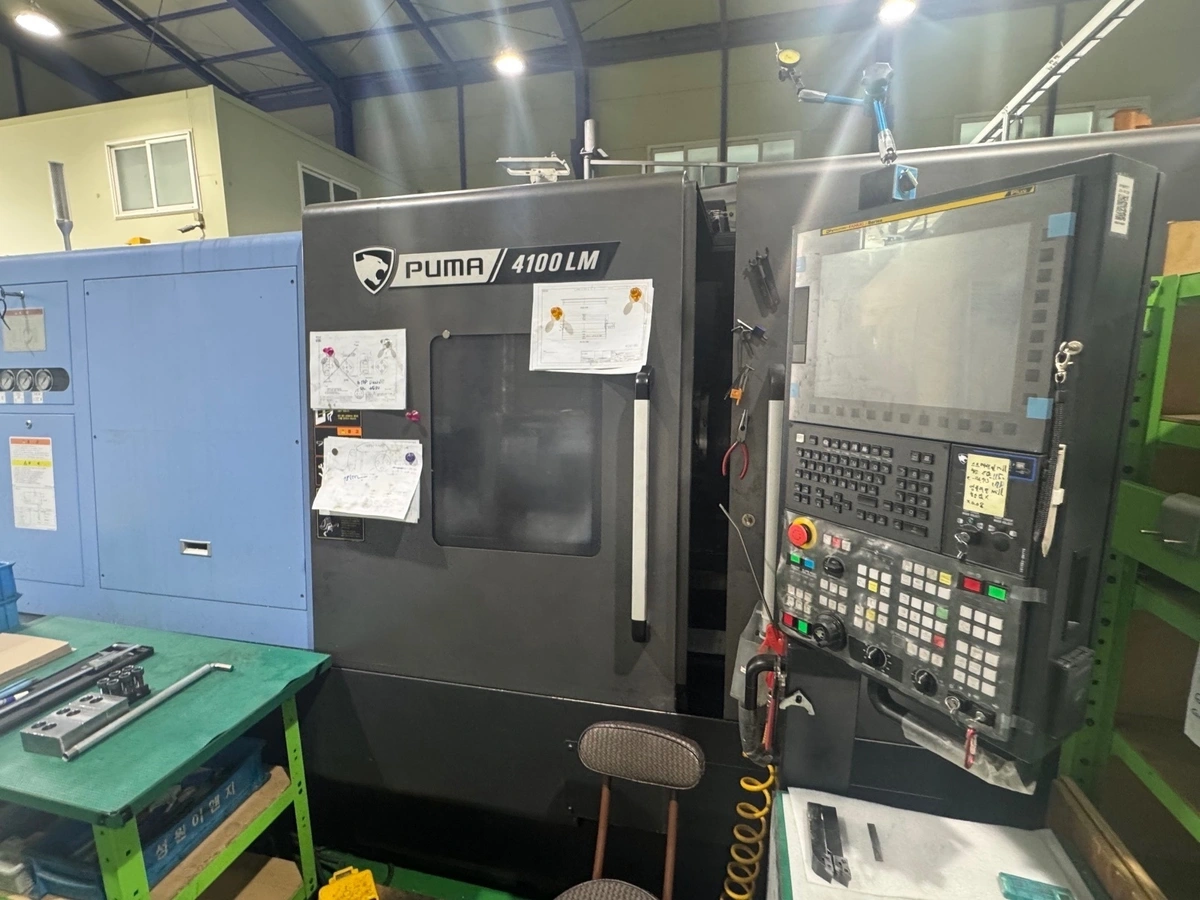

DN SOLUTIONS PUMA 4100LMA CNC UNIVERSAL TURNING CENTER WITH MILLING

Swing Over Bed: 31.1"
Turning Diameter, Shaft Diameter: 22"
Machining Length: 79.8"
Distance Between Centers: 84.7"
Distance Between Spindles: 0
Chuck Size 1, 2: 15"
Spindle Nose 1, 2: A2 - 11
Spindle Bore Diameter 1, 2: 5.2"
Spindle Bar Capacity 1, 2: 4.6"
Spindle Speeds 1, 2: 2,000 RPM
Gear Ranges: 2
Spindle Horsepower 1, 2: 50 HP
Spindle Torque: 0
X - Axis Travel 1, 2: 14.3"
Z - Axis Travel 1, 2: 84.8"
C - Axis Travel 1, 2: .001 DEG.
W - Axis Travel Sub Spindle: 0
Rapid Traverse Rates X1, X2: 630 IPM
Rapid Traverse Rates Z1, Z2: 787 IPM
Rapid Traverse Rate W Axis: 0
Rapid Traverse C Axis: 0
Turret Configuration 1, 2: 12
Turret Rotary Tool Spindle Speed 1, 2: 4000 RPM
Turret Rotary Tool Horse Power 1, 2: 14.8 HP
Tailstock Quill Diameter: 4.7"
Tailstock Taper: MT 6
Tailstock Quill Travel: 4.7"
Programmable Tailstock: YES
Tailstock Travel: 80.7"
Machine Weight: 26,675 LBS.
