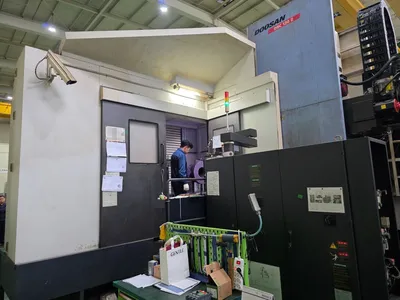

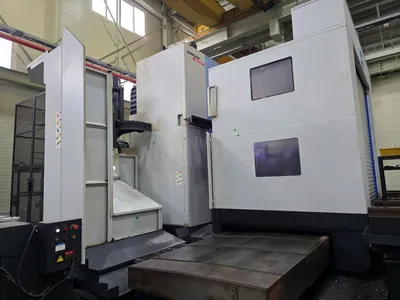

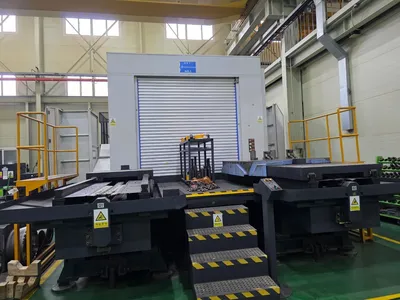

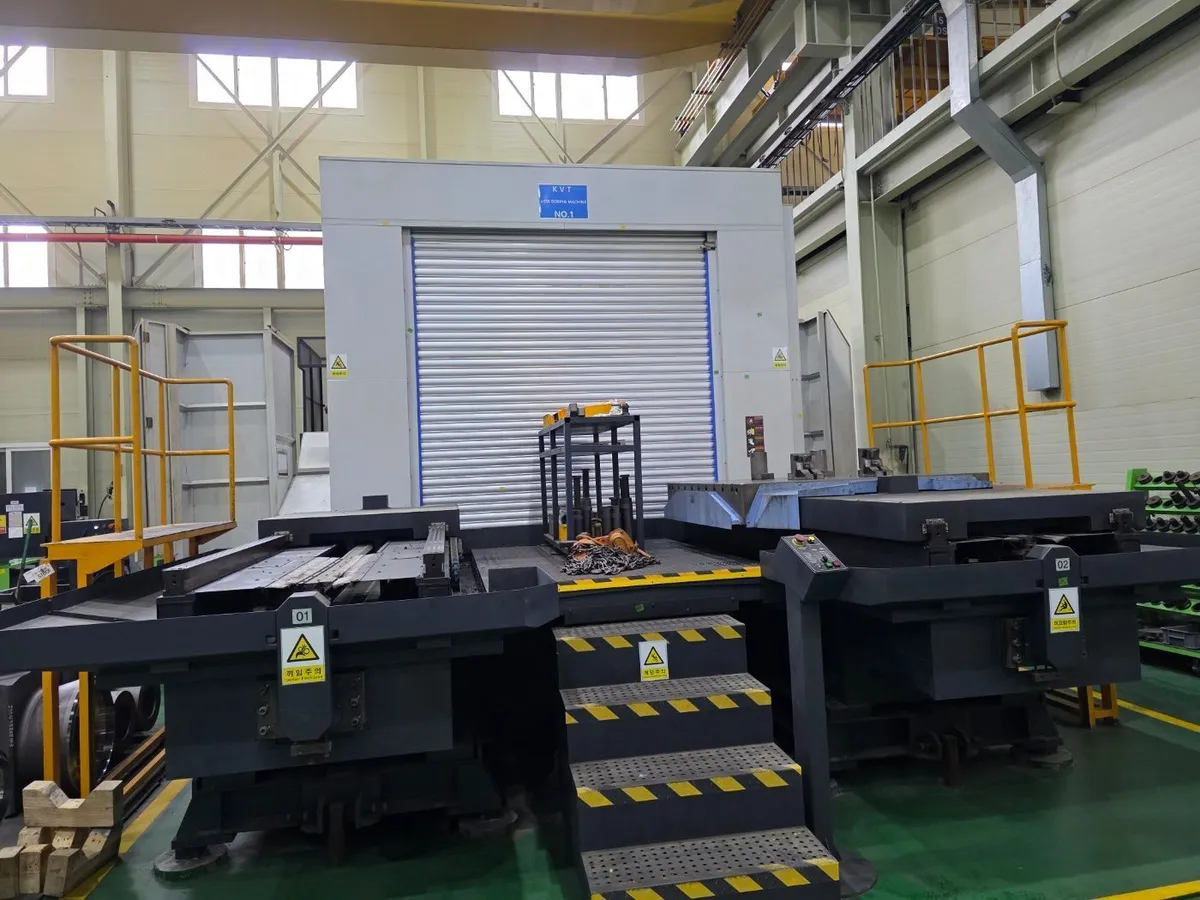

2013 DOOSAN DBC-130II CNC TABLE TYPE BORING MILL WITH FACTORY TWIN PALLET CHANGER

2013 DOOSAN DBC-130II CNC TABLE TYPE BORING MILL WITH FACTORY TWIN PALLET CHANGER

Have one to sell?
(847) 669 9781
mike@usedcncllc.com
ConditionUsed
1 available
Have one to sell?

Overview

Type:
Boring Mills Horizontal Table Type
Manufacturer:
DOOSAN
Model:
DBC-130II w/ 2 APC
Year:
2013
Stock #:
10225
Status:
For Sale

Description

2013 Doosan DBC-130II with 2 APC, used horizontal boring mill. Features 63"x63" table, 28,659 lb capacity, 2500 RPM spindle, 118.9" X-axis travel, FANUC 31IB CNC control, thru spindle coolant and scale feedback x, y, z axis. Ideal for robust machining tasks.

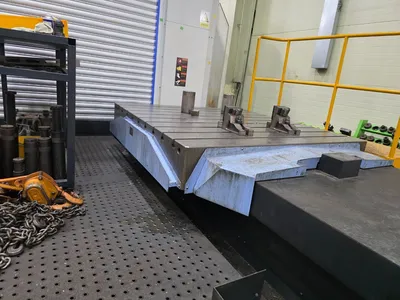

Table Size - L63"1,600.2 mm
Table Size - W63"1,600.2 mm
Table Capacity22,000 lb9,979 kg
Table Indexing.001 Degree.001 Degree
Spindle Nose To Table Center27.6 - 90.627.6 - 90.6
Spindle Nose To Table Top0 - 78.70 - 78.7

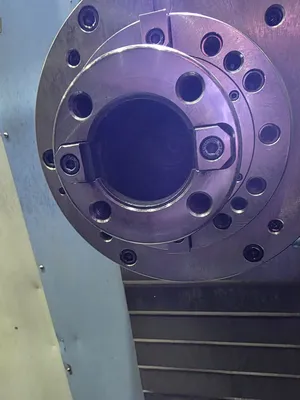

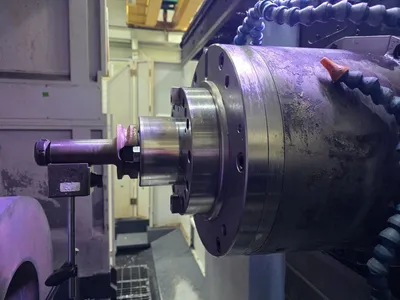

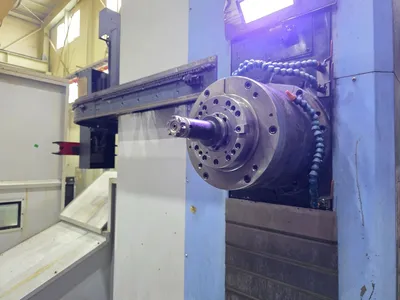

Spindle Diameter5.1"129.54 mm
Spindle Taper50.050.0
Spindle Speed2,500 RPM2,500 RPM
Number Of Ranges22
Main Motor35 hp26.1 kW
X - Axis Travel118.9"3,020.1 mm
Y - Axis Travel78.7"1,999 mm
Z - Axis Travel78.7"1,999 mm

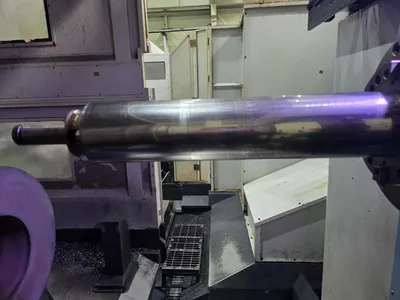

W - Axis Travel27.5"698.5 mm

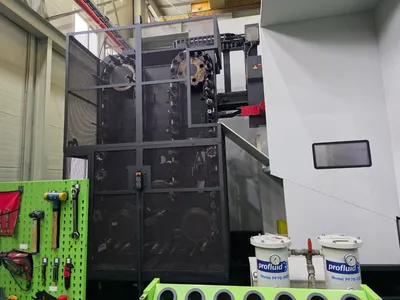

Automatic Tool Changer Capacity9090
Tool Diameter5.1", 9.8"5.1", 9.8"
Max Tool Length23.6"599.44 mm
Max Tool Weight66 lb29.9 kg
Machine Weight110,000 lb49,895.2 kg

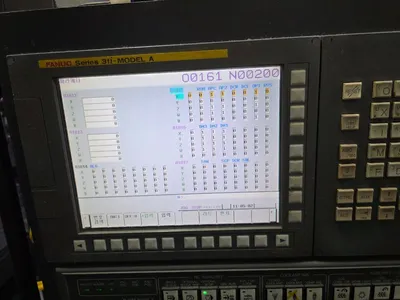

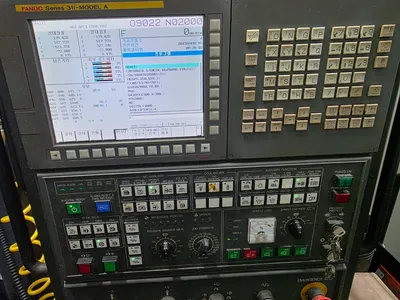

ControlCNC (FANUC 31I-A CNC COLOR CONTROL)CNC (FANUC 31I-A CNC COLOR CONTROL)

FANUC 31IA CNC COLOR CONTROL
RIGID TAPPING

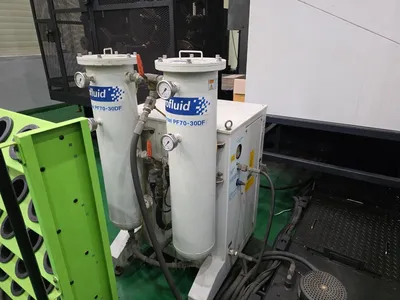

THRU SPINDLE COOLANT 1000 PSI
FULL COVER

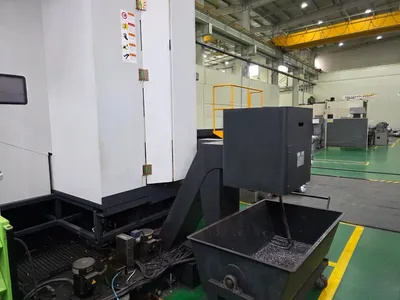

CHIP CONVEYOR
9.84" RISER BLOCK FOR COLUMN
SCALE FEEDBACK X, Y, Z AXIS
FULL COVER
FACTORY TWIN PALLET CHANGER
