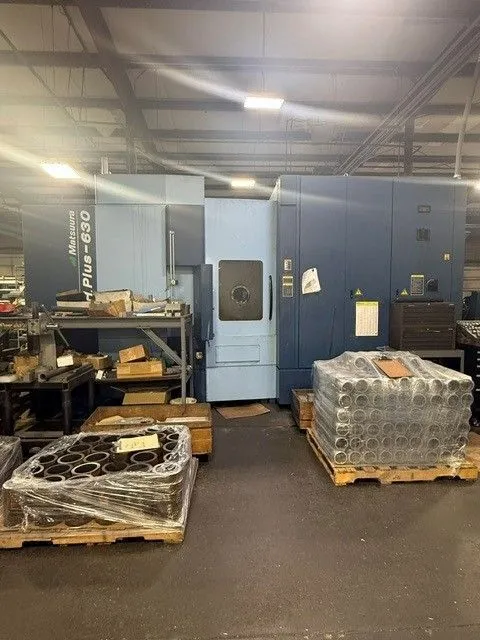

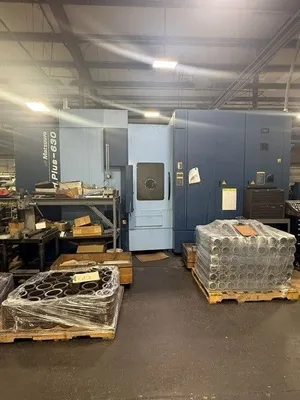

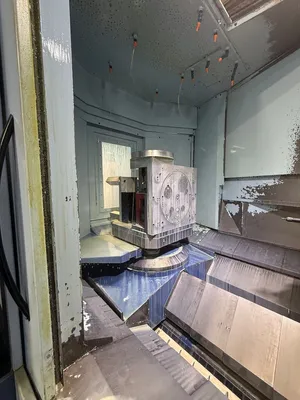

MATSUURA H-PLUS 630 4 AXIS CNC HORIZONTAL MACHINING CENTER

MATSUURA H-PLUS 630 4 AXIS CNC HORIZONTAL MACHINING CENTER

Have one to sell?
(847) 669 9781
mike@usedcncllc.com
ConditionUsed
1 available
Have one to sell?

Overview

Type:
Horizontal Machining Centers
Manufacturer:
MATSUURA
Model:
H-PLUS 630
Year:
2011
Stock #:
10226
Status:
For Sale
Serial #:
185
Pallet Size - L24.8"629.92 mm
Pallet Size - W24.8"629.92 mm
Number of Pallets22
Pallet Weight Capacity2,465 lb1,118.1 kg
X - AxisTravel41.33"1,049.8 mm
Y - Axis Travel36.22"919.99 mm
Z - Axis Travel38.97"989.84 mm
B - Axis Travel.001.001
Rapid Traverse Rate - X1,968 in/min.50 m/min.
Rapid Traverse Rate - Y1968 ipm
Rapid Traverse Rate - Z1968 ipm
Cutting Feed Rate1,968 in/sec.2,999.2 m/min.
Spindle Speed12,000 RPM12,000 RPM
Spindle Taper5050
Main Motor40 hp29.8 kW

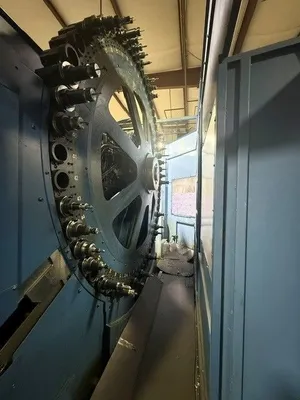

Automatic Tool Changer6060
Tool Diameter4.3", 12.9"4.3", 12.9"
Tool Length23.62"599.95 mm
Tool Weight44 lb20 kg
Tool Change Time2 sec.2 sec.
Machine Weight45,900 lb20,819.9 kg
ControlCNC (MATSUURA G - TECH 30I CNC FANUC BASED COLOR CONTROL)CNC (MATSUURA G - TECH 30I CNC FANUC BASED COLOR CONTROL)
Weight45000.0045000.00

MATSUURA / FANUC G-TECH 30I 4 AXIS CNC CONTROL
.001 N/C CONTOURING B-AXIS
SPINDLE CHILLER
CHIP CONVEYOR
SCALE FEEDBACK SYSTEM X, Y, Z AXIS
MANUAL GUIDE I
OVERHEAD COOLANT FLUSH
RIGID TAPPING
ROTARY CLEAR WINDOW
IZ - 1/15F
INTERNAL SPIRAL AUGARS
COOLANT THROUGH SPINDLE 800 PSI

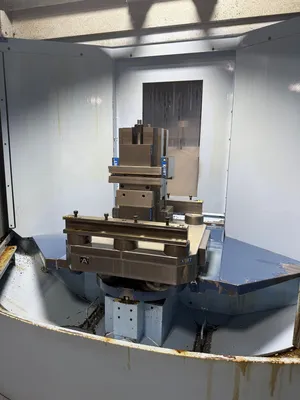

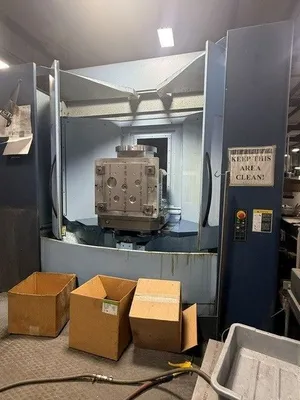

(2) KURT VICE TOWER TOMBSTONES
FULL COMPLIMENT OF CAT 50 HOLDERS
