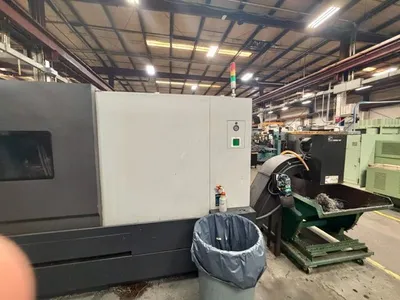

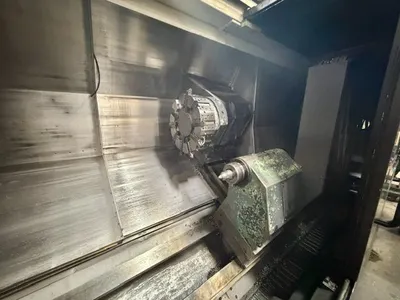

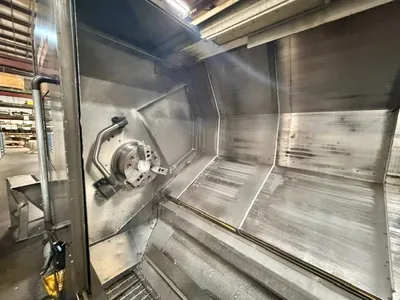

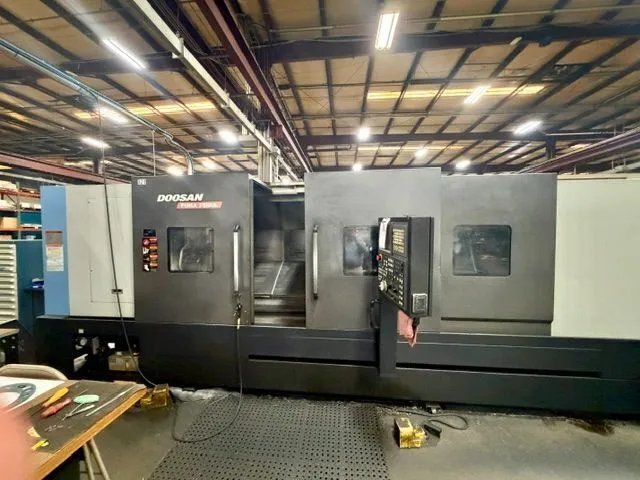

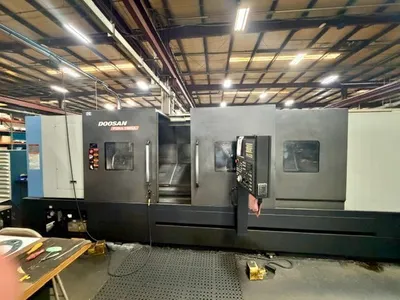

DOOSAN PUMA 3100UL CNC UNIVERSAL 2 AXIS LATHE

Name: Used CNC LLC
Address: 11926 Oak Creek Pkwy,, Huntley, IL, 60142, US

Have one to sell?

ConditionUsed

Quantity

1 available

Have one to sell?

Overview

Type:

Lathes CNC, 2-Axis & 3-Axis

Manufacturer:

Model:

PUMA 3100UL

Year:

2011

Stock #:

10227

Status:

For Sale

Serial #:

ML0122-000071

ImperialMetric

Swing Over Bed	33.5"	850.9 mm
Machining Length	124"	3,149.6 mm
Distance Between Centers	126"	3,200.4 mm
Turning Diameter, Shaft Diameter	20.7"	525.78 mm
Chuck Size 1	12"	304.8 mm
Spindle Nose 1	A2 - 11	A2 - 11
Spindle Bore Diameter 1	4.5"	114.3 mm
Spindle Bar Capacity 1	4"	101.6 mm
Spindle Speeds 1	3,000 RPM	3,000 RPM
Spindle Horsepower 1	30 hp	22.4 kW
X1 - Axis Travel	11.5"	292.1 mm
Z1 - Axis Travel	125.6"	3,190.2 mm
Rapid Traverse Rate - X1	1,181 in/min.	500 mm/sec.
Rapid Traverse Rate - Z1	1,181 in/min.	500 mm/sec.
Turret Configuration 1	10	10
Tailstock Quill Diameter	3.9"	99.06 mm
Tailstock Taper	MT 5	MT 5
Tailstock Quill Travel	3.9"	99.06 mm
Programmable Tailstock	YES	YES
Tailstock Travel	118"	2,997.2 mm
# Axis	2	2
Bar Capacity	4"	101.6 mm
Tailstock	'Yes'	'Yes'
Live Tooling	'No'	'No'
Sub Spindle	'No'	'No'
Control	CNC (DOOSAN FANUC SERIES I CNC CONTROL)	CNC (DOOSAN FANUC SERIES I CNC CONTROL)
Weight	17637.00	17637.00

DOOSAN FANUC SERIES I CNC CONTROL

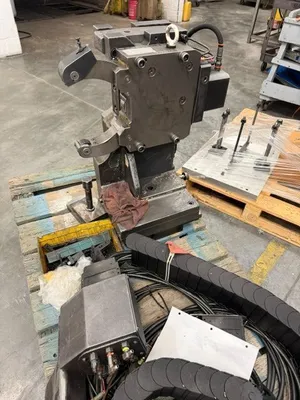

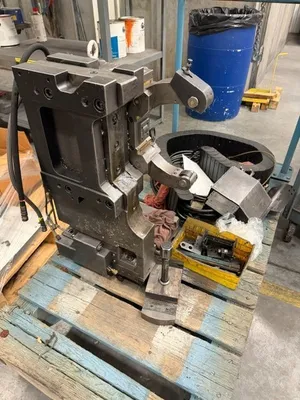

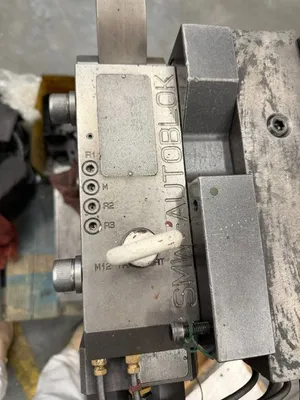

SMW HYDRUALIC STEADY REST MODEL SLU 3.2 ZS 1.9" - 7.87"
TOOL PRESETTER
CHIP CONVEYOR
