Equipment
Lathes CNC, Y-Axis \ Multi-Axis Tasking
Lathes CNC, Y-Axis / Multi Axis

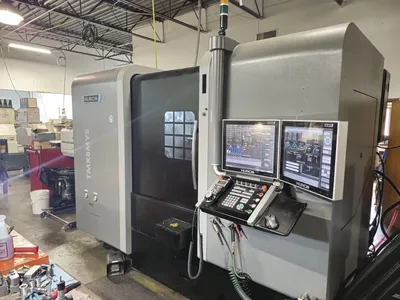

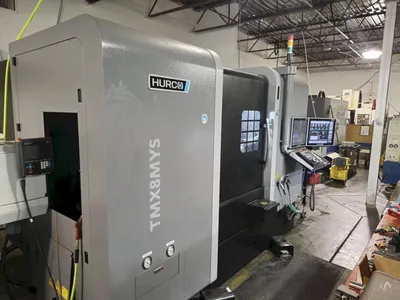

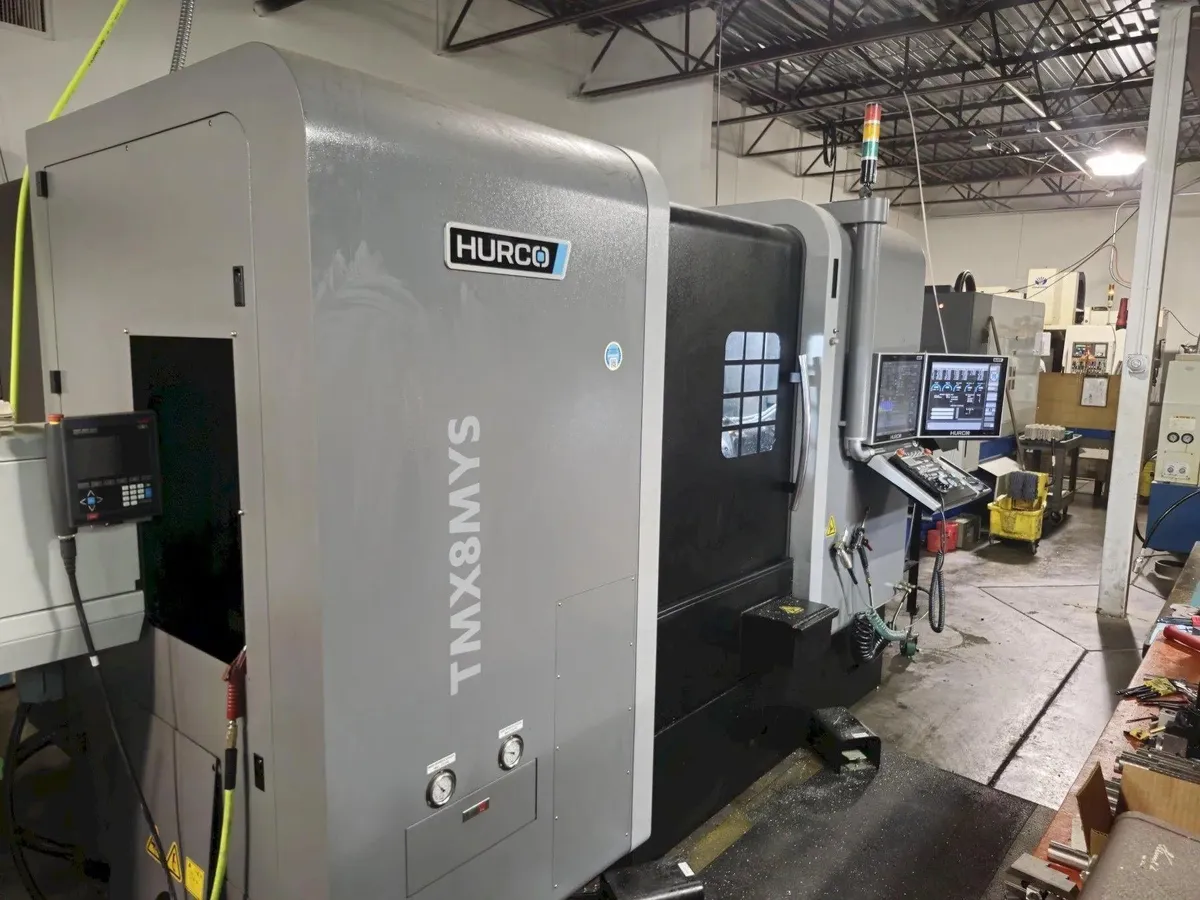

HURCO TMX8MYSI CNC MILL TURN MULTI TASKING CENTER LATE

HURCO TMX8MYSI CNC MILL TURN MULTI TASKING CENTER LATE

Have one to sell?
(847) 669 9781
mike@usedcncllc.com
ConditionUsed
1 available
Have one to sell?

Overview

Type:
Lathes CNC, Y-Axis / Multi Axis
Manufacturer:
HURCO
Model:
TMX8MYSI
Year:
2023
Stock #:
10228
Status:
For Sale

Description

HURCO TMX8MYSI CNC Mill Turn Center 2023, used. Features 22" swing over bed, dual spindles, Y-axis, live toolholders, chip conveyor, high-pressure coolant, barfeed, and manual. Ideal for complex precision tasks. Equipped with dual screen and pendant control.

Swing Over Bed22"558.8 mm
Turning Diameter13.22"335.79 mm
Turning Length22"558.8 mm
Distance Between Spindles28.5"723.9 mm
Chuck Size 18"203.2 mm
Spindle Nose 1A2 - 6A2 - 6
Spindle Bore Diameter 13.1"78.74 mm
Bar Capacity 12.6"66.04 mm
Spindle Speeds 15,000 RPM5,000 RPM
Spindle Horsepower 133 hp24.6 kW
Chuck Size 26"152.4 mm
Spindle Speeds 26,000 RPM6,000 RPM
Spindle Horsepower 220 hp14.9 kW
X1 - Axis Travel11.4"289.56 mm
Z1 - Axis Travel22"558.8 mm
Y1 - Axis Travel4.4"111.76 mm
C - Axis Indexing 10.000.00
C - Axis Indexing 20.000.00
W - Axis Travel Sub Spindle25.2"640.08 mm
Rapid Traverse Rate - X1945 ipm
Rapid Traverse Rate - Z11181 ipm
Rapid Traverse Rate - Y14.4 ipm
Turret Tool Positions 11265 station1265 station
Turret Rotary Tool Speeds 15,000 RPM5,000 RPM
Turret Rotary Tool Horse Power 18.4 hp6.3 kW
ControlCNC (HURCO DUAL SCREEN TECHNOLOGY)CNC (HURCO DUAL SCREEN TECHNOLOGY)
Weight0.000.00

Hurco Dual Screen Display
LNS Quick Load Servo Short Magazine Barfeed
All-digital drives and motors and absolute encoders on all linear axes
Hand Pendant Control
Live Toolholders - Axial & Radial
Chip Conveyor
Coolant System - High Pressure
Parts Catcher
Manuals
